Brief Introduction

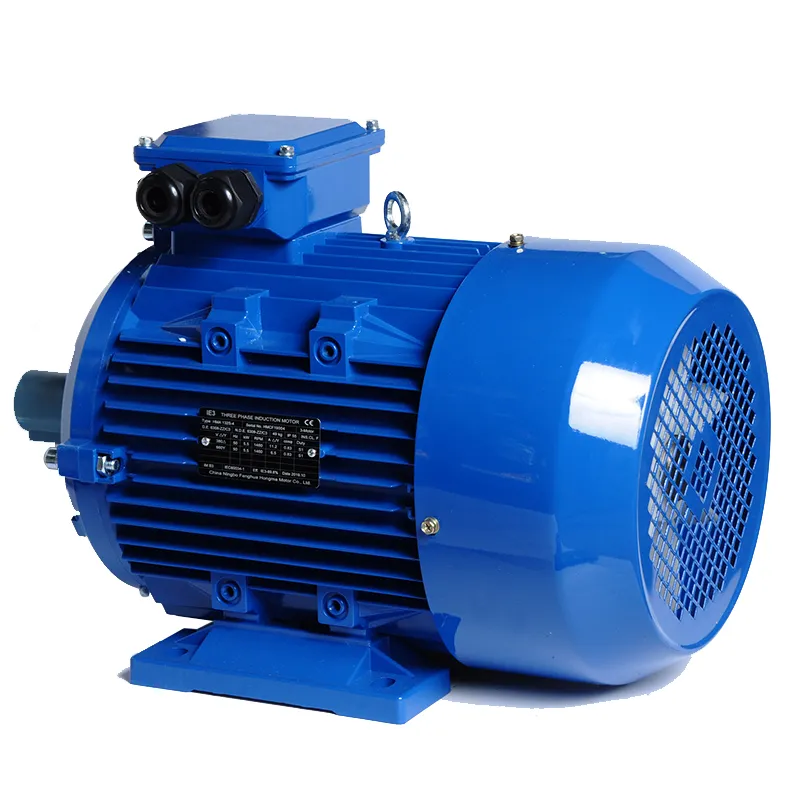

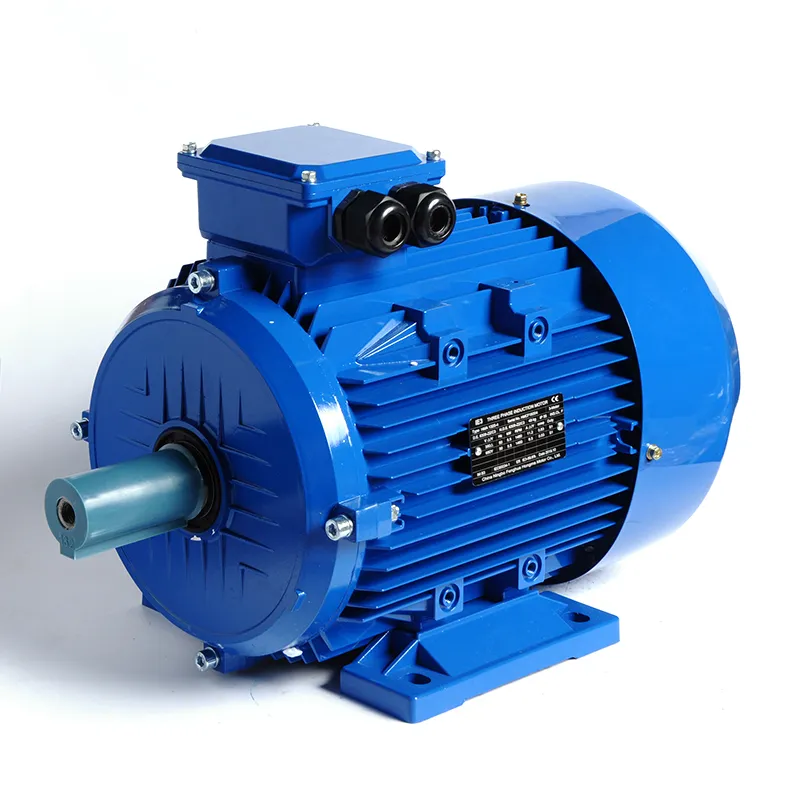

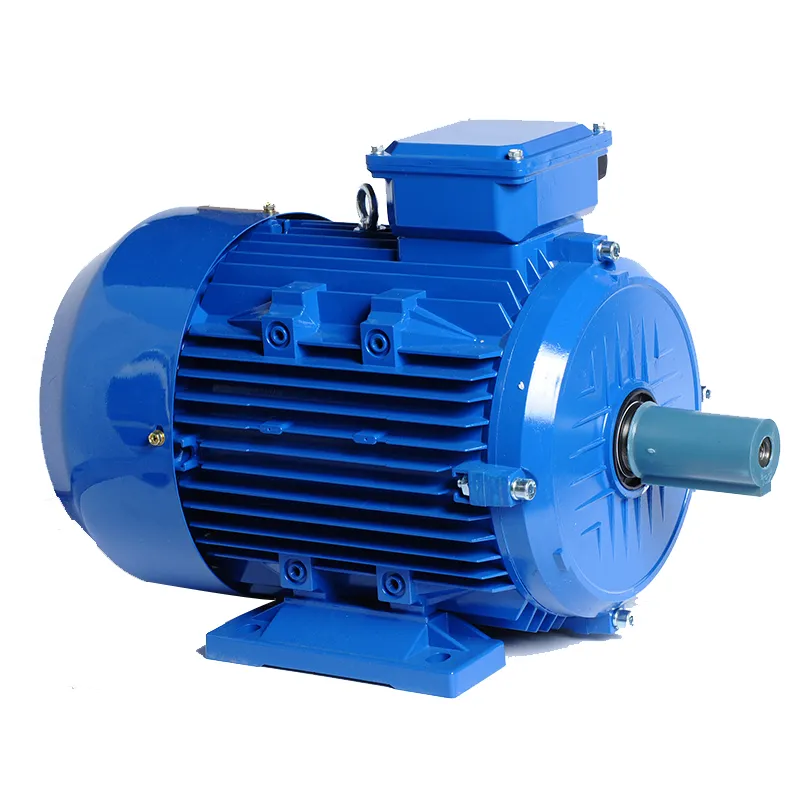

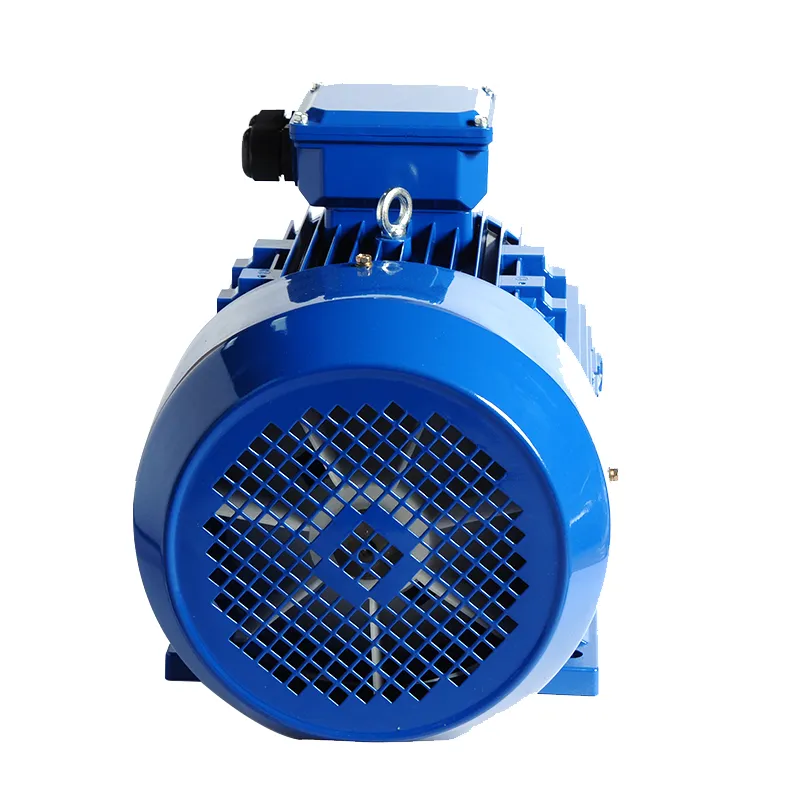

Y Series 15kW (20HP) Three Phase AC Induction Motor is a high-performance squirrel cage induction motor designed according to IEC standards. It features a robust cast-iron housing, totally enclosed fan-cooled (TEFC) structure, and reliable operation for various industrial applications.

This motor offers excellent performance, including high efficiency, energy saving, strong starting torque, low noise, low vibration, stable operation, and easy maintenance. The optimized design ensures reliable performance and long service life even under demanding working conditions.

Y Series three-phase induction motors are widely used to drive pumps, fans, compressors, machine tools, conveyors, and other industrial equipment. With standardized dimensions and convenient installation, they provide an ideal solution for industrial power transmission applications.

Rated Output Power	15KW/20HP
Rated Torque	3000 RPM
Rated Voltage	220/380v, 230/400V, 380V/660V, 400/690V, 220/440V, 230/460V or Customized
Rated Frequency	50Hz, 60Hz or 50/60Hz
Duty Type	S1 Continuous
Insulation Class	F or H
Protection Class	IP54 or IP55
Cooling Method	IC411
Ambient Temperature	-15~40℃
Altitude	Up to 1000m Above Sea Level
Colour	Black, Blue, Grey

Technical Data

Type	Rated Output		Rated Speed rpm	Efficiency (%)	Efficiency at 75% load	Efficiency at 50% load	Power factor cosφ	Rated current (A)			Rated Torque (N.m)	Ts/Tn	Tmax/Tn	Is/In	ALU Weight (kg)	C/I Weight (kg)
	kW	Hp						380V	400V	415V
HM1-160M2-2	15	20	2930	88.7	88.7	86.9	0.89	28.9	24.4	26.4	48.9	2.2	2.3	7.5	82	114

Frame Size

Mounting Dimensions

Overall Dimensions

160M

254

210

108

110

160

M16x36

350

300

250

4-Φ19

315

330

260

420

605
