Beskrivning
HM2 (4POL 1500OMS) Parameter TEKNISKA DATA
HM2 (6POL 1000OMS) Parameter TEKNISKA DATA
HMI1/HMI2 parametrar UTLINE DIMENSION-B3, B5 och B35
HMI1/HMI2 parametrar UTLINE DIMENSION-B3, B5 och B35

Kontakta oss

+86-136-8583-1788

[email protected]

Beskrivning

HM2 (4POL 1500OMS) Parameter TEKNISKA DATA

TYP		Utmatning	Hastighet	Effektivitet	Ström fabrik	Nominell ström			Ts/Tn	Tmax/Tn	Är/ligger i n	Aluminium	C\/I
TYP		(kW)	(rpm)	(%)	Cosφ	380V	400V	415V	Ts/Tn	Tmax/Tn	Är/ligger i n	(kg)	(kg)
HM2	802-4	0.75	1428	79.6	0.76	1.9	1.8	1.7	1.7	2.4	2.9	10.5	17
HM2	90S-4	1.1	1431	81.4	0.77	2.7	2.5	2.4	2.4	3	3.5	15	21
HM2	90L-4	1.5	1438	82.8	0.79	3.5	3.3	3.2	3.2	3.2	3.8	17.5	25
HM2	100L1-4	2.2	1441	84.3	0.81	4.9	4.7	4.5	4.5	3	3.5	24	33
HM2	100L2-4	3	1429	85.5	0.82	6.5	6.2	6.0	6.0	2.6	3.3	25	36
HM2	112M-4	4	1444	86.6	0.82	8.6	8.1	7.8	7.8	3.5	4	32	47
HM2	132S-4	5.5	1456	87.7	0.83	11.5	10.9	10.5	10.5	2.2	2.8	46	66
HM2	132M-4	7.5	1455	88.7	0.84	15.3	14.5	14.0	14.0	2.4	3	54	76
HM2	160M-4	11	1470	89.8	0.84	22.2	21.0	20.3	20.3	2.5	2.9	77	118
HM2	160L-4	15	1470	90.6	0.85	29.6	28.1	27.1	27.1	2.5	3	90	143
HM2	180M-4	18.5	1475	91.2	0.86	35.8	34.0	32.8	2.6	3.1	7.8		178
HM2	180L-4	22	1475	91.6	0.86	42.4	40.3	38.9	2.6	3.1	7.5		193
HM2	200L-4	30	1480	92.3	0.86	57.4	54.6	52.6	2.4	2.9	7.1		250
HM2	225S-4	37	1485	92.7	0.87	69.7	66.2	63.8	2.5	2.7	7.5		310
HM2	225M-4	45	1485	93.1	0.87	84.4	80.2	77.3	2.5	2.8	7.6		347
HM2	250M-4	55	1480	93.5	0.87	102.7	97.6	94.1	2.6	2.7	7.3		429
HM2	280S-4	75	1485	94	0.87	139.3	132.4	127.6	2.7	2.7	7.6		578
HM2	280M-4	90	1489	94.2	0.87	166.9	158.5	152.8	2.7	2.7	7.5		649
HM2	315S-4	110	1492	94.5	0.88	201.0	190.9	184.0	2.7	2.9	7.1		990
HM2	315M-4	132	1486	94.7	0.88	240.7	228.6	220.4	2.7	2.9	7.3		1100
HM2	315L1-4	160	1486	94.9	0.89	287.8	273.4	263.6	3	3	7.4		1177
HM2	315L2-4	200	1487	95.1	0.89	359.0	341.1	328.7	3	3	7.6		1254
HM2	355M-4	250	1485	95.1	0.90	443.8	421.6	406.4	2.8	2.9	7.5		1936
HM2	355L-4	315	1490	95.1	0.90	559.2	531.2	512.0	2.6	2.8	7.4		2112

HM2 (6POL 1000OMS) Parameter TEKNISKA DATA

TYP		Utmatning	Hastighet	Effektivitet	Ström fabrik	Nominell ström			Ts/Tn	Tmax/Tn	Är/ligger i n	Aluminium	C\/I
TYP		(kW)	(rpm)	(%)	COSO	380V	400V	415V	Ts/Tn	Tmax/Tn	Är/ligger i n	(kg)	(kg)
HM2	90S-6	0.75	944	75.9	0.72	2.1	2.0	1.9	2.2	2.4	4.5	13.5	22
HM2	90L-6	1.1	928	78.1	0.73	2.9	2.8	2.7	2.4	2.6	4.5	18	26
HM2	100L-6	1.5	939	79.8	0.75	3.8	3.6	3.5	1.8	2.2	4.2	22.5	32
HM2	112M-6	2.2	936	81.8	0.76	5.4	5.1	4.9	2.3	2.8	4.5	27	41
HM2	132S-6	3	960	83.3	0.76	7.2	6.8	6.6	1.8	2.4	4.5	38.5	58
HM2	132M1-6	4	957	84.6	0.76	9.5	9.0	8.7	2.3	2.7	5	44.5	70
HM2	132M2-6	5.5	962	86	0.77	12.6	12.0	11.6	1.9	2.8	5.5	52.5	79
HM2	160M-6	7.5	975	87.2	0.77	17.0	16.1	15.5	2	3	6.5	77	107
HM2	160L-6	11	975	88.7	0.78	24.2	22.9	22.1	2.4	3.3	7.5	90	139
HM2	180L-6	15	975	89.7	0.81	31.4	29.8	28.7	2	2.7	6.4		183
HM2	200L1-6	18.5	985	90.4	0.81	38.4	36.5	35.1	2.3	3	7		226
HM2	200L2-6	22	980	90.9	0.83	44.3	42.1	40.6	2.3	2.8	7		242
HM2	225M-6	30	985	91.7	0.84	59.2	56.2	54.2	2.2	2.7	6.5		319
HM2	250M-6	37	985	92.2	0.86	70.9	67.4	64.9	2.5	2.7	6.9		407
HM2	280S-6	45	990	92.7	0.86	85.8	81.5	78.5	2.2	2.4	7		539
HM2	280M-6	55	994	93.1	0.86	104.4	99.2	95.6	2.4	2.5	7.1		594
HM2	315S-6	75	992	93.7	0.86	141.4	134.3	129.5	2.8	3	7.3		935
HM2	315M-6	90	991	94	0.86	169.2	160.7	154.9	2.7	2.9	7.1		1056
HM2	315L1-6	110	991	94.3	0.86	206.1	195.8	188.7	2.9	2.9	7.4		1166
HM2	315L2-6	132	990	94.6	0.87	243.7	231.5	223.1	3	3.1	7.6		1232
HM2	355M1-6	160	990	94.8	0.88	291.4	276.8	266.8	3.1	3.1	7.6		1848
HM2	355M3-6	200	991	95	0.88	363.5	345.3	332.8	3	3	7.8		1958
HM2	355L2-6	250	992	95.0	0.88	454.4	431.6	416.0	3.1	3	7.7		2145

HMI1/HMI2 parametrar UTLINE DIMENSION-B3, B5 och B35


Energieffektivitetsindex		Ramstorlek	Monteringsdimensioner															Totala mått
													B5					Totala mått
			A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	Ab	AC	AD	HD	L
HMI1	HMI2	80m	125	100	50	19	40	6	15.5	80	10	M6×16	200	165	130	4-Φ12	3.5	152	153	122	202	290
HMI1	HMI2	90s	140	100	56	24	50	8	20	90	10	M8×19	200	165	130	4-Φ12	3.5	168	172	135	225	315
HMI1	HMI2	90L	140	125	56	24	50	8	20	90	10	M8×19	200	165	130	4-Φ12	3.5	168	172	135	225	340
HMI1	HMI2	100L	160	140	63	28	60	8	24	100	12	M10×22	250	215	180	4-Φ15	4	192	193	145	245	370
HMI1	HMI2	112 m	190	140	70	28	60	8	24	112	12	M10×22	250	215	180	4-Φ15	4	222	223	165	277	395
HMI1	HMI2	132S	216	140	89	38	80	10	33	132	12	M12×28	300	265	230	4-Φ15	4	248	265	208	340	470
HMI1	HMI2	132M	216	178	89	38	80	10	33	132	12	M12×28	300	265	230	4-Φ15	4	248	265	208	340	500
HMI1	HMI2	160M	254	210	108	42	110	12	37	160	15	M16×36	350	300	250	4-Φ19	5	315	330	260	420	605
HMI1	HMI2	160L	254	254	108	42	110	12	37	160	15	M16×36	350	300	250	4-Φ19	5	315	330	260	420	680
HMI1	HMI2	180M	279	241	121	48	110	14	42.5	180	15	M16×36	350	300	250	4-Φ19	5	350	352	265	445	694
HMI1	HMI2	180L	279	279	121	48	110	14	42.5	180	15	M16×36	350	300	250	4-Φ19	5	350	352	265	445	732
HMI1	HMI2	200L	318	305	133	55	110	16	49	200	19	M20×42	400	350	300	4-Φ19	5	390	394	315	515	774
HMI1	HMI2	225S(4-8P)	356	286	149	60	140	18	53	225	19	M20×42	450	400	350	8-Φ19	5	435	442	335	560	820
HMI1	HMI2	225M(2P)	356	311	149	55	110	16	49	225	19	M20×42	450	400	350	8-Φ19	5	435	442	335	560	813
HMI1	HMI2	225M(4-8P)	356	311	149	60	140	18	53	225	19	M20×42	450	400	350	8-Φ19	5	435	442	335	560	873
HMI1	HMI2	250M(2P)	406	349	168	60	140	18	53	250	24	M20×42	550	500	450	8-Φ19	5	490	481	375	625	922
HMI1	HMI2	250M(4-8P)	406	349	168	65	140	18	58	250	24	M20×42	550	500	450	8-Φ19	5	490	481	375	625	922
HMI1	HMI2	280S(2P)	457	368	190	65	140	18	58	280	24	M20×42	550	500	450	8-Φ19	5	547	550	400	680	991
HMI1	HMI2	280M(2P)	457	419	190	65	140	18	58	280	24	M20×42	550	500	450	8-Φ19	5	547	550	400	680	1040
HMI1	HMI2	280S(4-8P)	457	368	190	75	140	20	67.5	280	24	M20×42	550	500	450	8-Φ19	5	547	550	400	680	991
HMI1	HMI2	280M(4-8P)	457	419	190	75	140	20	67.5	280	24	M20×42	550	500	450	8-Φ19	5	547	550	400	680	1040
HMI1	HMI2	315S(2P)	508	406	216	65	140	18	58	315	28	M20×42	660	600	550	8-Φ24	6	630	600	540	855	1160
HMI1	HMI2	315M(2P)	508	457	216	65	140	18	58	315	28	M20×42	660	600	550	8-Φ24	6	630	600	540	855	1270
HMI1	HMI2	315L(2P)	508	508	216	65	140	18	58	315	28	M20×42	660	600	550	8-Φ24	6	630	600	540	855	1270
HMI1	HMI2	315S(4-10P)	508	406	216	80	170	22	71	315	28	M20×42	660	600	550	8-Φ24	6	630	600	540	855	1190
HMI1	HMI2	315M(4-10P)	508	457	216	80	170	22	71	315	28	M20×42	660	600	550	8-Φ24	6	630	600	540	855	1300
HMI1	HMI2	315L(4-10P)	508	508	216	80	170	22	71	315	28	M20×42	660	600	550	8-Φ24	6	630	600	540	855	1300
HMI1	HMI2	355M(2P)	610	560	254	75	140	20	67.5	355	28	M20×42	800	740	680	8-Φ24	6	730	710	655	1010	1500
HMI1	HMI2	355L(2P)	610	630	254	75	140	20	67.5	355	28	M20×42	800	740	680	8-Φ24	6	730	710	655	1010	1500
HMI1	HMI2	355M(4-10P)	610	560	254	95	170	25	86	355	28	M20×42	800	740	680	8-Φ24	6	730	710	655	1010	1530
HMI1	HMI2	355L(4-10P)	610	630	254	95	170	25	86	355	28	M20×42	800	740	680	8-Φ24	6	730	710	655	1010	1530
HMI1		400-2P	686	710	280	80	170	22	71	400	35	M24×42	1000	940	880	8-Φ28	6	810	850	690	1090	1850
HMI1		400-4,6,8,10P	686	710	280	110	210	28	100	400	35	M24×42	1000	940	880	8-Φ28	6	810	850	690	1090	1925

HMI1/HMI2 parametrar UTLINE DIMENSION-B3, B5 och B35


Energieffektivitetsindex		Ramstorlek	Monteringsdimensioner										B5					Totala mått
Energieffektivitetsindex		Ramstorlek	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	Ab	AC	AD	HD	L
HMA1		56	90	71	36	9	20	3	7.2	56	5.8	M4×12	120	100	80	7	3	110	111	89	145	197
HMA1		63	100	80	40	11	23	4	8.5	63	7	M4×12	140	115	95	10	3	120	120	107	170	212
HMA1		71	112	90	45	14	30	5	11	71	7	M5×12	160	130	110	10	3.5	132	133	114	185	240
HMA1	HMA2	80	125	100	50	19	40	6	15.5	80	10	M6×16	200	165	130	12	3.5	152	153	122	202	290
HMA1	HMA2	90s	140	100	56	24	50	8	20	90	10	M8×19	200	165	130	12	3.5	168	172	135	225	315
HMA1	HMA2	90L	140	125	56	24	50	8	20	90	10	M8×19	200	165	130	12	3.5	168	172	135	225	340
HMA1	HMA2	100L	160	140	63	28	60	8	24	100	12	M10×22	250	215	180	15	4	192	193	145	245	370
HMA1	HMA2	112 m	190	140	70	28	60	8	24	112	12	M10×22	250	215	180	15	4	222	223	165	277	395
HMA1	HMA2	132S	216	140	89	38	80	10	33	132	12	M12×28	300	265	230	15	4	248	255	187	319	470
HMA1	HMA2	132M	216	178	89	38	80	10	33	132	12	M12×28	300	265	230	15	4	248	255	187	319	500
HMA1	HMA2	160M	254	210	108	42	110	12	37	160	15	M16×36	350	300	250	19	5	315	330	255	415	605
HMA1	HMA2	160L	254	254	108	42	110	12	37	160	15	M16×36	350	300	250	19	5	315	330	255	415	680

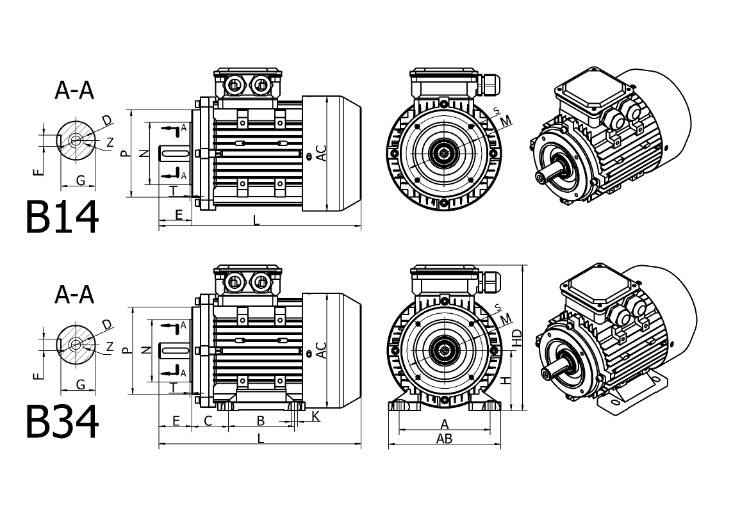

Installationsdimensionerna för motorserien HMA1/HMA2 är UTLINE DIMENSIONS -B14 och B34


Energieffektivitetsindex		Ramstorlek	Monteringsdimensioner										B14-A					B14-B					Totala mått
Energieffektivitetsindex		Ramstorlek	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	P	M	N	S	T	Ab	AC	AD	HD	L
HMA1		56	90	71	36	9	20	3	7.2	56	5.8	M4×12	80	65	50	4-M5	2.5	105	85	70	M6	2.5	110	111	89	145	197
HMA1		63	100	80	40	11	23	4	8.5	63	7	M4×12	90	75	60	4-M5	2.5	120	100	80	M6	3	120	120	107	170	212
HMA1		71	112	90	45	14	30	5	11	71	7	M5×12	105	85	70	4-M6	2.5	140	115	95	M8	3	132	133	114	185	240
HMA1	HMA2	80	125	100	50	19	40	6	15.5	80	10	M6×16	120	100	80	4-M6	3	160	130	110	M8	3.5	152	153	122	202	290
HMA1	HMA2	90s	140	100	56	24	50	8	20	90	10	M8×19	140	115	95	4-M8	3	160	130	110	M8	3.5	168	172	135	225	315
HMA1	HMA2	90L	140	125	56	24	50	8	20	90	10	M8×19	140	115	95	4-M8	3	160	130	110	M8	3.5	168	172	135	225	340
HMA1	HMA2	100L	160	140	63	28	60	8	24	100	12	M10×22	160	130	110	4-M8	3.5	200	165	130	M10	3.5	192	193	145	245	370
HMA1	HMA2	112 m	190	140	70	28	60	8	24	112	12	M10×22	160	130	110	4-M8	3.5	200	165	130	M10	3.5	222	223	165	277	395
HMA1	HMA2	132S	216	140	89	38	80	10	33	132	12	M12×28	200	165	130	4-M10	3.5	250	215	180	M12	4	248	255	187	319	470
HMA1	HMA2	132M	216	178	89	38	80	10	33	132	12	M12×28	200	165	130	4-M10	3.5	250	215	180	M12	4	248	255	187	319	500
HMA1	HMA2	160M	254	210	108	42	110	12	37	160	15	M16×36	250	215	180	4-M12	4	300	265	230	M12	4	315	330	255	415	605
HMA1	HMA2	160L	254	254	108	42	110	12	37	160	15	M16×36	250	215	180	4-M12	4	300	265	230	M12	4	315	330	255	415	680
