Description

Reviews

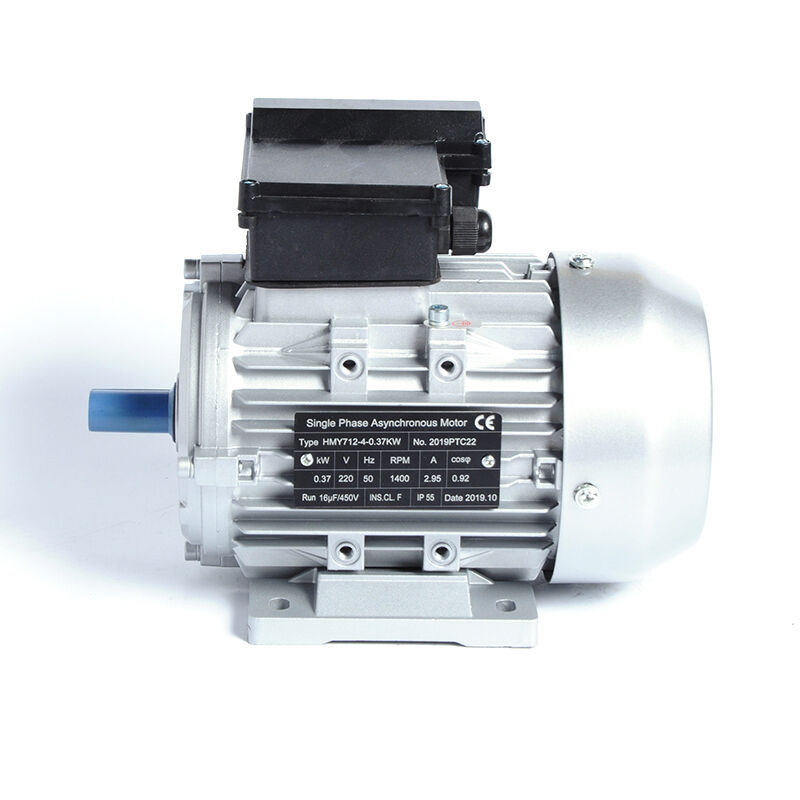

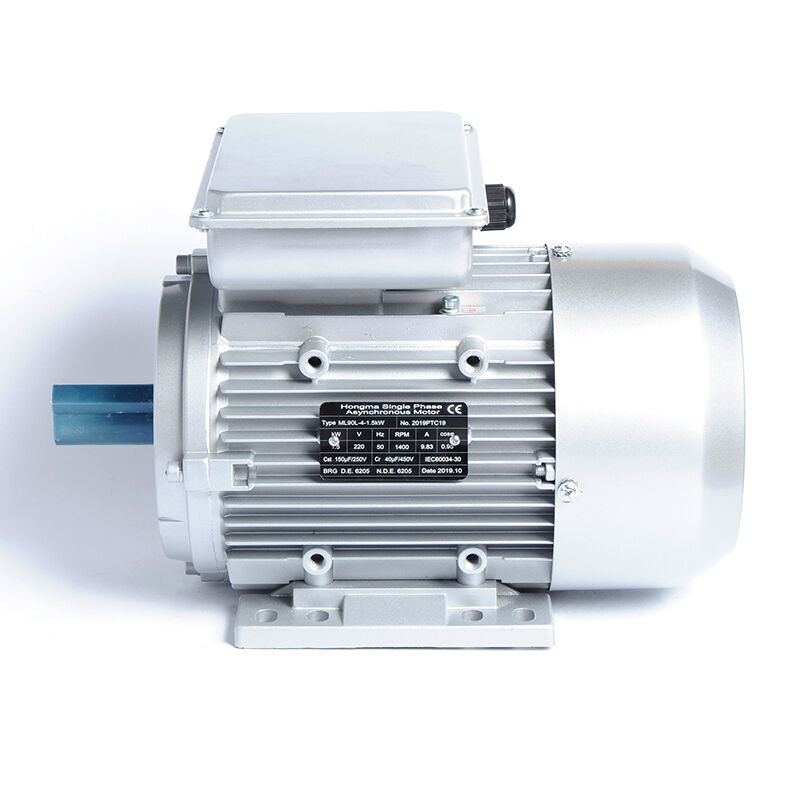

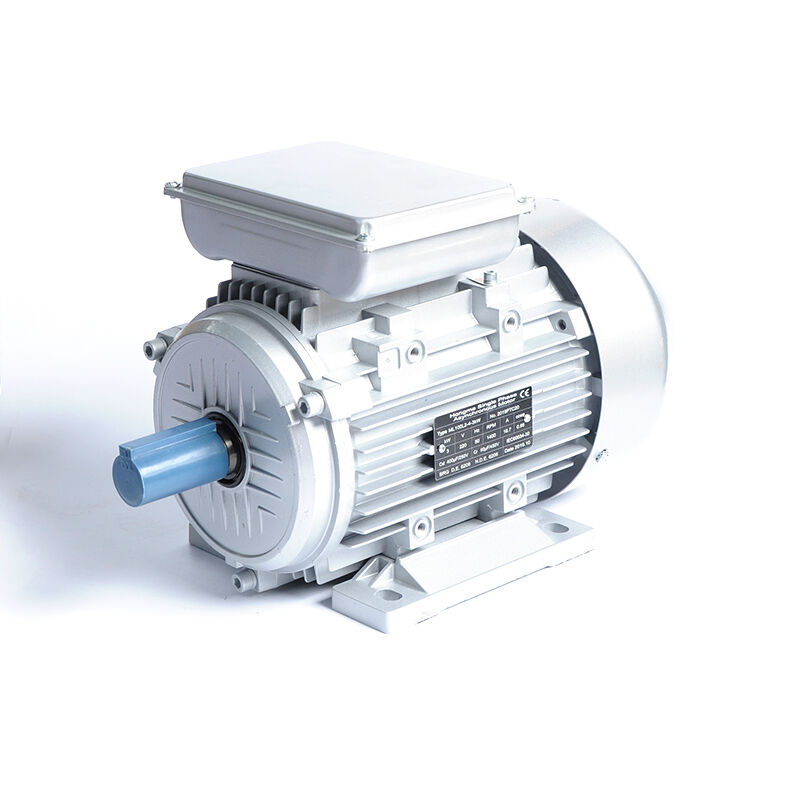

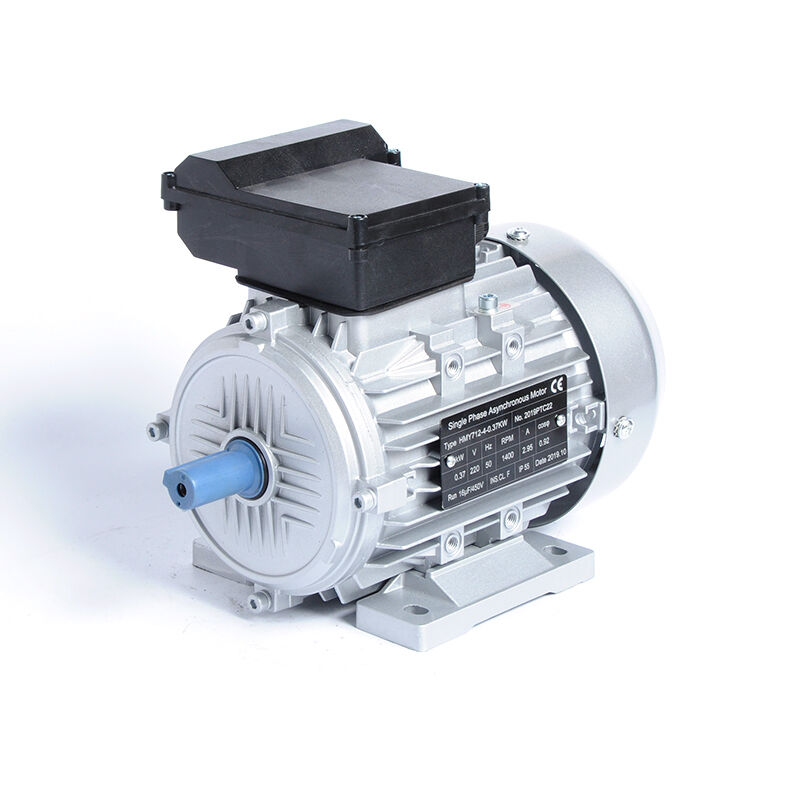

HMY Series single-phase capacitor run electric motor, its most major characteristic is time the fixed movement strength can the target be fine, with passes the capacity other single-phase asynchronous motorsto compare, its weight is light, the volume to be small, the efficiency and the power factor is high. It is suitable especially for the under loading starting and the request long-term movement situation, like household appliances, fan, pump, medical equipment and so on.

Rated Output Power	0.18KW-7.5KW
Rated Torque	1400RPM 2800RPM
Rated Voltage	220V 230V 240V
Rated Frequency	50Hz or 60Hz
Duty Type	S1 Continuous
Insulation Class	F
Protection Class	IP54 or IP55
Cooling Method	IC411
Ambient Temperature	-15~40°C
Altitude	Up to 1000m Above Sea Level

HMU/YU(BO2) TECHNICAL DATA

Type		At full load
		Output	Speed	Current			Efficiency	Power factor	Is/ln	Ts/Tn	Tmax/Tn	dB(A)
		W	r/min	220V	230V	240V	n%	CosΦ	Is/ln	Ts/Tn	Tmax/Tn	dB(A)
HMU/YU	7112	180	2800	1.89	1.81	1.74	60	0.72	17	1.3	1.8	70
HMU/YU	7122	250	2800	2.40	2.30	2.20	64	0.74	22	1.1	1.8	70
HMU/YU	8012	370	2800	3.36	3.21	3.08	65	0.77	30	1.1	1.8	75
HMU/YU	8022	550	2800	4.65	4.45	4.27	68	0.79	42	1	1.8	75
HMU/YU	90S-2	750	2800	6.09	5.82	5.58	70	0.8	55	0.8	1.8	75
HMU/YU	90L-2	1100	2800	8.68	8.30	7.96	72	0.8	99	0.8	1.8	78
HMU/YU	7114	120	1400	1.88	1.80	1.72	50	0.58	14	1.5	1.8	65
HMU/YU	7124	180	1400	2.49	2.38	2.28	53	0.62	17	1.4	1.8	65
HMU/YU	8014	250	1400	3.11	2.97	2.85	58	0.63	22	1.2	1.8	65
HMU/YU	8024	370	1400	4.24	4.05	3.89	62	0.64	30	1.2	1.8	70
HMU/YU	90S-4	550	1400	5.49	5.25	5.03	66	0.69	42	1	1.8	70
HMU/YU	90L-4	750	1400	6.87	6.57	6.30	68	0.73	55	1	1.8	70

HMU/YU(CO2) TECHNICAL DATA

Type		At full load
		Output	Speed	Current			Efficiency	Power factor	Is/ln	Ts/Tn	Tmax/Tn	dB(A)
		W	r/min	220V	230V	240V	η%	Coso	Is/ln	Ts/Tn	Tmax/Tn	dB(A)
HMC/YC	7112	180	2800	1.89	1.81	1.74	60	0.72	12	3	1.8	70
HMC/YC	7122	250	2800	2.40	2.30	2.20	64	0.74	15	3	1.8	70
HMC/YC	8012	370	2800	3.36	3.21	3.08	65	0.77	21	2.8	1.8	75
HMC/YC	8022	550	2800	4.65	4.45	4.27	68	0.79	29	2.8	1.8	75
HMC/YC	90S2	750	2800	6.09	5.82	5.58	70	0.8	37	2.5	1.8	75
HMC/YC	90L-2	1100	2800	8.68	8.30	7.96	72	0.8	60	2.5	1.8	78
HMC/YC	100L1-2	1500	2800	11.38	10.88	10.43	74	0.81	80	2.5	1.8	83
HMC/YC	100L2-2	2200	2800	16.46	15.75	15.09	75	0.81	120	2.2	1.8	83
HMC/YC	112M-2	3000	2800	21.88	20.93	20.06	76	0.82	150	2.2	1.8	87
HMC/YC	7114	120	1400	1.88	1.80	1.72	50	0.58	9	3	1.8	65
HMC/YC	7124	180	1400	2.49	2.38	2.28	53	0.62	12	2.8	1.8	65
HMC/YC	8014	250	1400	3.11	2.97	2.85	58	0.63	15	2.8	1.8	65
HMC/YC	8024	370	1400	4.24	4.05	3.89	62	0.64	21	2.5	1.8	70
HMC/YC	90S-4	550	1400	5.49	5.25	5.03	66	0.69	29	2.5	1.8	70
HMC/YC	90L-4	750	1400	6.87	6.57	6.30	68	0.73	37	2.5	1.8	70
HMC/YC	100L1-4	1100	1400	9.52	9.10	8.72	71	0.74	60	2.5	1.8	73
HMC/YC	100L2-4	1500	1400	12.45	11.91	11.42	73	0.75	80	2.5	1.8	78
HMC/YC	112M-4	2200	1400	17.78	17.01	16.30	74	0.76	120	2.2	1.8	78

HMY/YY(DO2) TECHNICAL DATA

Type		At full load
		Output	Speed	Current			Efficiency	Power factor	Is/ln	Ts/Tn	Tmax/Tn	dB(A)
		W	r/min	220V	230V	240V	n%	CosΦ	Is/ln	Ts/Tn	Tmax/Tn	dB(A)
HMY/YY	5612	90	2800	0.79	0.76	0.73	56	0.92	2.5	0.5	1.7	70
HMY/YY	5622	120	2800	0.99	0.95	0.91	60	0.92	3.5	0.5	1.7	70
HMY/YY	6312	180	2800	1.37	1.31	1.25	65	0.92	5	0.4	1.7	70
HMY/YY	6322	250	2800	1.87	1.79	1.72	66	0.92	7	0.4	1.7	70
HMY/YY	7112	370	2800	2.73	2.61	2.50	67	0.92	10	0.35	1.7	75
HMY/YY	7122	550	2800	3.88	3.71	3.56	70	0.92	15	0.35	1.7	75
HMY/YY	8012	750	2800	5.15	4.92	4.72	72	0.92	20	0.33	1.7	75
HMY/YY	8022	1100	2800	7.02	6.71	6.43	75	0.95	30	0.33	1.7	78
HMY/YY	90S-2	1500	2800	9.44	9.03	8.66	76	0.95	45	0.3	1.7	83
HMY/YY	90L-2	2200	2800	13.67	13.08	12.53	77	0.95	65	0.3	1.7	83
HMY/YY	5614	60	1400	0.61	0.58	0.56	50	0.9	2	0.45	1.7	65
HMY/YY	5624	90	1400	0.87	0.84	0.80	52	0.9	2.5	0.45	1.7	65
HMY/YY	6314	120	1400	1.06	1.02	0.97	57	0.9	3.5	0.4	1.7	65
HMY/YY	6324	180	1400	1.54	1.47	1.41	59	0.9	5	0.4	1.7	65
HMY/YY	7114	250	1400	2.02	1.94	1.86	61	0.92	7	0.35	1.7	65
HMY/YY	7124	370	1400	2.95	2.82	2.70	62	0.92	10	0.35	1.7	70
HMY/YY	8014	550	1400	4.25	4.06	3.89	64	0.92	15	0.35	1.7	70
HMY/YY	8024	750	1400	5.45	5.21	5.00	68	0.92	20	0.32	1.7	70
HMY/YY	90S-4	1100	1400	7.41	7.09	6.80	71	0.95	30	0.32	1.7	73
HMY/YY	90L-4	1500	1400	9.83	9.40	9.01	73	0.95	45	0.3	1.7	78
HMY/YY	7116	120	900	1.14	1.09	1.05	53	0.9	3.5	0.35	1.7	62
HMY/YY	7126	180	900	1.65	1.58	1.52	55	0.9	5	0.35	1.7	62
HMY/YY	8016	250	900	2.17	2.07	1.99	57	0.92	7	0.32	1.7	62
HMY/YY	8026	370	900	3.15	3.01	2.89	58	0.92	10	0.32	1.7	67
HMY/YY	90S-6	550	900	4.38	4.19	4.02	62	0.92	15	0.32	1.7	67
HMY/YY	90L-6	750	900	5.70	5.45	5.23	65	0.92	20	0.3	1.7	67

HML/YL TECHNICAL DATA

Type		At full load
		Output	Speed	Current			Efficiency	Power factor	Is/In	Ts/Tn	Tmax/Tn	dB(A)
		W	r/min	220V	230V	240V	7%	CosΦ	Is/In	Ts/Tn	Tmax/Tn	dB(A)
HML/YL	7112	370	2800	2.73	2.61	2.50	67	0.92	5.5	1.8	1.6	73
HML/YL	7122	550	2800	3.88	3.71	3.56	70	0.92	5.5	1.8	1.6	73
HML/YL	8012	750	2800	4.98	4.77	4.57	72	0.95	5.5	1.8	1.6	75
HML/YL	8022	1100	2800	7.11	6.80	6.52	74	0.95	5.5	1.8	1.6	75
HML/YL	90S-2	1500	2800	9.57	9.15	8.77	75	0.95	5.5	1.8	1.6	78
HML/YL	90L-2	2200	2800	13.85	13.25	12.70	76	0.95	5.5	1.7	1.6	78
HML/YL	100L1-2	3000	2800	18.40	17.60	16.87	78	0.95	6	1.7	1.6	83
HML/YL	112M-2	3700	2800	22.41	21.43	20.54	79	0.95	6	1.7	1.6	83
HML/YL	7114	250	1400	1.99	1.91	1.83	62	0.92	5	1.7	1.6	70
HML/YL	7124	370	1400	2.81	2.69	2.58	65	0.92	5	1.7	1.6	70
HML/YL	8014	550	1400	4.00	3.82	3.66	68	0.92	5	1.7	1.6	70
HML/YL	8024	750	1400	5.13	4.90	4.70	70	0.95	5	1.7	1.6	70
HML/YL	90S-4	1100	1400	7.41	7.09	6.80	71	0.95	5	1.7	1.6	73
HML/YL	90L-4	1500	1400	9.83	9.40	9.01	73	0.95	5	1.7	1.6	73
HML/YL	100L1-4	2200	1400	14.04	13.42	12.87	75	0.95	5	1.7	1.6	78
HML/YL	100L2-4	3000	1400	18.64	17.83	17.09	77	0.95	5	1.7	1.6	78
HML/YL	112M-4	3700	1400	22.70	21.71	20.81	78	0.95	5.5	1.7	1.6	83

HMU/HMC/HMY/HML Outline Dimensions B3, B5 & B35

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
											B5					OVERALL DIMENSIONS
	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	M4x12	120	100	80	7	3	115	120	79	135	190
63	100	80	40	11	23	4	8.5	63	7	M4x12	140	115	95	10	3	130	130	102	165	250
71	112	90	45	14	30	5	11	71	7	M5x12	160	130	110	10	3.5	145	145	109	180	275
80	125	100	50	19	40	6	15.5	80	10	M6x16	200	165	130	12	3.5	160	165	120	200	300
90S	140	100	56	24	50	8	20	90	10	M8x19	200	165	130	12	3.5	180	185	130	220	335
90L	140	125	56	24	50	8	20	90	10	M8x19	200	165	130	12	3.5	180	185	130	220	360
100L	160	140	63	28	60	8	24	100	12	M10x22	250	215	180	15	4	205	220	160	260	430
112M	190	140	70	28	60	8	24	112	12	M10x22	250	215	180	15	4	245	250	188	300	455

HMU/HMC/HMY/HML Outline Dimensions B14 & B34

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
											B14					OVERALL DIMENSIONS
	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	M4x12	80	65	50	4-M5	2.5	115	120	79	135	190
63	100	80	40	11	23	4	8.5	63	7	M4x12	90	75	60	4-M5	2.5	130	130	102	165	250
71	112	90	45	14	30	5	11	71	7	M5x12	105	85	70	4-M6	2.5	145	145	109	180	275
80	125	100	50	19	40	6	15.5	80	10	M6x16	120	100	80	4-M6	3	160	165	120	200	300
90S	140	100	56	24	50	8	20	90	10	M8x19	140	115	95	4-M8	3	180	185	130	220	335
90L	140	125	56	24	50	8	20	90	10	M8x19	140	115	95	4-M8	3	180	185	130	220	360
100L	160	140	63	28	60	8	24	100	12	M10x22	160	130	110	4-M8	3.5	205	220	160	260	430
112M	190	140	70	28	60	8	24	112	12	M10x22	160	130	110	4-M8	3.5	245	250	188	300	455
