Description

Reviews

Rated Voltage	220V, 230V, 240V
Rated Output Power	0.37KW/0.5HP
Rated Speed	1400rpm
Rated Frequency	50HZ
Duty Type	S1 Continuous
Insulation Class	Class F
Cooling Method	IC411
Insulation Class	IP54 or IP55
Ambient Temperature	-15~40℃
Altitude	Up to 1000m Above Sea Level
Color	Blue, Black or Grey

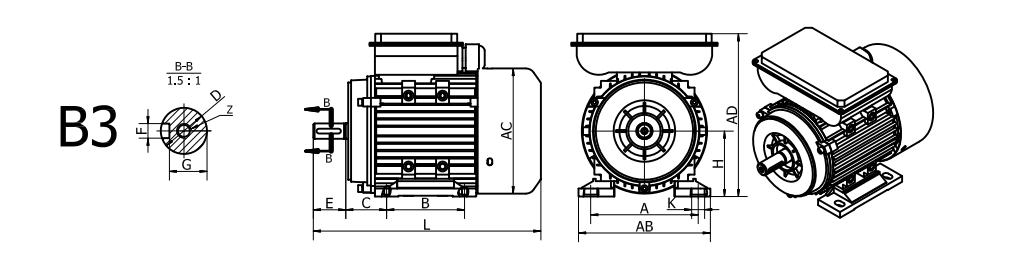

HMU/HMC/HMY/HML Outline Dimensions B3, B5 & B35

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
FRAME SIZE											B5					OVERALL DIMENSIONS
63	100	80	40	11	23	4	8.5	63	7	M4x12	140	115	95	10	3	130	130	102	165	250


TECHNICAL DATA

Type

At full load

Output

Speed

Current

Efficiency

Power factor

Is/ln

Ts/Tn

Tmax/Tn

dB(A)

r/min

220V

230V

240V

CosΦ

HMY/YY

7124

370

1400

2.95

2.82

2.70

0.92

0.35

1.7
