Description

Reviews

Rated Voltage	220V, 230V, 240V
Rated Output Power	0.25KW/0.37HP
Rated Speed	2800rpm
Rated Frequency	50HZ
Duty Type	S1 Continuous
Insulation Class	Class F
Cooling Method	IC411
Insulation Class	IP54 or IP55
Ambient Temperature	-15~40℃
Altitude	Up to 1000m Above Sea Level
Color	Blue, Black or Grey

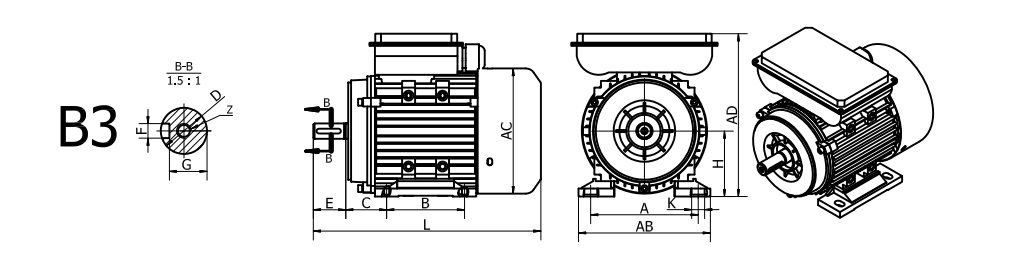

HMU/HMC/HMY/HML Outline Dimensions B3, B5 & B35

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
FRAME SIZE											B5					OVERALL DIMENSIONS
71	112	90	45	14	30	5	11	71	7	M5x12	160	130	110	10	3.5	145	145	109	180	275


TECHNICAL DATA

Type

At full load

Output

Speed

Current

Efficiency

Power factor

Is/ln

Ts/Tn

Tmax/Tn

dB(A)

r/min

220V

230V

240V

CosΦ

HMY/YY

6322

250

2800

1.87

1.79

1.72

0.92

0.4

1.7
