| Rated Output Power | 1.5KW/2HP |
| Rated Torque | 7 RPM |
| Rated Voltage | 380V,400V,415V or be customized |
| Rated Frequency | 50Hz |
| Duty Type | S1 Continuous |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC416 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| TYPE |
Standard Output |
Rated Torque |
Constant Torque Speed Control |
Constant Torque Speed Control |
Noise | Vibration | |
| KW | RPM | HZ | HZ | dB(A) | mm/s | ||
| HMVP | 90L | 1.5 | 9.5 | 5-50 | 50-100 | 83 | 1.8 |

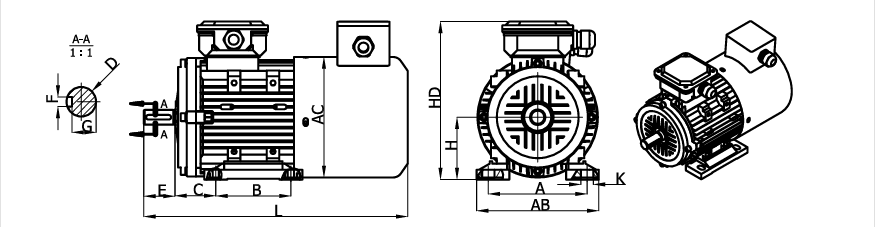

| TYPE | MOUNTING DIMENSIONS | ||||||||||||||||||||||||||
| B14 | B5 | OVERALL DIMENSIONS | |||||||||||||||||||||||||
| A | B | C | D | E | FGHK Z KK P | M | N | S | T | M | N | S | P | T | AB | AC | AD | HD | L | ||||||||
| HMVP | 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8x19 | 1-M25x1.5 | 140 | 115 | 95 | 4-M8 | 3 | 165 | 130 | 200 | Φ12 | 3.5 | 168 | 172 | 135 | 225 | 430 |
