Rated Voltage	380V, 400V, 415V or customized
Rated Output Power	4KW/5.5HP
Rated Speed	1500rpm
Rated Frequency	50HZ
Duty Type	S1 Continuous
Cooling Method	IC416
Insulation Class	Class F(Temperature Rise B,≤80K)
Insulation Class	IP54 or IP55
Ambient Temperature	-15~40℃
Altitude	Up to 1000m Above Sea Level
Color	Blue, Black or Grey
Connection	Star for 55KW and below
Connection	Delta for 75KW and above

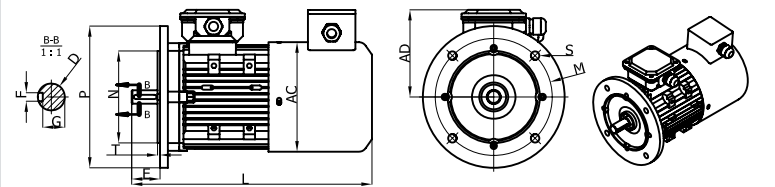

HMVP Dimension Figure Outline Dimensions

TYPE

MOUNTING DIMENSIONS

B14

OVERALL DIMENSIONS

HMVP

112M

190

140

112

M10x22

2-M32x1.5

160

130

110

4-M8

3.5

215

180

250

Φ15

222

223

165

277

490


TECHNICAL DATA

TYPE		Standard Output	Rated Torque	Constant Torque Speed Control	Constant Torque Speed Control	Noise	Vibration
TYPE		KW	RPM	HZ	HZ	dB(A)	mm/s
HMVP	112M	4	25.4	5-50	50-100	87	1.8 2.8 4.5
