Description

Reviews

Rated Voltage	220V, 230V, 240V
Rated Output Power	1.5KW/2HP
Rated Speed	1400rpm
Rated Frequency	50HZ
Duty Type	S1 Continuous
Insulation Class	Class F
Cooling Method	IC411
Insulation Class	IP54 or IP55
Ambient Temperature	-15~40℃
Altitude	Up to 1000m Above Sea Level
Color	Blue, Black or Grey

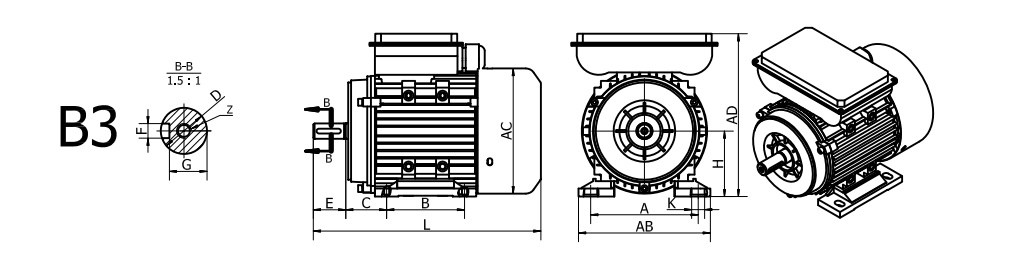

HML Outline Dimensions B3, B5 & B35

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
FRAME SIZE											B5					OVERALL DIMENSIONS
90L	140	125	56	24	50	8	20	90	10	M8x19	200	165	130	12	3.5	180	185	130	220	360


HML/YL TECHNICAL DATA

Type

At full load

Output

Speed

Current

Efficiency

Power factor

Is/In

Ts/Tn

Tmax/Tn

dB(A)

r/min

220V

230V

240V

CosΦ

HML/YL

90L-4

1500

1400

9.83

9.40

9.01

0.95

1.7

1.6
