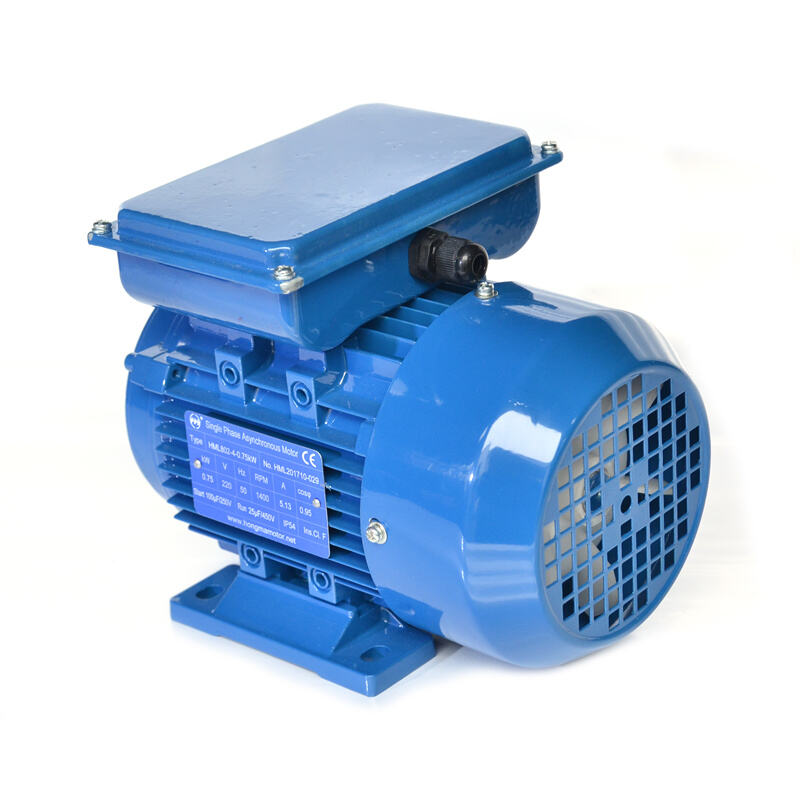

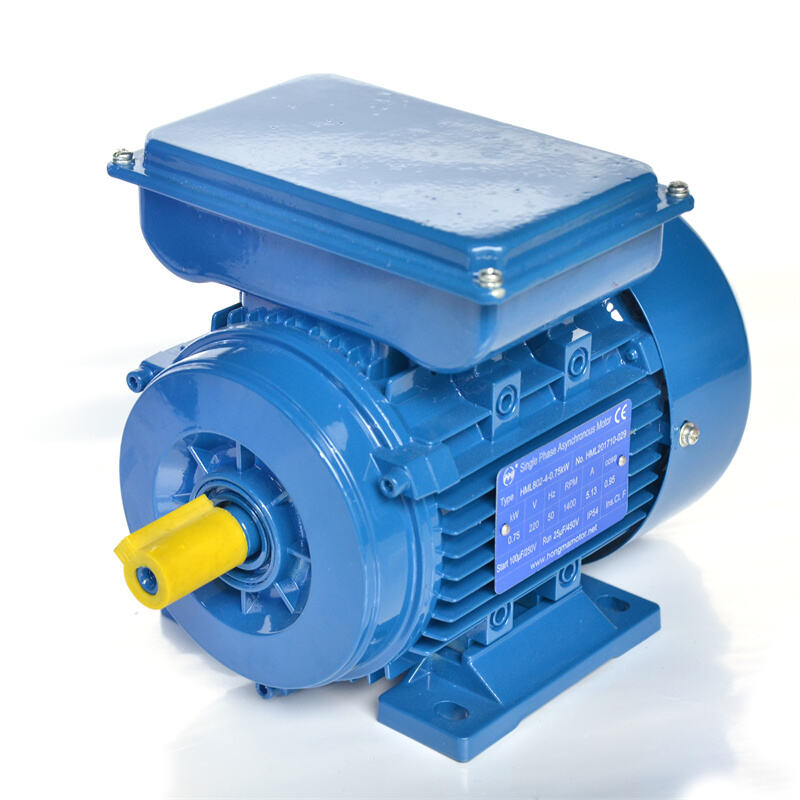

Home > Products > Single Phase Electric Motor > YL/YCL Series Two Capacitors Start-runing Motor
| Rated Output Power | 0.75KW/1HP |
| Rated Speed | 1400RPM |
| Rated Voltage | 220V,230V,240V |
| Rated Frequency | 50Hz,60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| Type | At full load | |||||||||||
| Output | Speed | Current | Efficiency | Power factor | S// | Ts/Tn | Tmax/Tn | dB(A) | ||||
| W | r/min | 220V | 230V | 240V | 7% | CosΦ | ||||||
| HML/YL | 8024 | 750 | 1400 | 5.13 | 4.90 | 4.70 | 70 | 0.95 | 5 | 1.7 | 1.6 | 70 |

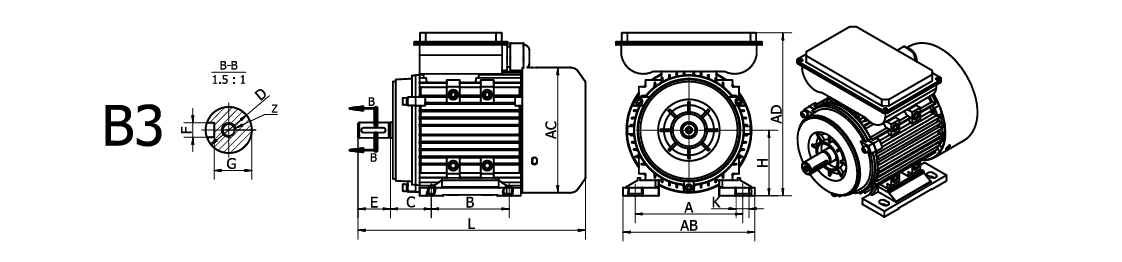

| FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | ||||||||||||||||||
| B5 | ||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | M6x16 | 200 | 165 | 130 | 12 | 3.5 | 160 | 165 | 120 | 200 | 300 |
