Description

Reviews

Rated Output Power	0.75KW/1HP
Rated Speed	1400RPM
Rated Voltage	220V,230V,240V
Rated Frequency	50Hz,60Hz
Duty Type	S1 Continuous =
Insulation Class	F or H
Protection Class	IP54 or IP55
Cooling Method	IC411
Ambient Temperature	-15~40℃.
Altitude	Up to 1000m Above Sea Level
Colour	Black,Blue,Grey

HML/YL TECHNICAL DATA

Type

At full load

Output

Speed

Current

Efficiency

Power factor

S//

Ts/Tn

Tmax/Tn

dB(A)

r/min

220V

230V

240V

CosΦ

HML/YL

8024

750

1400

5.13

4.90

4.70

0.95

1.7

1.6

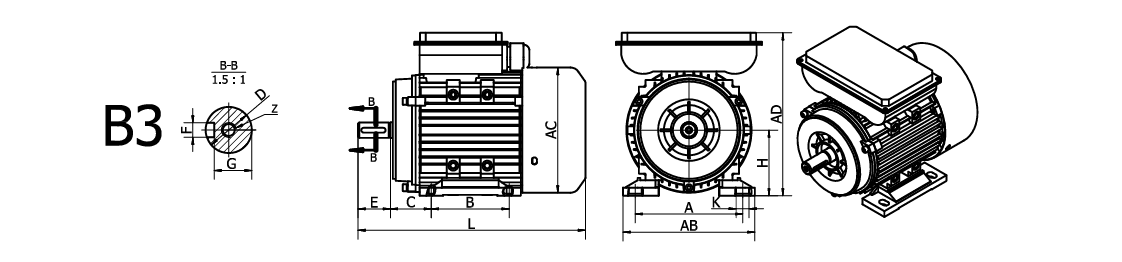

HML Outline Dimensions B3, B5 & B35

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
											B5					OVERALL DIMENSIONS
	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	AB	AC	AD	HD	L
80	125	100	50	19	40	6	15.5	80	10	M6x16	200	165	130	12	3.5	160	165	120	200	300
