Description

Reviews

Rated Voltage	220V, 230V, 240V
Rated Output Power	3KW/4HP
Rated Speed	1400rpm
Rated Frequency	50HZ
Duty Type	S1 Continuous
Insulation Class	Class F
Cooling Method	IC411
Insulation Class	IP54 or IP55
Ambient Temperature	-15~40℃
Altitude	Up to 1000m Above Sea Level
Color	Blue, Black or Grey

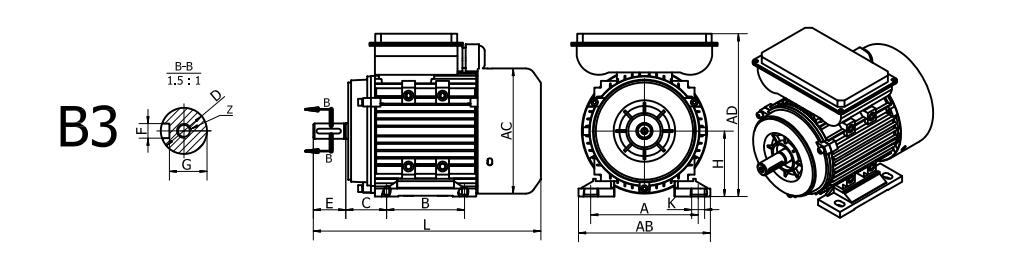

HML Outline Dimensions B3, B5 & B35

FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
FRAME SIZE											B5					OVERALL DIMENSIONS
100L	160	140	63	28	60	8	24	100	12	M10x22	250	215	180	15	4	205	220	160	260	430


HML/YL TECHNICAL DATA

Type

At full load

Output

Speed

Current

Efficiency

Power factor

Is/In

Ts/Tn

Tmax/Tn

dB(A)

r/min

220V

230V

240V

CosΦ

HML/YL

100L2-4

3000

1400

18.64

17.83

17.09

0.95

1.7

1.6
