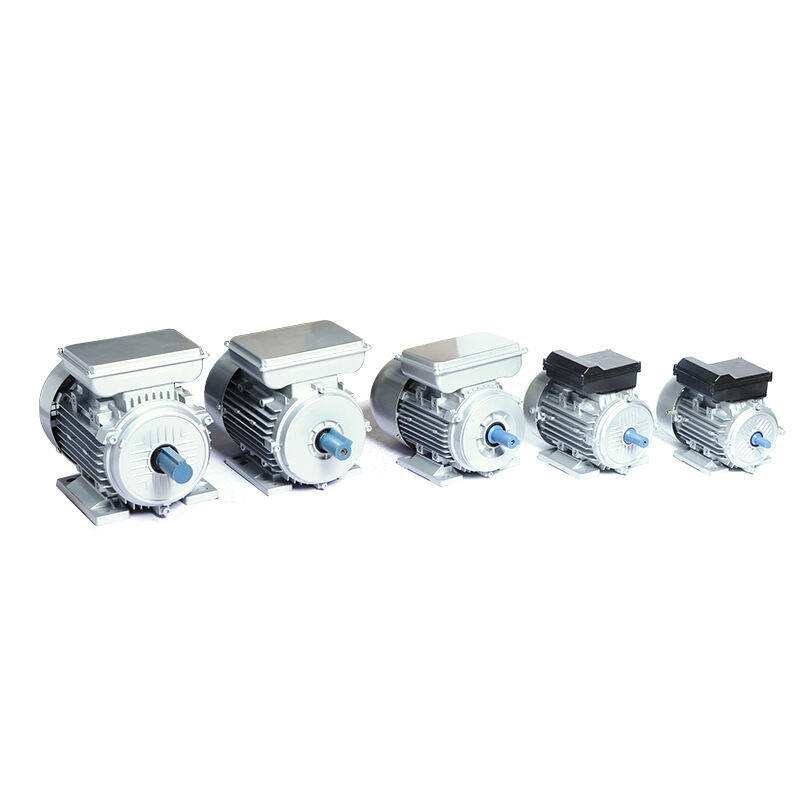

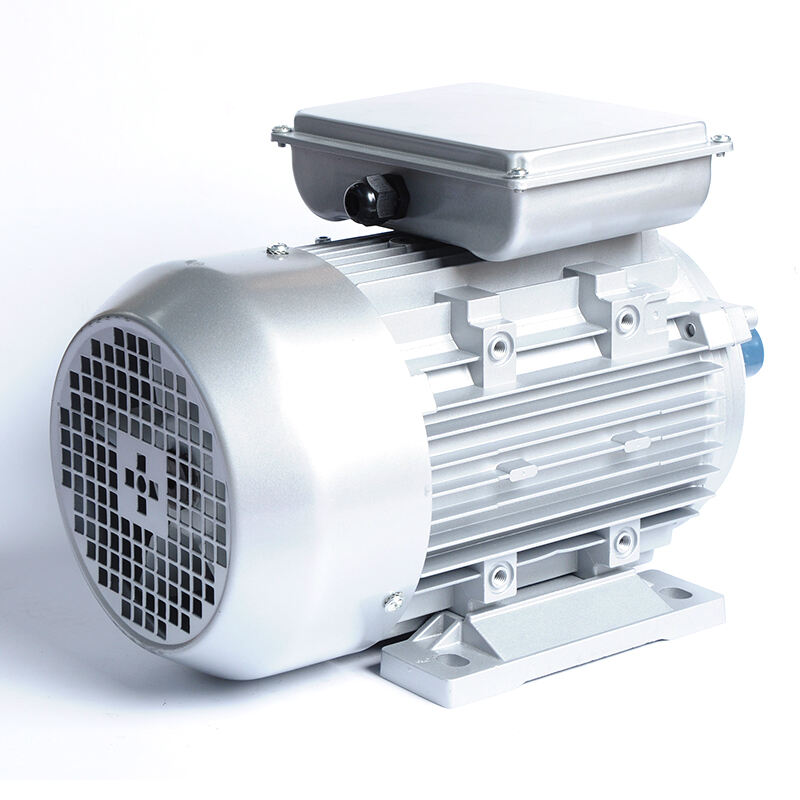

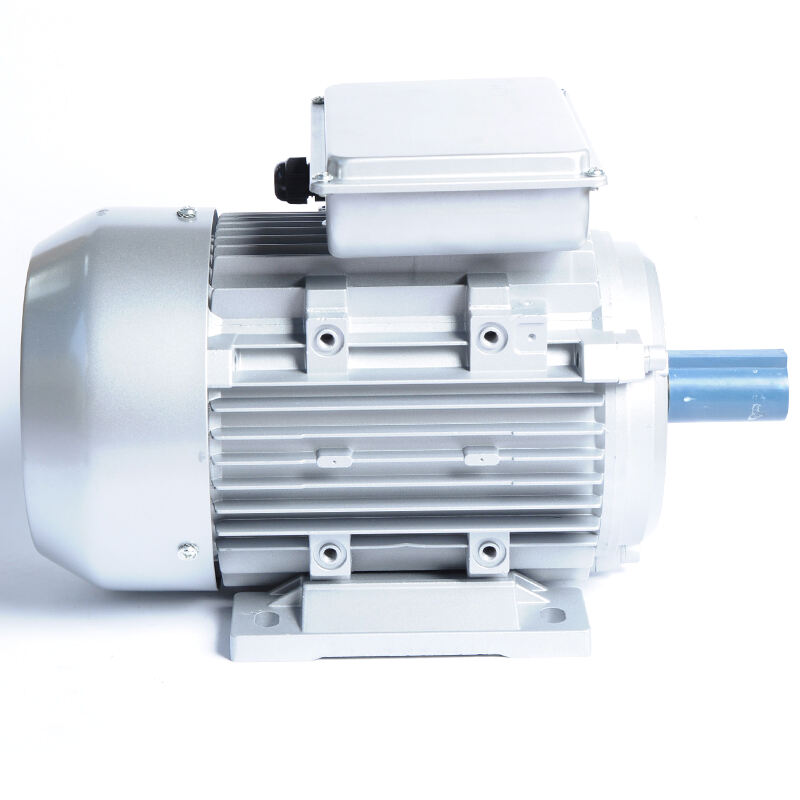

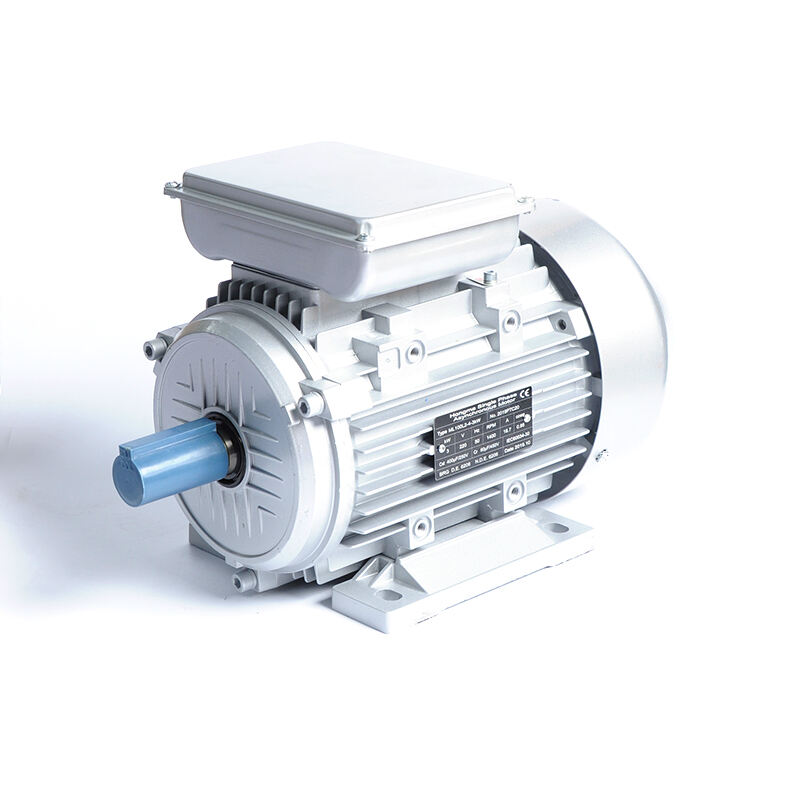

Home > Products > Single Phase Electric Motor > YL/YCL Series Two Capacitors Start-runing Motor
| Rated Voltage | 220V, 230V, 240V |
| Rated Output Power | 2.2KW/3HP |
| Rated Speed | 1400rpm |
| Rated Frequency | 50HZ |
| Duty Type | S1 Continuous |
| Insulation Class | Class F |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

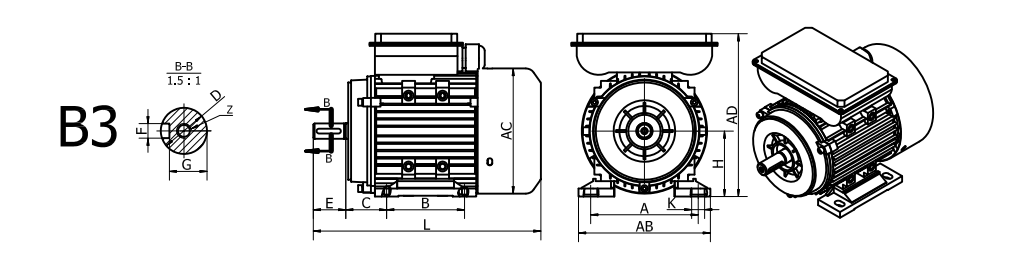

| FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||
| B5 | |||||||||||||||
| 100L 160 | 140 | 63 | 28 | 60 | 8 | 24 100 12 M10x22 250 215 | 180 | 15 | 4 | 205 | 220 | 160 | 260 | 430 | |
| Type | At full load | |||||||||||
| Output | Speed | Current | Efficiency | Power factor | Is/In | Ts/Tn | Tmax/Tn | dB(A) | ||||
| W | r/min | 220V | 230V | 240V | 7% | CosΦ | ||||||
| HML/YL | 100L1-4 | 2200 | 1400 | 14.04 | 13.42 | 12.87 | 75 | 0.95 | 5 | 1.7 | 1.6 | 78 |
