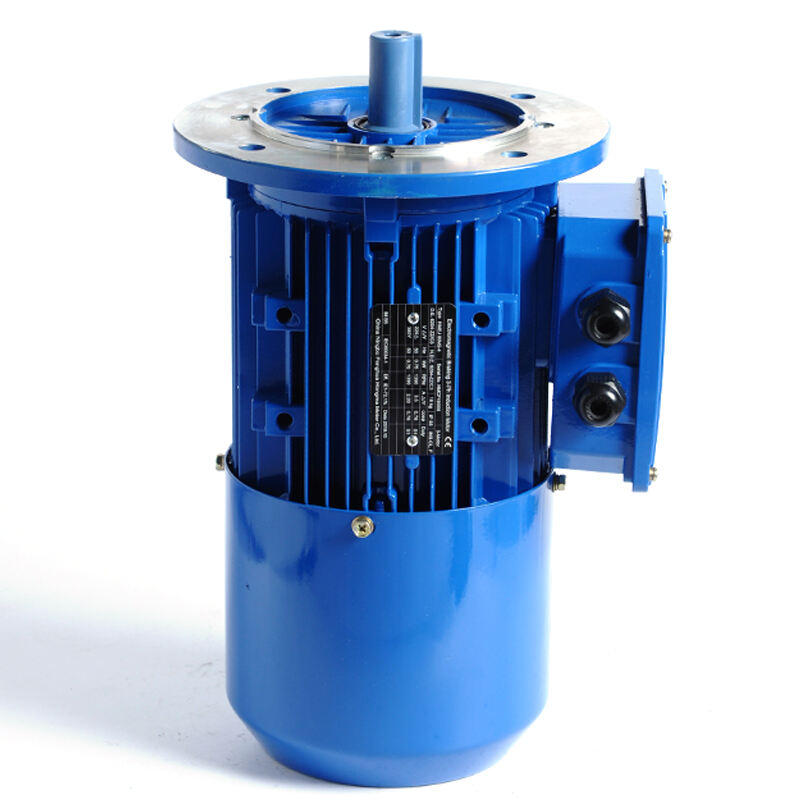

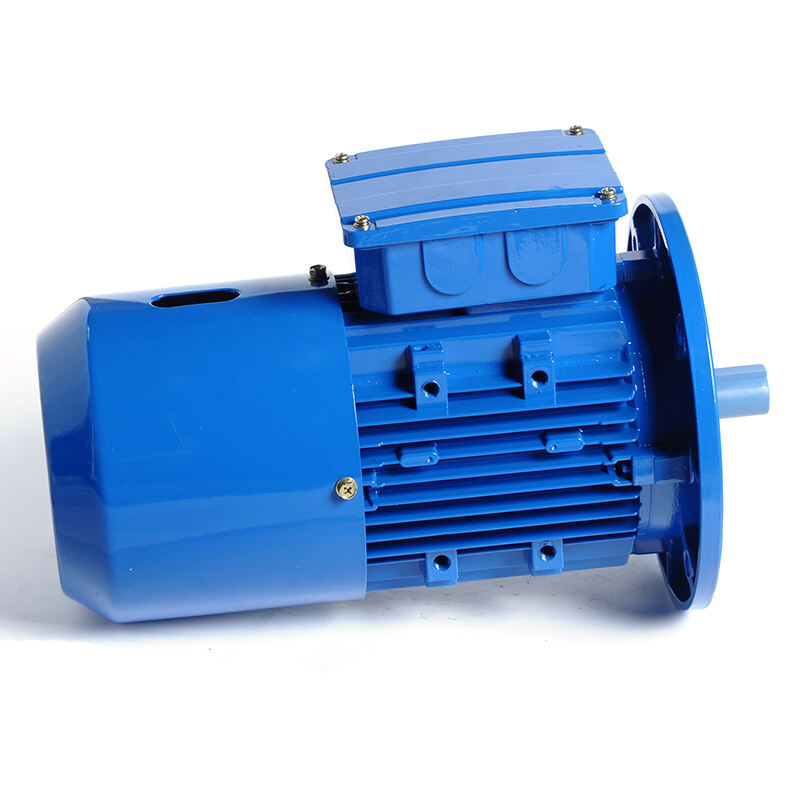

Home > Products > YEJ/HMEJ(DC) Series Electromagnetic Braking Motor
| Rated Voltage | 380V, 400V, 415V or customized |
| Rated Output Power | 1.5KW/2HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ or 60HZ |
| Duty Type | S1 Continuous or S3-60% |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |
| Insulation Class | Class F (Temperature Rise B. ≤80K) |
| Relative Humidity | Less than 95% |
| Voltage of Brake | DC 99V for 3KW and below (AC 380V) |
| DC 170V for 4KW and above (AC 380V) |
|
Fromo Sire |

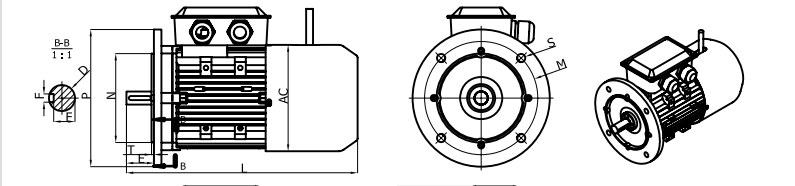

Mounting Dimensions |
Overall Dimensions |
|||||||||||||||||||||||
| B14 | B5 | ||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | Q | M | N | S | T | P | M | N | S | T | AB | AC | AD | HD | L | |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 4Φ10 | M8X19 | 115 | 95 | 140 | 4-M8 | 3 | 165 | 130 | 200 | 12 | 3.5 | 174 | 175 | 149 | 239 | 391 |
|
Type |
Rated Output |
Rated Speed ipm |
Rated Current rpm |
Efficiency (%) |
Power factar CO9 |
Rated Torque (Nm) |
Ts/Tn |
Tmax/Tn |
ls/in |
Braking Torque (N.m) |
Broking Time (s) |
Braking Power (W) |
Weight (kg] |
|
| kW | Hp | |||||||||||||
| HMEJ-90L-4 | 1.5 | 2 | 1390 | 3.07 | 828 | 0.79 | 10.3 | 23 | 23 | 6.0 | 15 | 0.2 | 50 | 27 |
