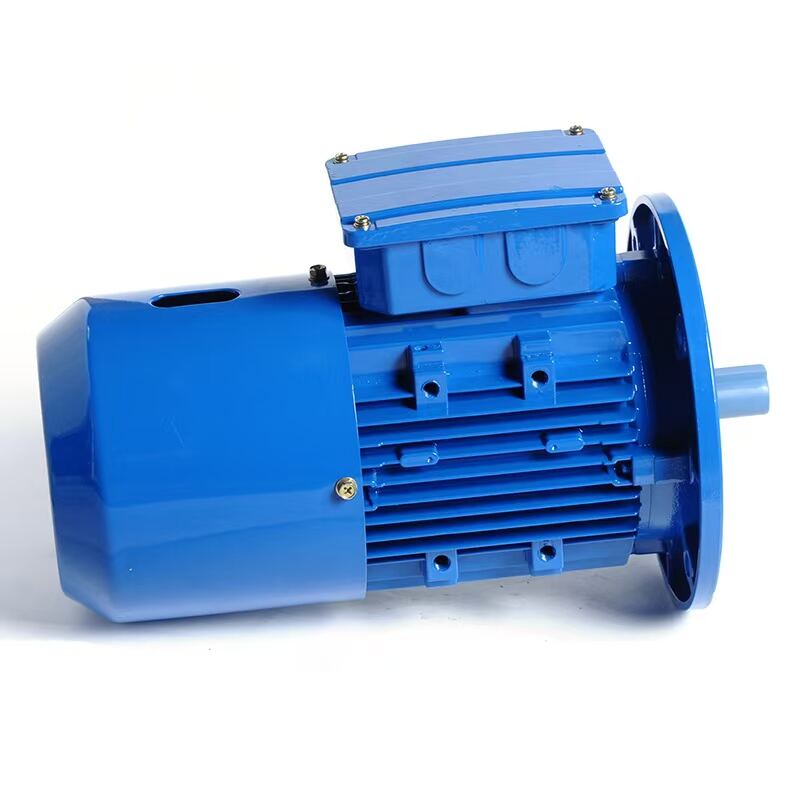

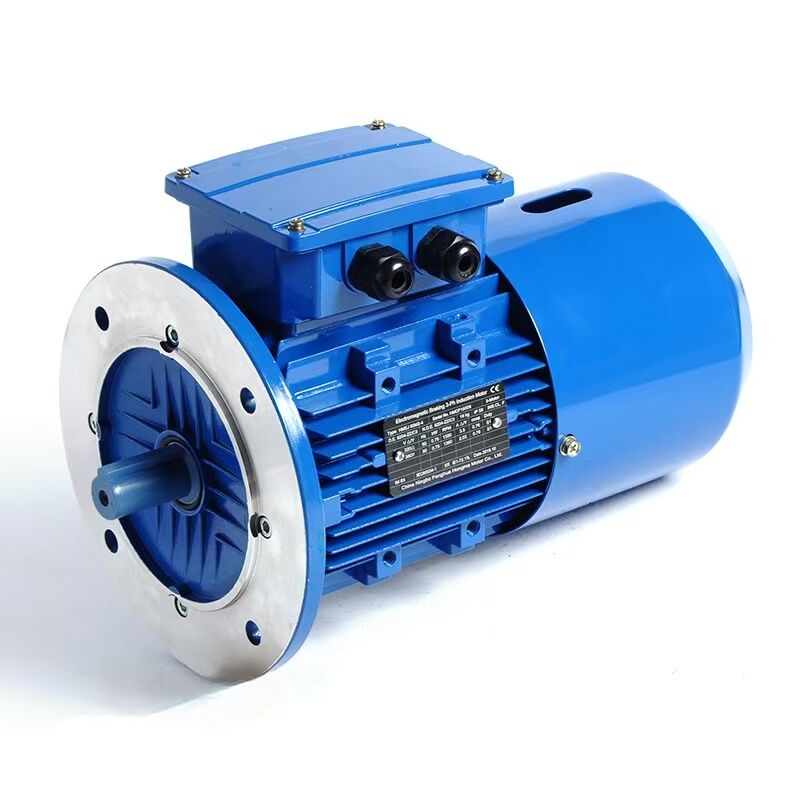

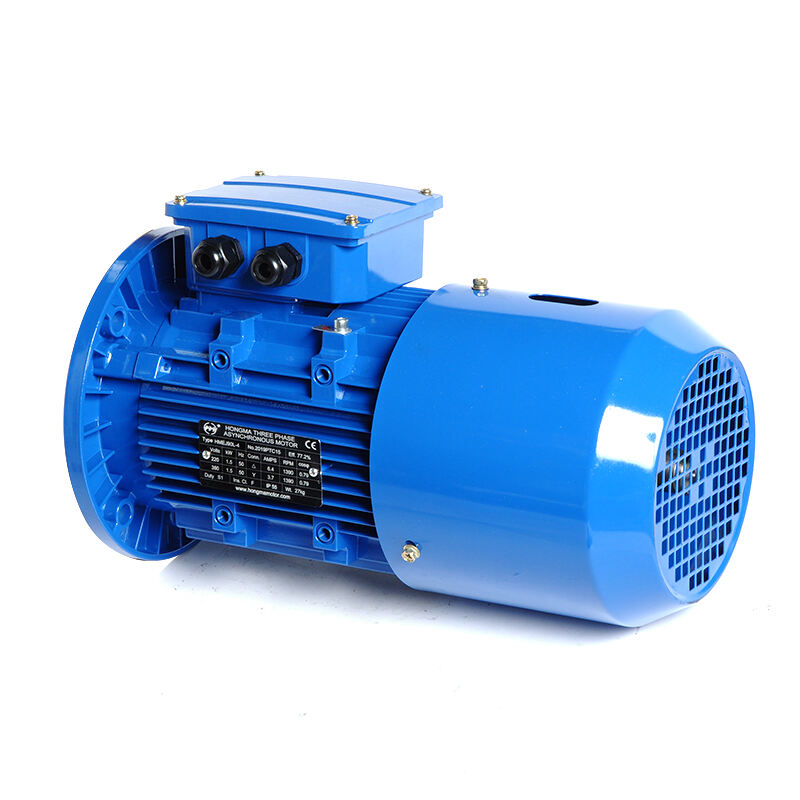

Home > Products > YEJ/HMEJ(DC) Series Electromagnetic Braking Motor
| Rated Voltage | 380V, 400V, 415V or customized |
| Rated Output Power | 15KW/20HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ or 60HZ |
| Duty Type | S1 Continuous or S3-60% |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |
| Insulation Class | Class F (Temperature Rise B. ≤80K) |
| Relative Humidity | Less than 95% |
| Voltage of Brake | DC 99V for 3KW and below (AC 380V) |
| DC 170V for 4KW and above (AC 380V) |

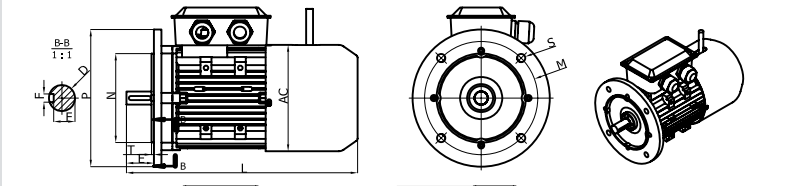

| TYPE | MOUNTING DIMENSIONS | ||||||||||||||||||||||||||
| POLES | B14 | B5 | OVERALL DIMENSIONS | ||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | KK | P | M | N | S | T | M | N | S | P | T | AB | AC | AD | HD | L | ||
| HMEJ(DC)160L | 2.4.6.8P | 254 | 254 | 108 | 42 | 110 | 12 | 3 37 | 160 | 15 | M12x28 | 2-M40x1.5 | 250 | 215 | 180 | 4-M12 | 4 | 300 | 250 | Φ19 | 350 | 5 | 315 | 330 | 420 | 580 | 650 |
| Type | Output | Speed | Rated Current |
Eff | Power Factor | brake torque | braking time | Energizing Power |
Ist/ln | Tst/TN | Tmax/Tn | Weight |
| KW | RPM | A | % | CosΦ | N.m | S | W | KG | ||||
| 380V/50HZ 4POLE 1500RPM | ||||||||||||
| HMEJ(DC)160L | 15 | 1460 | 30.1 | 89 | 0.85 | 150 | 0.35 | 150 | 7 | 2.2 | 2.3 | 142 |
