| Rated Voltage: | 380V, 400V, 415V or customized |
| Rated Output Power: | 7.5KW/10HP |
| Rated Speed: | 3000rpm |
| Rated Frequency: | 50HZ or 60HZ |
| Duty Type: | S1 Continuous or S3-60% |
| Cooling Method: | IC411 |
| Insulation Class: | IP54 or IP55 |
| Ambient Temperature: | -15~40℃ |
| Altitude: | Up to 1000m Above Sea Level |
| Color: | Blue, Black or Grey |
| Insulation Class: | Class F (Temperature Rise B. ≤80K) |
| Relative Humidity: | Less than 95% |
| Voltage of Brake: | DC 99V for 3KW and below (AC 380V) |
| DC 170V for 4KW and above (AC 380V) |
|

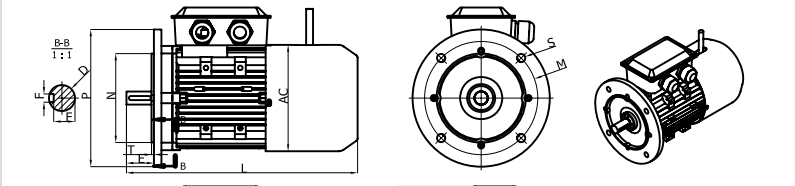

Frame Size |
Mounting Dimensions |
Overall Dimensions |
|||||||||||||||||||||||
| B14 | B5 | ||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | P | M | N | S | T | AB | AC | AD | HD | L | |
| 132S | 216 | 140 |
8 89 |
38 | 80 | 10 | 33 | 132 | 4Φ12 | M12X28 | 165 | 130 | 200 | 4-M10 | 3.5 | 265 | 230 | 300 | 14.5 | 4 | 262 | 258 | 202 | 334 | 580 |
| Type | Output | Speed |
Rated Current |
Eff | Power Factor | brake torque | braking time |
Energizing Power |
Ist/In | Tst/TN | Tmax/Tn | We |
| KW | RPM | A | % | CosΦ | N.m | S | W | |||||
| KG | ||||||||||||
| HMEJ(DC)132S2 | 7.5 | 2900 | 14.9 | 87 | 0.88 | 75 | 0.25 | 90 | 7.5 | 2.2 | 2.3 | 72 |
