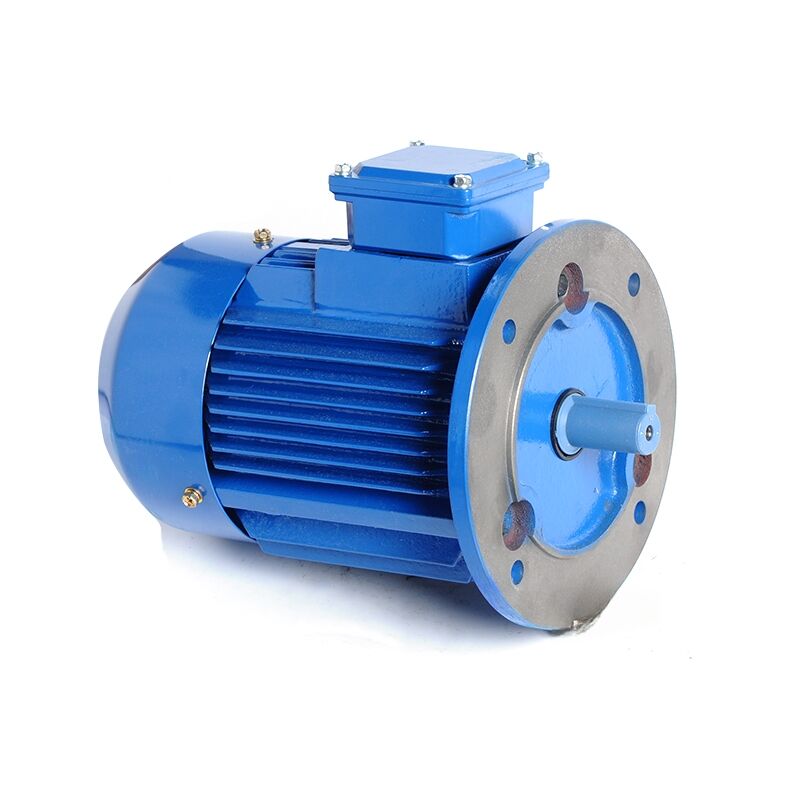

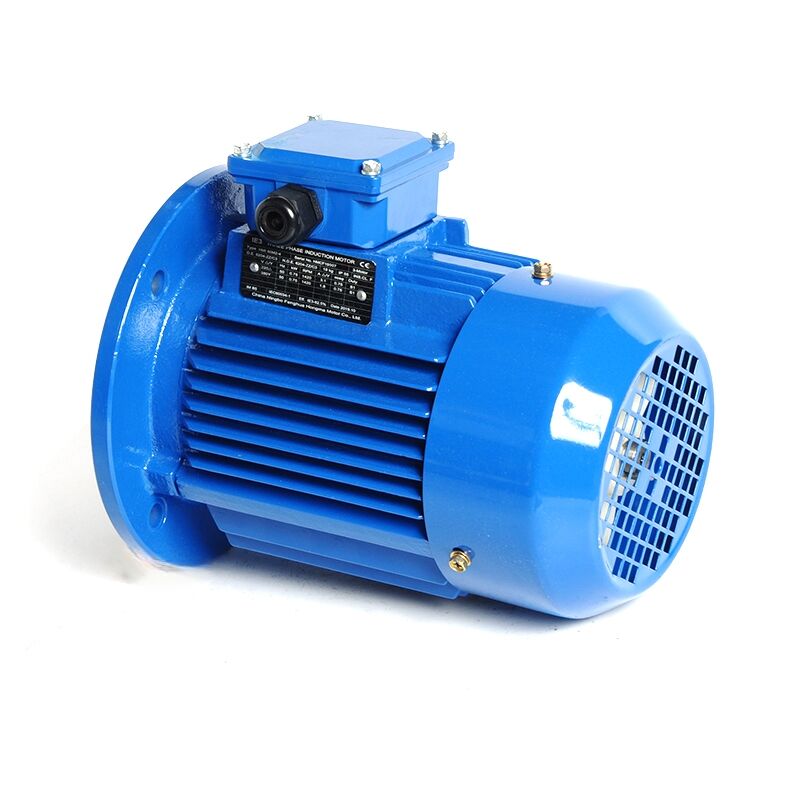

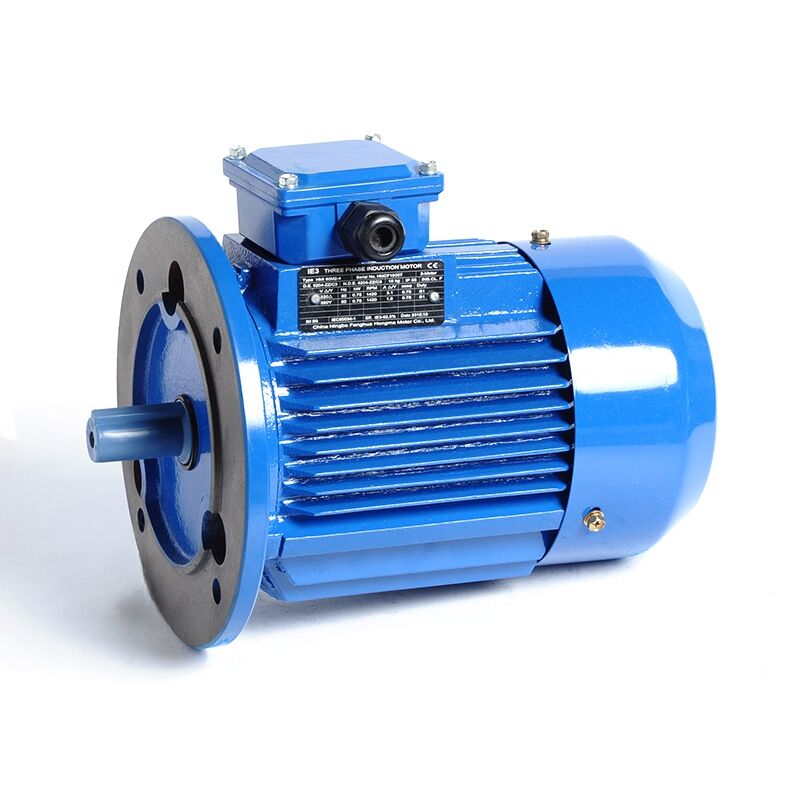

Home > Products > IE4 Series Three Phase Electric Motor > IE4/HM4 Series Cast Iron Housing Three-phase Motor
| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 11KW/15HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

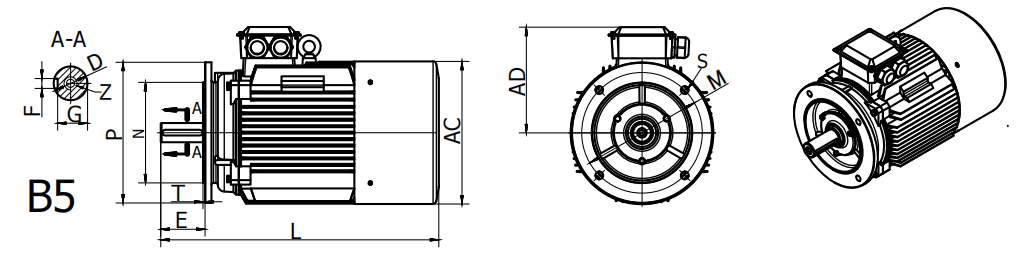

| Type | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMA3 | HMA4 | 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16x36 | 350 | 300 | 250 | 19 | 5 | 320 | 330 | 255 | 415 | 760 |
| Type | Ouput | Speed | Efficiency | Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/In | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM4 | 160L-6 | 11 | 970 | 91.5 | 0.80 | 22.8 | 21.7 | 20.9 | 2 | 1.8 | 7.2 | 111 | 164 |
