Description

Reviews

Rated Output Power:	1.5KW/2HP
Rated Speed	1500RPM
Rated Voltage:	220/380V,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized
Rated Frequency:	50Hz, 60Hz or 50/60Hz
Duty Type:	S1 Continuous
Insulation Class:	F or H
Protection Class:	IP54 or IP55
Cooling Method:	IC411
Ambient Temperature:	-15~40℃
Altitude:	Up to 1000m Above Sea Level

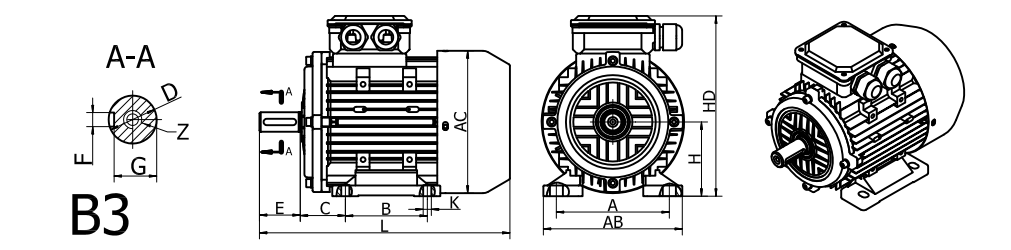

HMI3/HMI4 Parameter OUTLINE DIMENSIONS-B3, B5 AND B35

ype

FRAME SIZE

MOUNTING DIMENSIONS

OVERALL DIMENSIONS

HMI3

HMI4

90L

140

125

M8x19

200

165

130

4-Φ12

3.5

180

172

135

225

381


HM3 (4POLE 1500RPM) ParameterTECHNICAL DATA

Type

Ouput

Speed

Efficiency

Power
factor

Rated current

Ts/Tn

Tmax/Tn

Is/ln

ALU

C/I

(kW)

(rpm)

(%)

Cosφ

380V

400V

415V

(Kg)

HM3

90L-4

1.5

1445

85.3

0.77

3.5

3.3

3.2

2.3

6.5
