| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 37KW/50HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

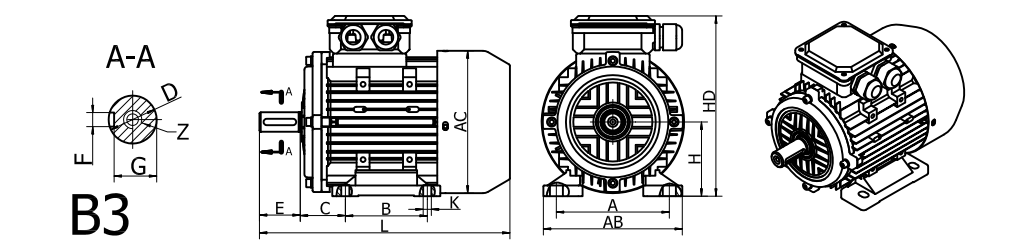

| Type | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMI3 | HMI4 | 225S(4-8P) | 356 | 286 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | M20x42 | 450 | 400 | 350 | 8-Φ19 | 5 | 435 | 442 | 335 | 560 | 830 |
| Type | Ouput | Speed | Efficiency |
Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM3 | 225S-4 | 37 | 1485 | 93.9 | 0.86 | 69.6 | 66.1 | 63.7 | 2.2 | 2.3 | 7.9 | 338 | |
