| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 30KW/40HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

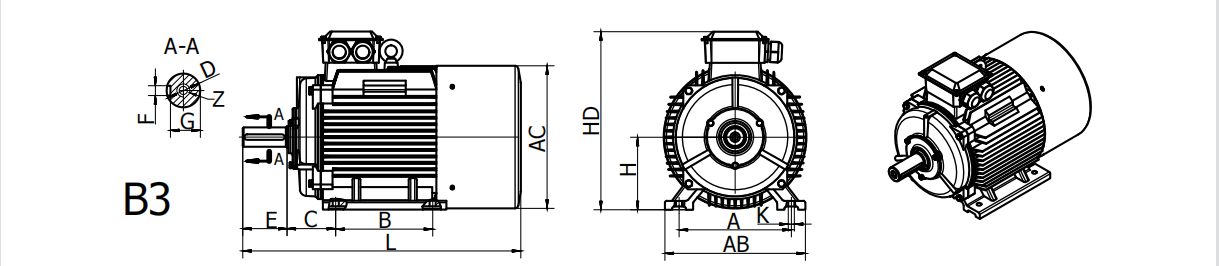

| Type | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMI3 | HMI4 | 200L | 318 | 305 | 133 | 55 | 110 | 16 | 49 | 200 | 19 | M20x42 | 400 | 350 | 300 | 4-Φ19 | 5 | 395 | 394 | 315 | 515 | 860 |
| Type | Ouput | Speed | Efficiency | Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM3 | 200L-4 | 30 | 1475 | 93.6 | 0.86 | 56.6 | 53.8 | 51.9 | 2.2 | 2.3 | 7.9 | 272 | |
