Home > Products > IE3 Series Three Phase Electric Motor > IE3/HMA3 Series Aluminum Housing Three-phase Motor
| Rated Output Power | 11KW/15HP |
| Rated Speed | 1500RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| ype | Ouput | Speed | Efficiency | Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM3 | 160M-4 | 11 | 1465 | 91.4 | 0.85 | 21.5 | 20.4 | 19.7 | 2.2 | 2.3 | 8.9 | 87 | 128 |

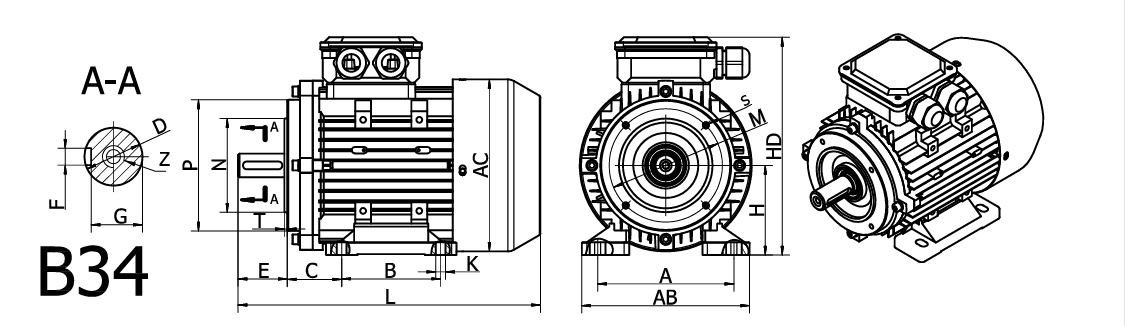

| Type | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMA3 | HMA4 | 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16x36 | 350 | 300 | 250 | 19 | 5 | 320 | 330 | 255 | 415 | 730 |
