Description

Reviews

Rated Output Power	11KW/15HP
Rated Speed	1500RPM
Rated Voltage	220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized
Rated Frequency	50Hz,60Hz or 50/60Hz
Duty Type	S1 Continuous =
Insulation Class	F or H
Protection Class	IP54 or IP55
Cooling Method	IC411
Ambient Temperature	-15~40℃.
Altitude	Up to 1000m Above Sea Level
Colour	Black,Blue,Grey

HM3 (4POLE 1500RPM) Parameter TECHNICAL DATA

ype

Ouput

Speed

Efficiency

Power
factor

Rated current

Ts/Tn

Tmax/Tn

Is/ln

ALU

C/I

(kW)

(rpm)

(%)

Cosφ

380V

400V

415V

(Kg)

HM3

160M-4

1465

91.4

0.85

21.5

20.4

19.7

2.2

2.3

8.9

128

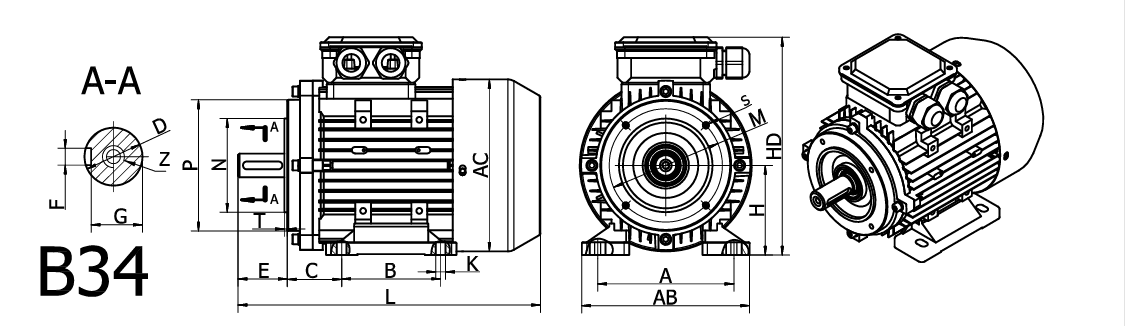

HMA3/HMA4 Parameter OUTLINE DIMENSIONS-B3,B5 AND B35

Type

FRAME SIZE

MOUNTING DIMENSIONS

OVERALL DIMENSIONS

HMA3

HMA4

160M

254

210

108

110

160

M16x36

350

300

250

320

330

255

415

730
