Home > Products > IE3 Series Three Phase Electric Motor > IE3/HMA3 Series Aluminum Housing Three-phase Motor
| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 4KW/5.5HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

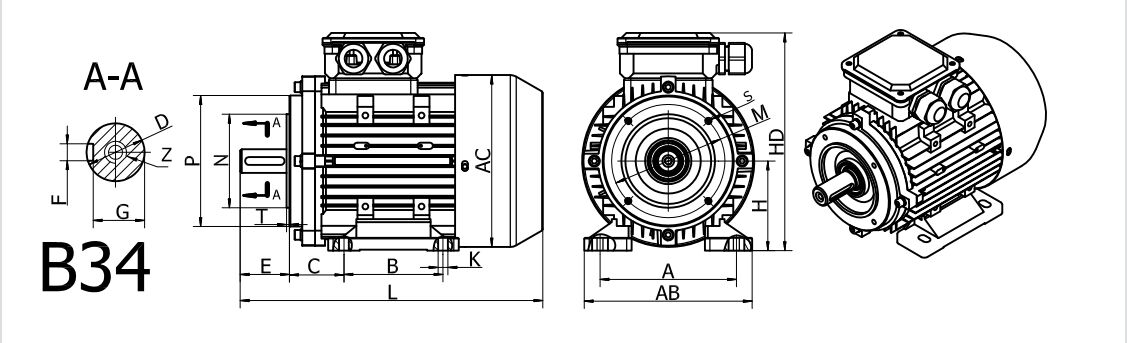

| Type | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B14 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMA3 | HMA4 | 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | M10x22 | 160 | 130 | 110 | 4-M8 | 3.5 | 230 | 223 | 165 | 277 | 440 |
| Type | Ouput | Speed | Efficiency | Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM3 | 112M-4 | 4 | 1440 | 88.6 | 0.82 | 8.4 | 7.9 | 7.7 | 2.3 | 2.3 | 7.5 | 35 | 52 |
