| Rated Output Power | 1.5KW/2HP |
| Rated Speed | 3000RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| 型号Type | 额定功率 | 额定转速 | 效率 | 功率因数 | 额定电流 | 堵转转矩/额定转矩 | 最大转矩/额定转矩 | 堵转电流/额定电流 | 铝壳 | 铁壳 | |||
| Rated Output | Rated Speed | Efficiency | Power Factor | Rated current(A) | ALU | C/I | |||||||
| （kW) | (rpm) | （%） | Cosφ | 380V | 400V | 415V | Ts/Tn | Tmax/Tn | Is/In | (Kg) | (Kg) | ||
| HM2 | 90S-2 | 1.5 | 2887 | 81.3 | 0.84 | 3.3 | 3.2 | 3.1 | 2.7 | 3.5 | 7.1 | 14.5 | 22 |

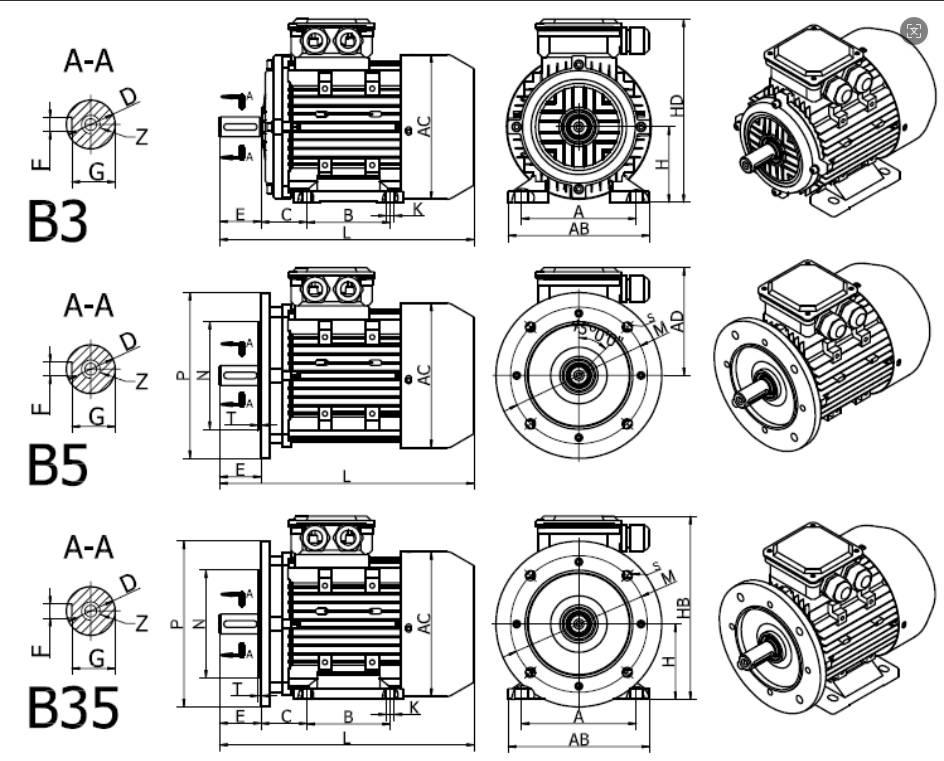

| Energy Efficiency Index | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMA1 | HMA2 | 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 200 | 165 | 130 | 4-Φ12 | 3.5 | 168 | 172 | 135 | 225 | 315 |
