| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 2.2KW/3HP |
| Rated Speed | 3000rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |
| 型号Type | 额定功率 | 额定转速 | 效率 | 功率因数 | 额定电流 | 堵转转矩/额定转矩 | 最大转矩/额定转矩 | 堵转电流/额定电流 | 铝壳 | 铁壳 | |||
| Rated Output | Rated Speed | Efficiency | Power Factor | Rated current(A) | ALU | C/I | |||||||
| （kW) | (rpm) | （%） | Cosφ | 380V | 400V | 415V | Ts/Tn | Tmax/Tn | Is/In | (Kg) | (Kg) | ||

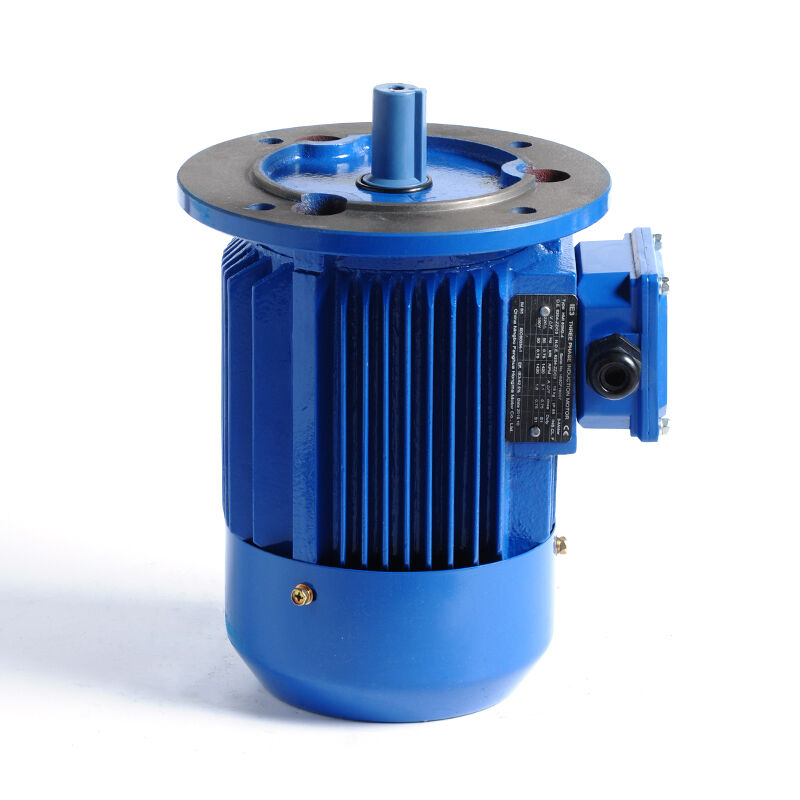

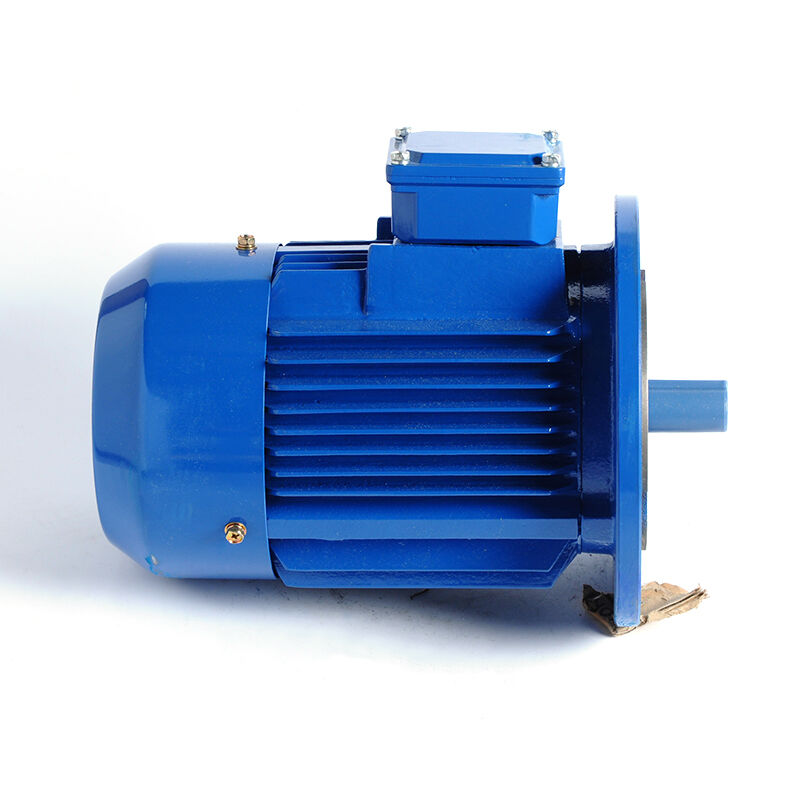

| HM2 | 90L-2 | 2.2 | 2889 | 83.2 | 0.85 | 4.7 | 4.5 | 4.3 | 2.4 | 3 | 6.9 | 16.8 | 26 |

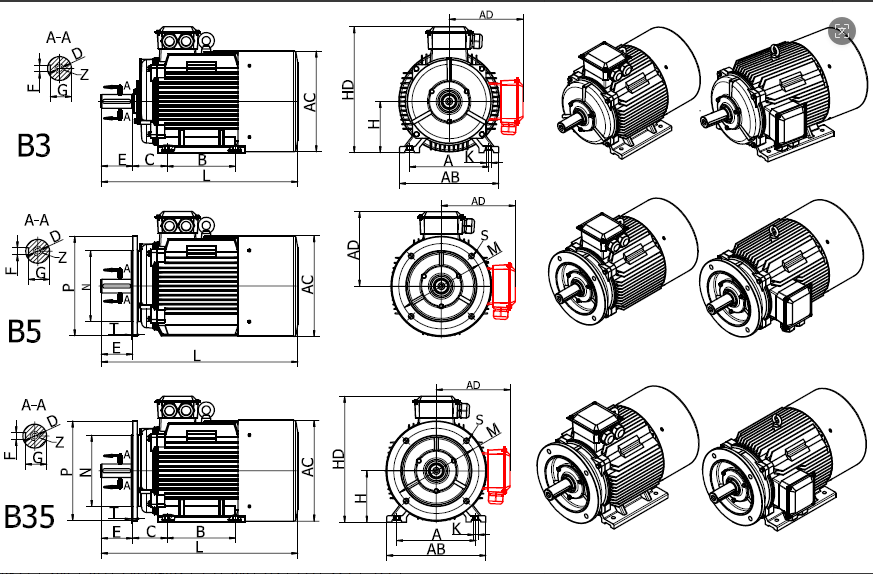

| 效率等级 | 机座号 FRAME SIZE | 安装尺寸MOUNTING DIMENSIONS | 外型尺寸 | |||||||||||||||||||
| B5 | OVERALL DIMENSIONS | |||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMI1 | HMI2 | 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 200 | 165 | 130 | 4-Φ12 | 3.5 | 168 | 172 | 135 | 225 | 340 |
