| Rated Output Power |
15KW/20HP |
| Rated Speed | 1500RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| Model | Rated Power | Rated Speed | Efficiency | Efficiency at 75% Load | Efficiency at 50% Load | Power Factor | Rated Current (A) | Rated Torque | Locked - Rotor Torque / Rated Torque | Maximum Torque / Rated Torque | Locked - Rotor Current / Rated Current | Aluminum Housing Weight | Cast Iron Housing Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | Hp | rpm | (%) | cosφ | 380V | 400V | 415V | (N·m) | Ts/Tn | Tmax/Tn | Is/In | (kg) | (kg) | |||
| HM2 - 160L - 4 | 15 | 20 | 1460 | 90.6 | 90.6 | 88.8 | 0.85 | 29.6 | 28.1 | 27.1 | 98.1 | 2.2 | 2.3 | 7.8 | 100 | 135 |

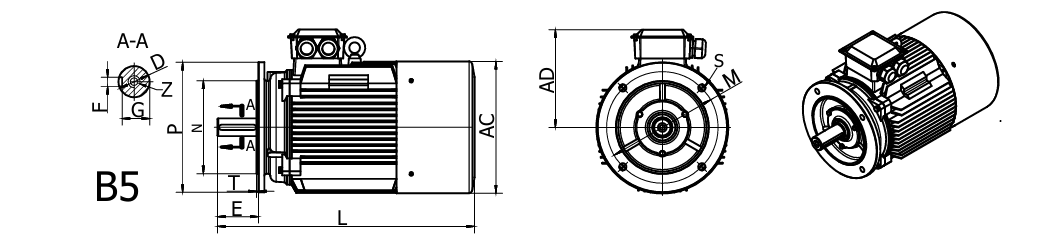

| Frame Size | Mounting Dimensions | B5 | Overall Dimensions | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |
| 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16×36 | 350 | 300 | 250 | 4 - Φ19 | 5 | 315 | 330 | 255 | 415 | 680 |
