| Rated Output Power | 7.5KW/7.5HP |
| Rated Speed | 1500RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| Type | Ouput | Speed | Efficiency |
Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||

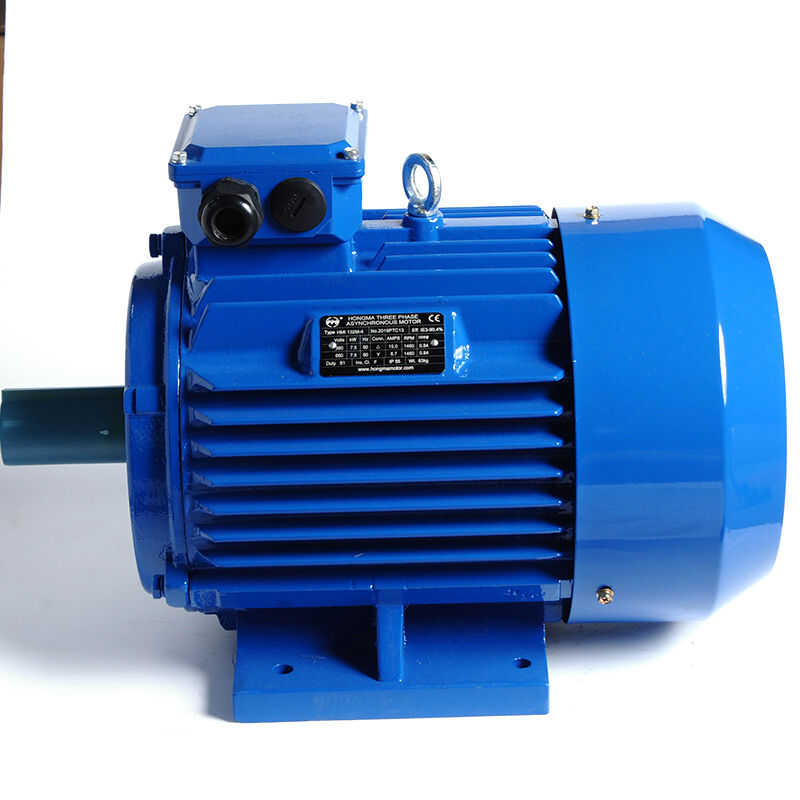

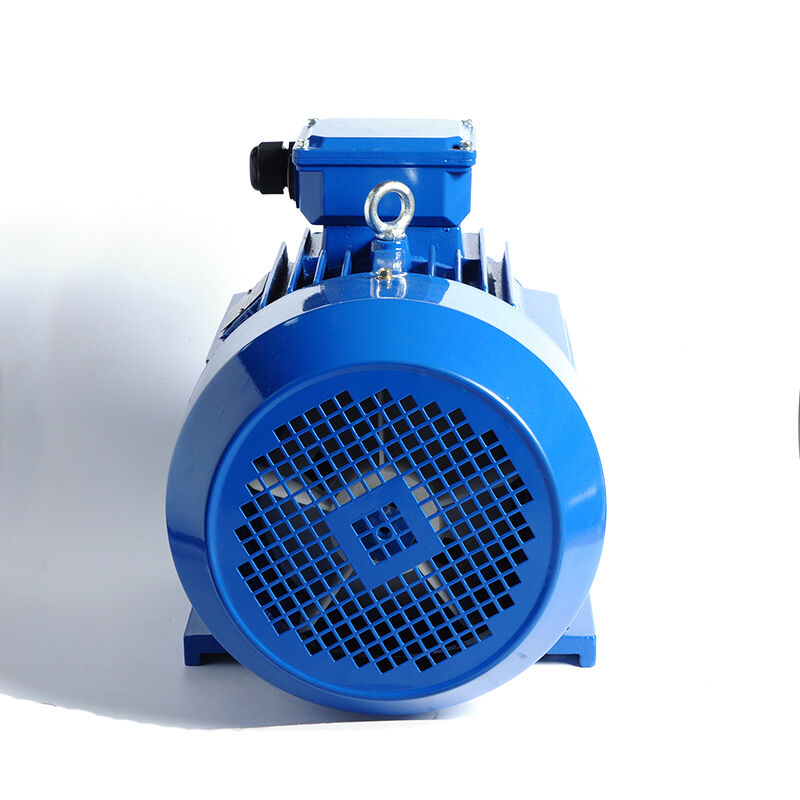

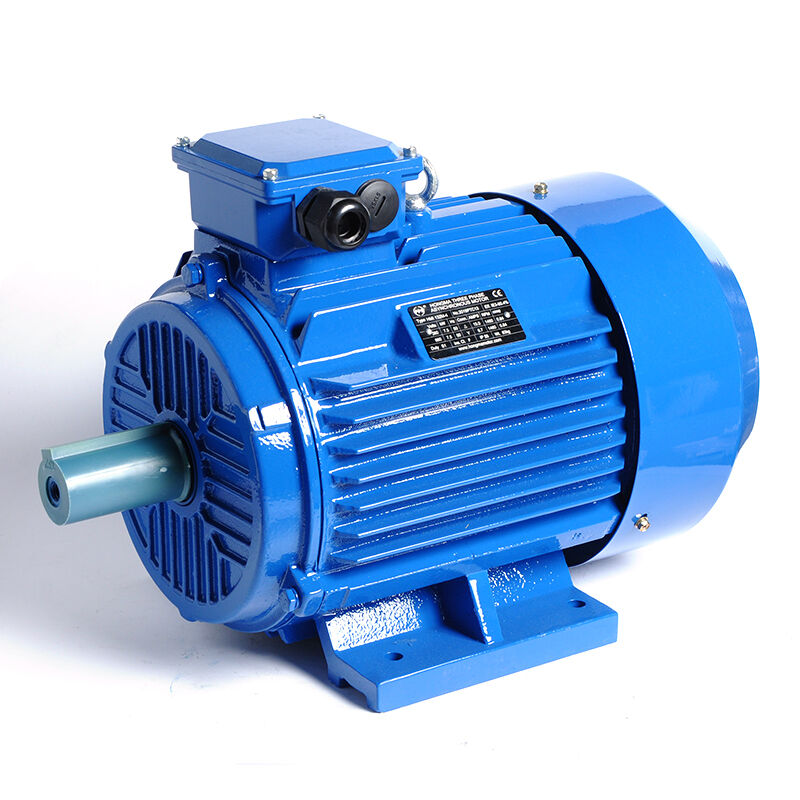

| HM2 | 132M-4 | 7.5 | 1455 | 88.7 | 0.84 | 15.3 | 14.5 | 14.0 | 14.0 | 2.4 | 3 | 54 | 76 |

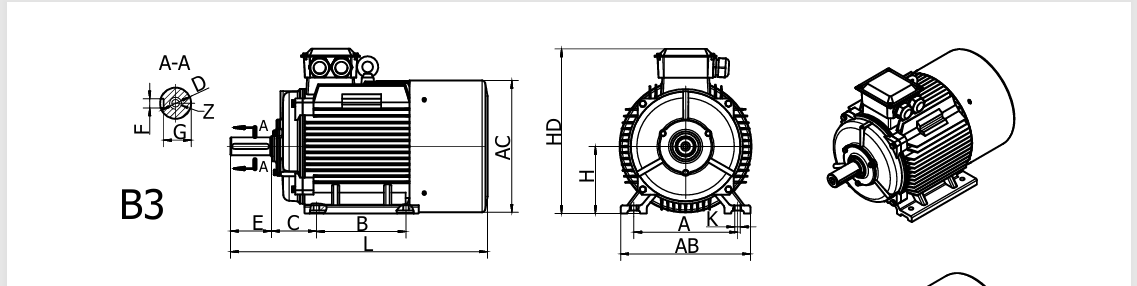

| Energy Efficiency Index | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMI1 | HMI2 | 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | M12×28 | 300 | 265 | 230 | 4-Φ15 | 4 | 248 | 265 | 208 | 340 | 500 |
