| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 3KW/4HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

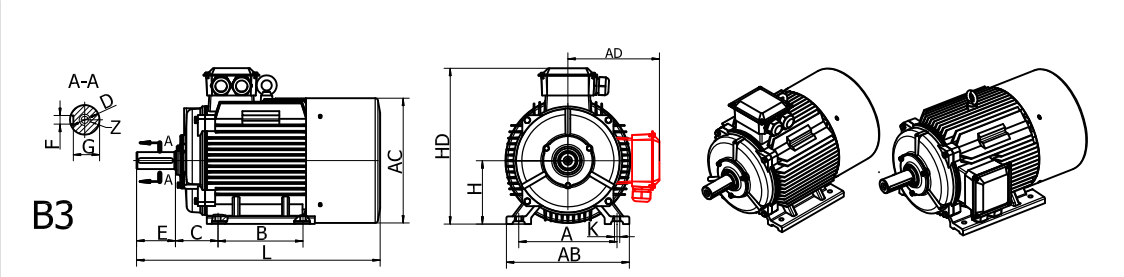

| Energy Efficiency Index | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMI1 | HMI2 | 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10×22 | 250 | 215 | 180 | 4-Φ15 | 4 | 192 | 193 | 145 | 245 | 370 |
| Type | Ouput | Speed | Efficiency |
Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM2 | 100L2-4 | 3 | 1429 | 85.5 | 0.82 | 6.5 | 6.2 | 6.0 | 6.0 | 2.6 | 3.3 | 25 | 36 |
