| Rated Output Power | 1.5KW/2HP |
| Rated Torque | 3000RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
|
Type |
Rated Output |
Rated Speed rpm |
Efficiency (%) |
Efficiency at 75% load |
Efficiency at 50% load |
Power factor cOsΦ |
Rated current |
Rated Torque (N.m) |
Ts/Tn |
Tmax/Tn |
Is/In |
ALU Weight (kg) |
C/I Weight (kg) |
|||
| kW | Hp | 380V | 400V | 415V | ||||||||||||
| HM1-90S-2 | 1.5 | 2 | 2840 | 77.2 | 77.2 | 75.7 | 0.84 | 3.51 | 3.34 | 3.22 | 5.04 | 2.2 | 2.3 | 7 | 11.5 | 19 |

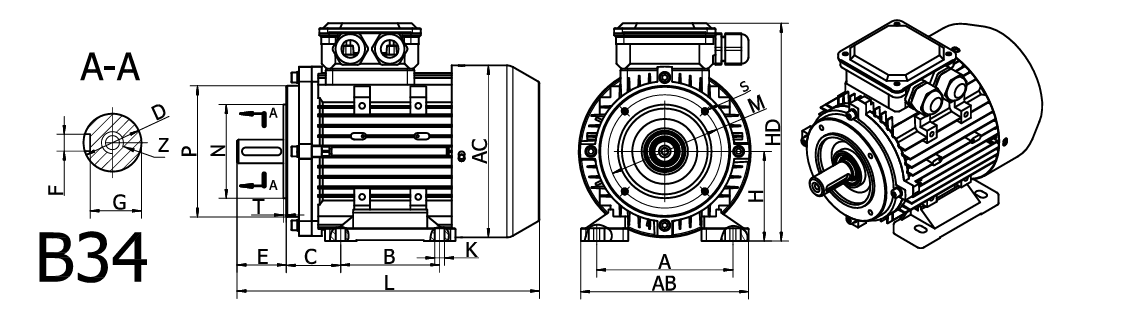

| Frame Size | Mounting Dimensions | Overall Dimensions | ||||||||||||||||||
| B5 | ||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8x19 | 200 | 165 | 130 | 4-Φ12 | 3.5 | 168 | 172 | 135 | 225 | 315 |
