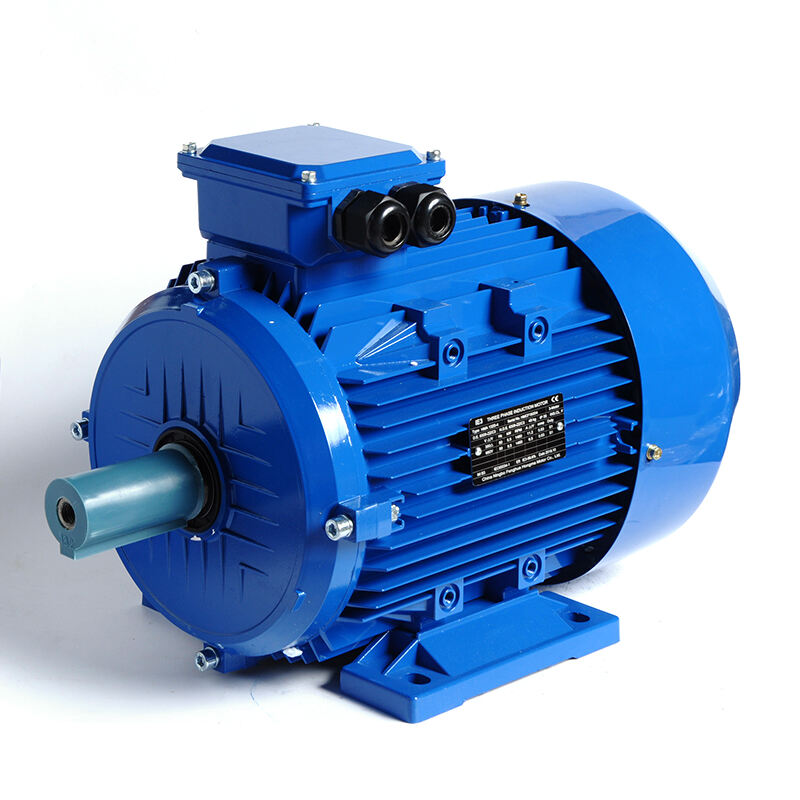

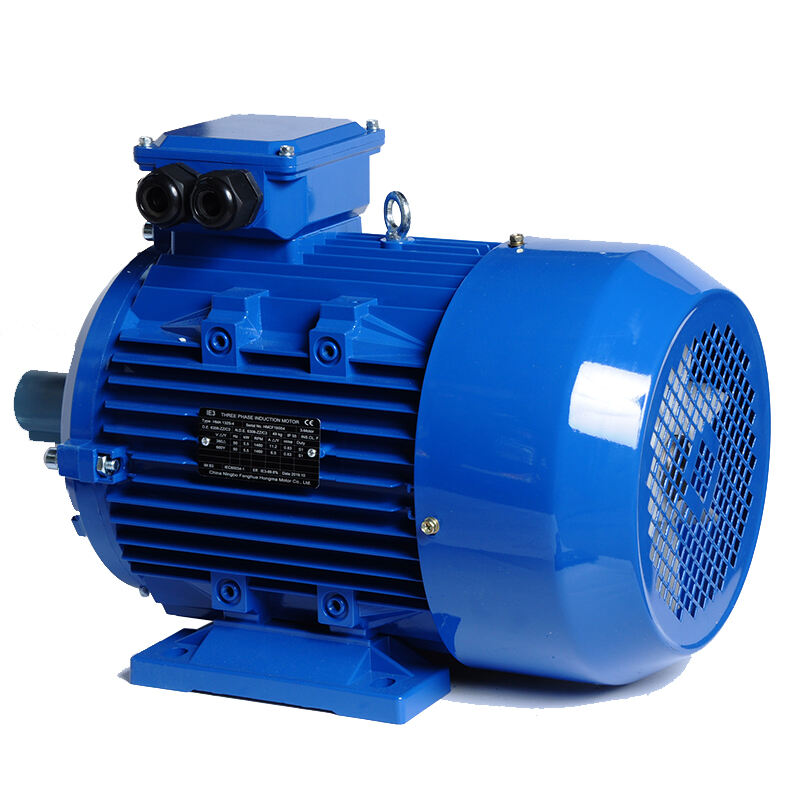

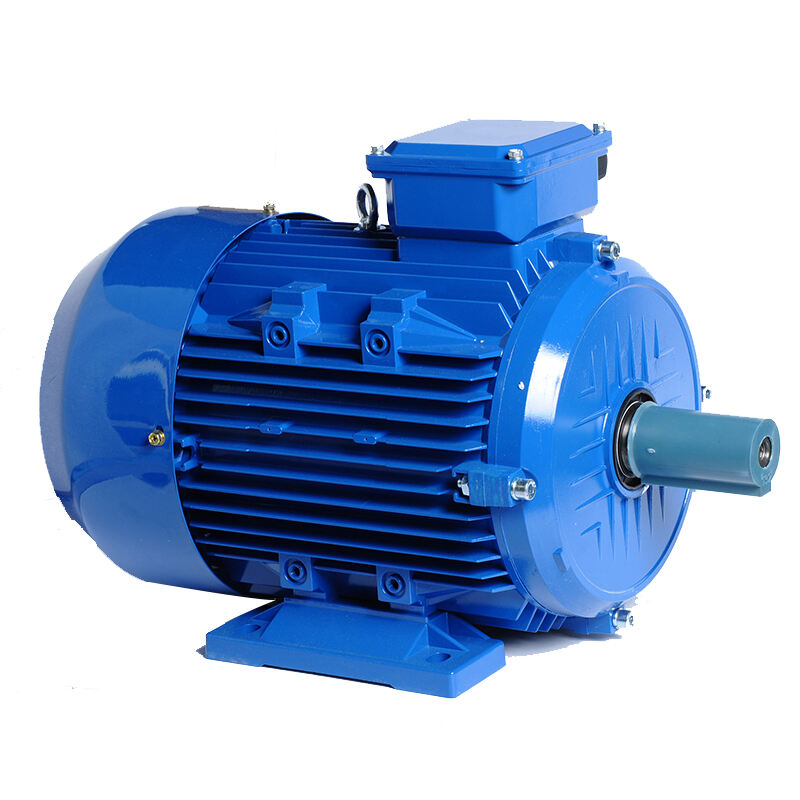

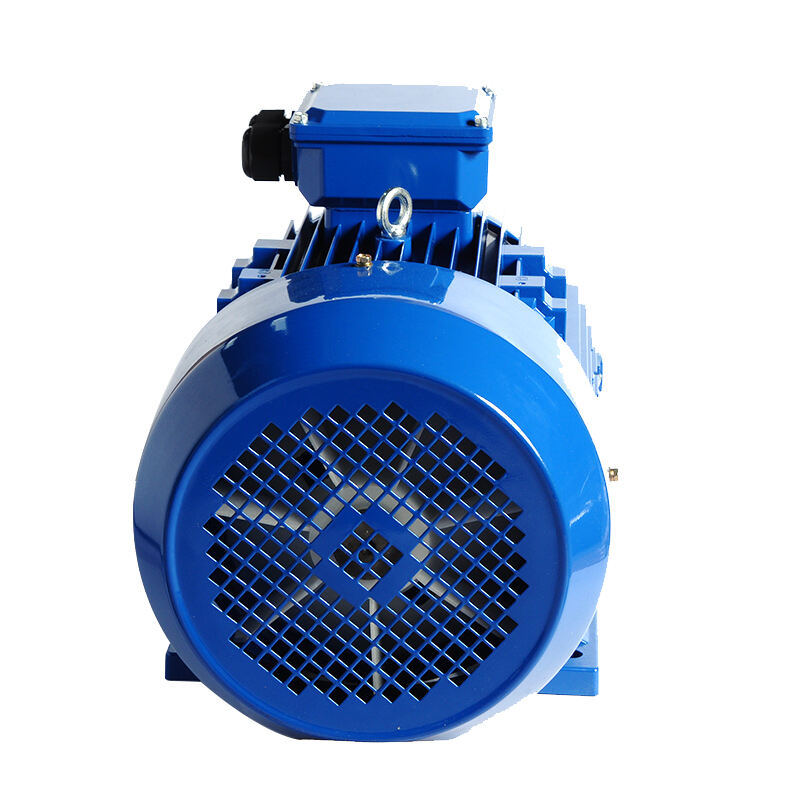

Home > Products > IE1 Series Three Phase Electric Motor > Y/Y2/Y3/IE1/HMA1 Series Aluminum Housing Three-phase Motor
| Rated Output Power | 15KW/20HP |
| Rated Torque | 3000 RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| Type | Rated Output |
Rated Speed rpm |
Efficiency (%) |
Efficiency at 75% load |
Efficiency at 50% load |
Power factor cosφ |
Rated current (A) |
Rated Torque (N.m) |
Ts/Tn | Tmax/Tn | Is/In | ALU Weight (kg) |
C/I Weight (kg) |
|||
| kW | Hp | 380V | 400V | 415V | ||||||||||||
| HM1-160M2-2 | 15 | 20 | 2930 | 88.7 | 88.7 | 86.9 | 0.89 | 28.9 | 24.4 | 26.4 | 48.9 | 2.2 | 2.3 | 7.5 | 82 | 114 |

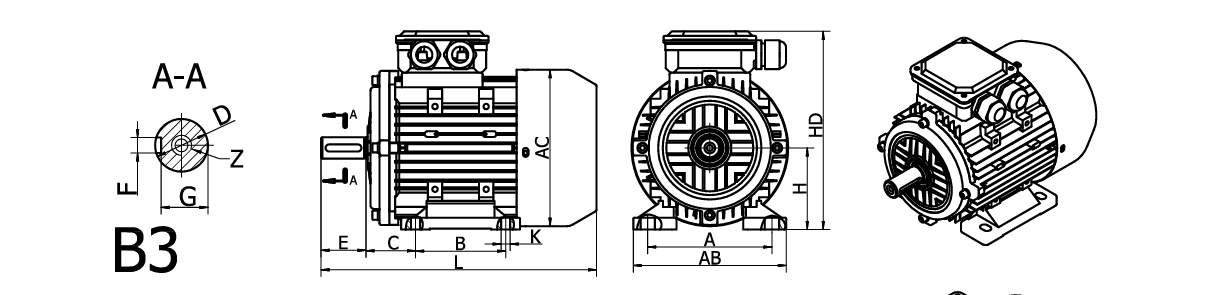

| Frame Size | Mounting Dimensions | Overall Dimensions | |||||||||||||||||||
| B5 | |||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | ||
| 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16x36 | 350 | 300 | 250 | 4-Φ19 | 5 | 315 | 330 | 260 | 420 | 605 | |
