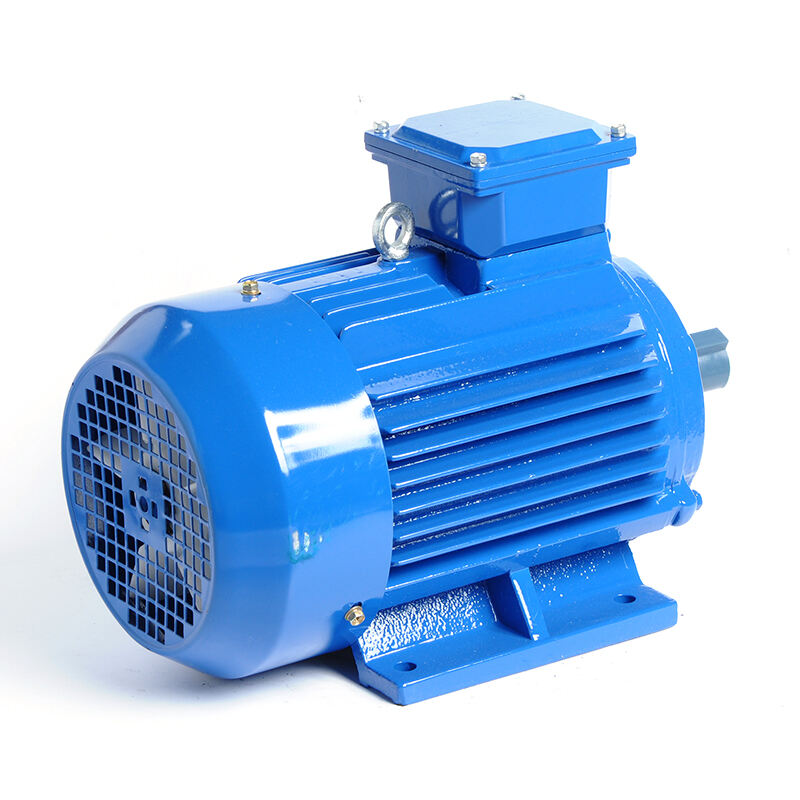

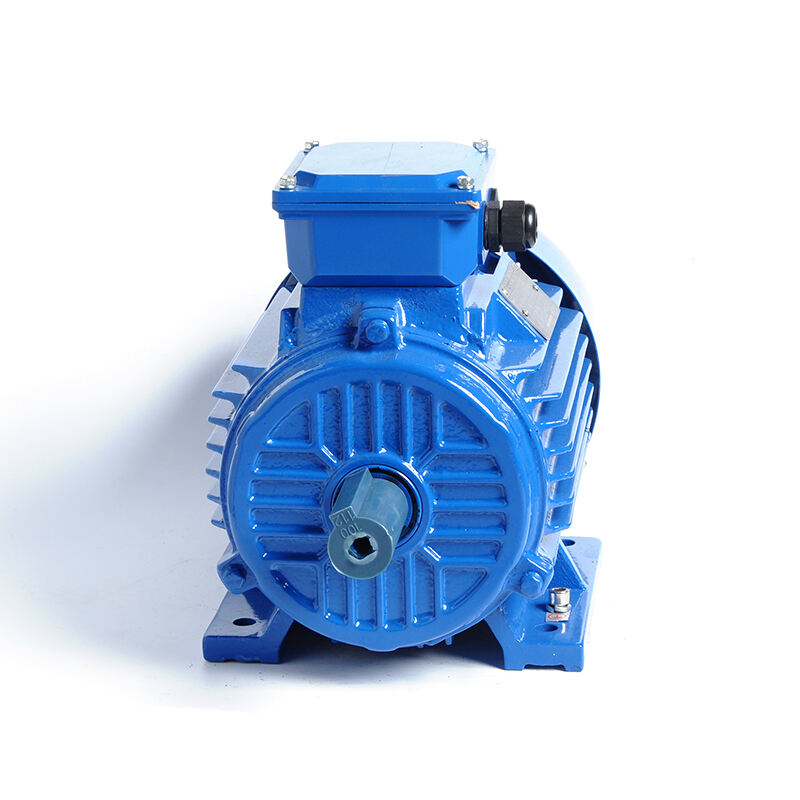

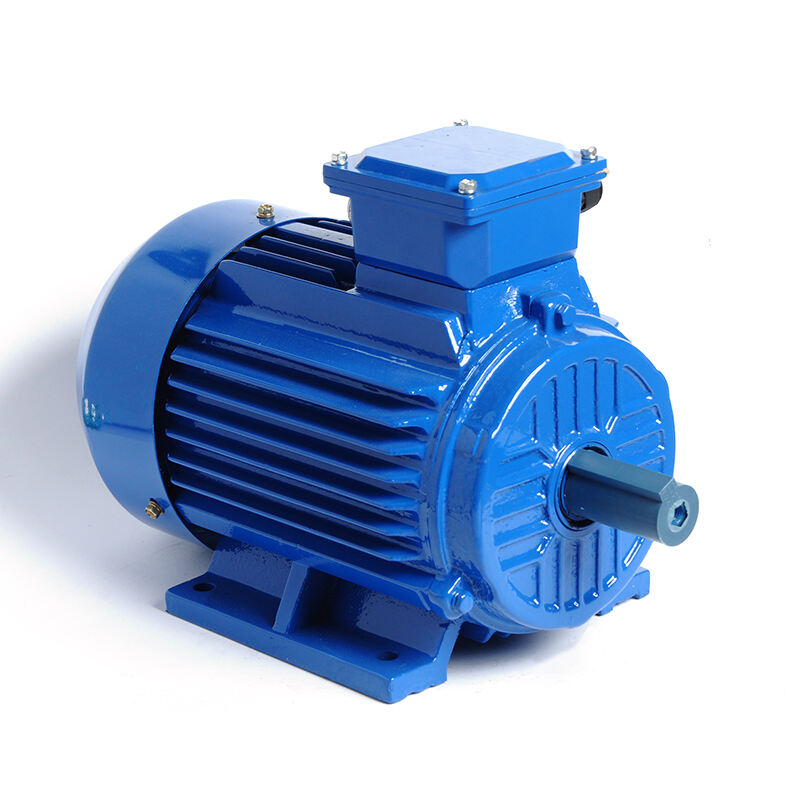

Home > Products > IE1 Series Three Phase Electric Motor > Y/Y2/Y3/IE1/HMI1 Series Cast Iron Housing Three-phase Motor
| Rated Output Power | 7.5KW/10HP |
| Rated Torque | 1000RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| Type | Rated Output |
Rated Speed rpm |
Efficiency (%) |
Efficiency at 75% load |
Efficiency at 50% load |
Power factor cosφ |
Rated current | Rated Torque (N.m) |
Ts/Tn | Tmax/Tn |
Is/In |
ALU Weight (kg) |
C/I Weight (kg) |
|||
| KW | Hp | 380V | 400V | 415V | ||||||||||||
| HM1-160M-6 | 7.5 | 10 | 970 | 84.7 | 84.7 | 83.0 | 0.78 | 17.2 | 16.4 | 15.8 | 73.8 | 2.0 | 2.1 | 6.5 | 76 | 96 |

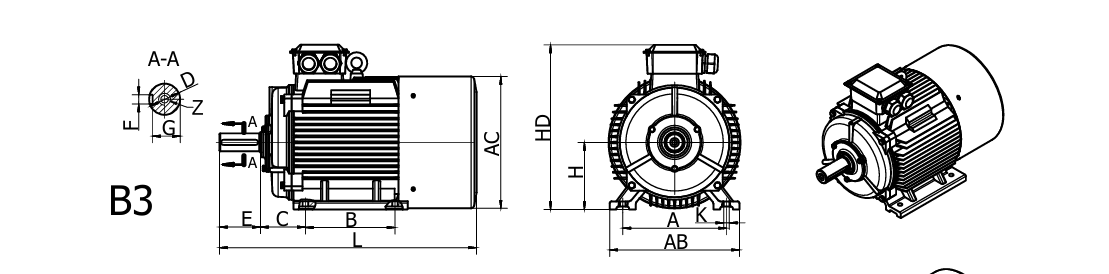

| Frame Size | Mounting Dimensions | Overall Dimensions | ||||||||||||||||||
| B5 | ||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |
| 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M16x36 | 350 | 300 | 250 | 4-Φ19 | 5 | 315 | 330 | 255 | 415 | 605 |
