| Rated Output Power | 7.5KW/10HP |
| Rated Torque | 3000 RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
| Type | Rated Output |
Rated Speed rpm |
Efficiency (%) |
Efficiency at 75% load |
Efficiency at 50% load |
Power factor COSΦ |
Rated current (A) |
Rated Torque (N.m) |
Ts/Tn | Tmax/Tn | Is/In | ALU Weight (kg) |
C/ Weight (kg) |
|||
| kW | Hp | 380V | 400V | 415V | ||||||||||||
| HM1-132S2-2 | 7.5 | 10 | 2900 | 86.0 | 86.0 | 84.3 | 0.88 | 15.1 | 14.3 | 13.8 | 24.7 | 2.2 | 2.3 | 7.5 | 42.5 | 60 |

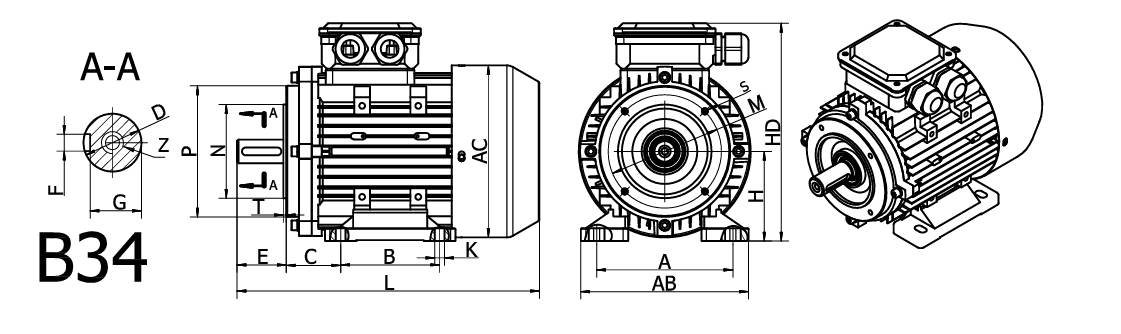

| Frame Size | Mounting Dimensions | Overall Dimensions | ||||||||||||||||||
| B5 | ||||||||||||||||||||
| A B C D E F G H K Z P M N S T | AB AC AD HD L | |||||||||||||||||||
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | M12x28 | 300 | 265 | 230 | 4-Φ15 | 4 | 248 | 255 | 187 | 319 | 500 |
