| Rated Output Power | 2.2KW/3HP |
| Rated Torque | 1500RPM |
| Rated Voltage | 220/380v,230/400V,380V/660V,400/690V,220/440V,230/460V or Customized |
| Rated Frequency | 50Hz,60Hz or 50/60Hz |
| Duty Type | S1 Continuous = |
| Insulation Class | F or H |
| Protection Class | IP54 or IP55 |
| Cooling Method | IC411 |
| Ambient Temperature | -15~40℃. |
| Altitude | Up to 1000m Above Sea Level |
| Colour | Black,Blue,Grey |
|
Type |
Rated Output |
Rated Speed rpm |
Efficiency (%) |
75% Efficiency at 75% load |
50% Efficiency at 50% load |
Power factor cosΦ |
Rated current |
Rated Torque (N.m) |
Ts/Tn |
Tmax/Tn |
ls/In |
ALU Weight (kg) |
C/I Weigh (kg) |
|||
| kW | Hp | 380V | 400V | 415V | ||||||||||||
| HM1-100L1-4 | 2.2 | 3 | 1390 | 79.7 | 79.7 | 78.1 | 0.81 | 5.18 | 4.92 | 4.74 | 15.1 | 2.3 | 2.3 | 7 | 21 | 30 |
|

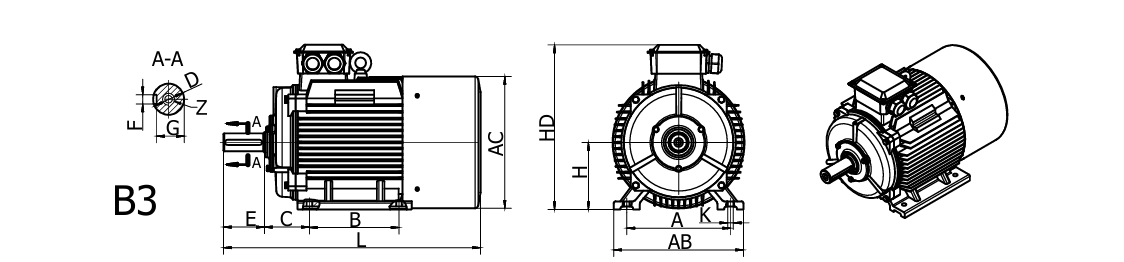

Frame Size |
Overall Dimensions |
|||||||||||||||||||
| B5 | ||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10x22 | 250 | 215 | 180 | 4-Φ15 | 4 | 192 | 193 | 145 | 245 | 370 |
