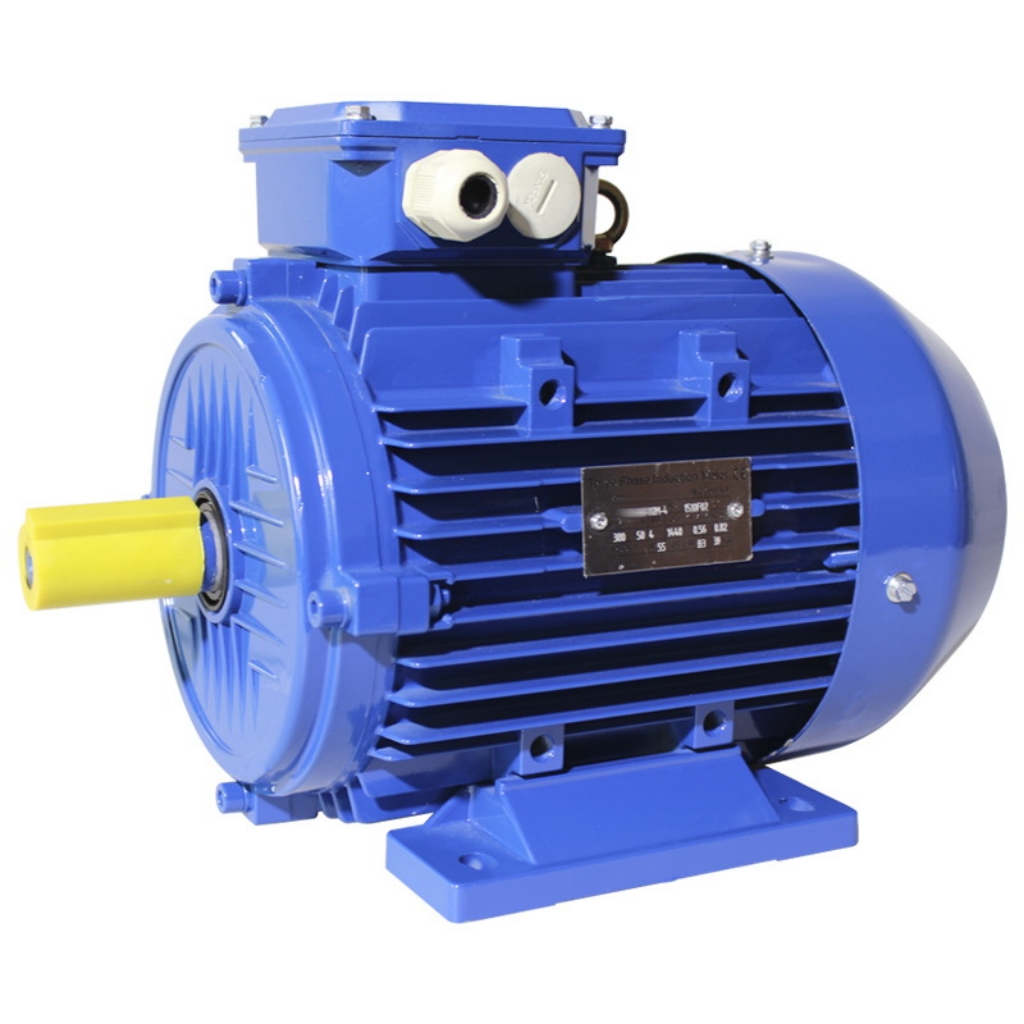

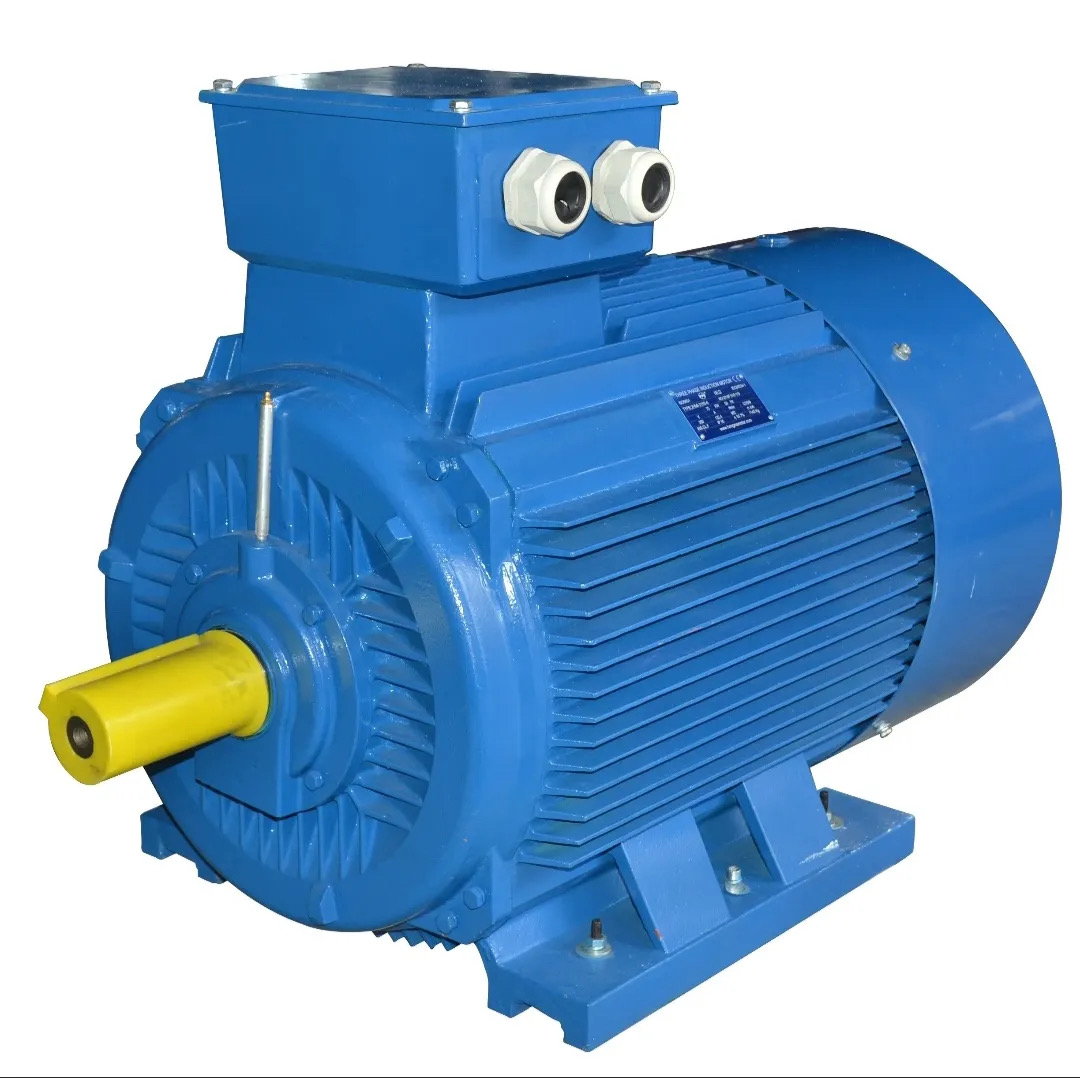

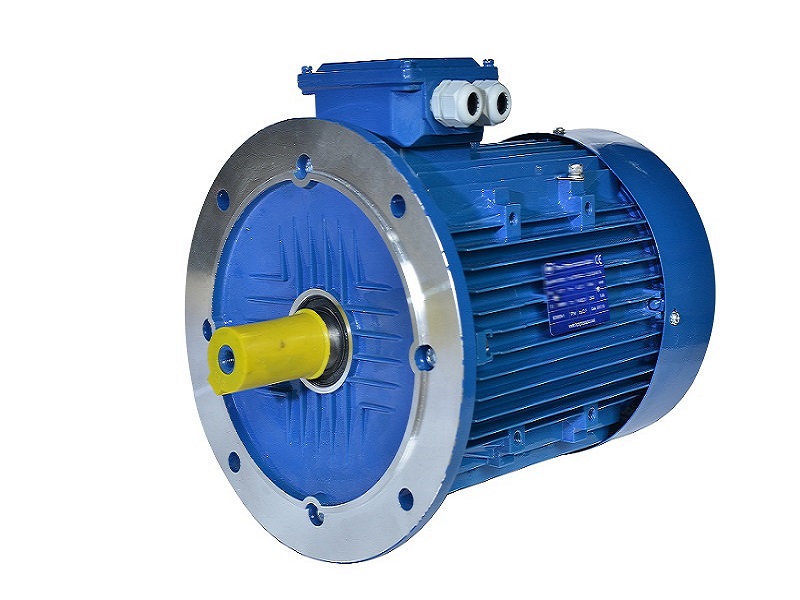

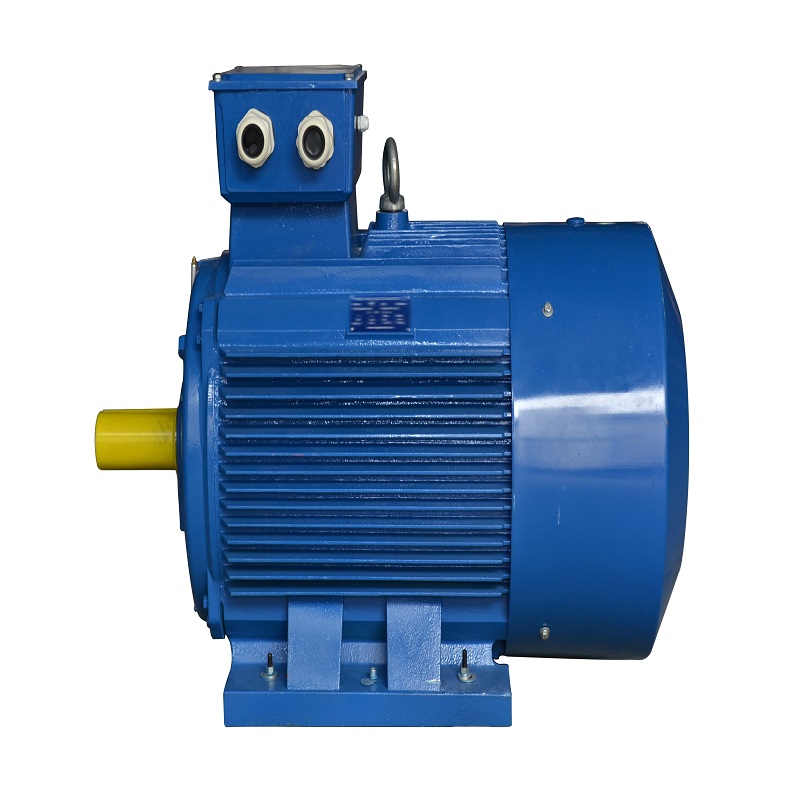

Name: Highest Premium Efficiency Asynchronous Electric Motor
Rating: 0 (0 reviews)

Product Category

Speak to One of Our Experts

Name can't be empty

Email error!

Message can't be empty

Send Message

Description

Reviews

Rated Voltage	220/380V, 230/400V, 380/660V, 400/690V or customized
Rated Output Power	0.12KW-315KW
Rated Speed	750RPM 1000RPM 1500RPM 3000RPM
Rated Frequency	50HZ,60HZ or 50/60HZ
Connection	Star for 3kW and below
Connection	Delta for 4KW and above
Duty Type	S1 Continuous
Cooling Method	IC411
Protection Class	IP54 or IP55
Ambient Temperature	-15~40°C
Altitude	Up to 1000m Above Sea Level
Color	Blue, Black or Grey

HM5 Series TECHNICAL DATA
TYPE	Frame Size	Rated Output	Rated Speed	Efficiency	Power Factor	Rated current(A)			Ts/Tn	Tmax/Tn	Is/In	C/I	ALU
TYPE	Frame Size	（kW)	(rpm)	（%）	Cosφ	380V	400V	415V	Ts/Tn	Tmax/Tn	Is/In	(Kg)	(Kg)
HM5	80M1-2	0.75	2910	86.3	0.82	1.61	1.53	1.47	2.3	2.3	8.5	23	12
HM5	80M2-2	1.1	2920	87.8	0.83	2.29	2.18	2.10	2.2	2.3	9	26	14
HM5	90S-2	1.5	2930	88.9	0.84	3.05	2.90	2.79	2.2	2.3	9	31	17
HM5	90L-2	2.2	2930	90.2	0.85	4.36	4.14	3.99	2.2	2.3	9.5	37	19
HM5	100L-2	3	2935	91.1	0.87	5.75	5.46	5.27	2.2	2.3	9.5	48	30
HM5	112M-2	4	2940	91.8	0.88	7.52	7.15	6.89	2.2	2.3	9.5	59	40
HM5	132S1-2	5.5	2945	92.6	0.88	10.25	9.74	9.39	2.0	2.3	9.5	90	56
HM5	132S2-2	7.5	2950	93.3	0.88	13.9	13.2	12.7	2.0	2.3	9.5	97	64
HM5	160M1-2	11	2960	94	0.89	20.0	19.0	18.3	2.0	2.3	9.5	161	99
HM5	160M2-2	15	2960	94.5	0.89	27.1	25.7	24.8	2.0	2.3	9.5	175
HM5	160L-2	18.5	2960	94.9	0.89	33.3	31.6	30.5	2.0	2.3	9.5	211
HM5	180M-2	22	2965	95.1	0.89	39.5	37.5	36.2	2.0	2.3	9.5	257
HM5	200L1-2	30	2970	95.5	0.89	53.6	50.9	49.1	2.0	2.3	9	335
HM5	200L2-2	37	2970	95.8	0.89	69.5	62.6	60.4	2.0	2.3	9	362
HM5	225M-2	45	2975	96	0.90	79.1	75.2	72.5	2.0	2.3	9	445
HM5	250M-2	55	2975	96.2	0.90	96.5	91.7	88.4	2.0	2.3	9	585
HM5	280S-2	75	2980	96.5	0.90	131	125	120	1.8	2.3	8.5	780
HM5	280M-2	90	2982	96.6	0.90	157	149	144	1.8	2.3	8.5	858
HM5	315S-2	110	2980	96.8	0.90	192	182	176	1.8	2.3	8.5	1342
HM5	315M-2	132	2980	96.9	0.90	230	218	211	1.8	2.3	8.5	1498
HM5	315L1-2	160	2980	97	0.91	275	262	252	1.8	2.3	8.5	1591
HM5	315L2-2	200	2980	97.2	0.91	344	326	315	1.8	2.2	8.5	1685
HM5	802-4	0.75	1430	88.2	0.75	1.72	1.64	1.58	2.3	2.3	8.5	23	14
HM5	90S-4	1.1	1445	89.5	0.76	2.46	2.33	2.25	2.3	2.3	8.5	30	17
HM5	90L-4	1.5	1450	90.4	0.77	3.27	3.11	3.00	2.3	2.3	9	36	20
HM5	100L1-4	2.2	1455	91.4	0.81	4.51	4.29	4.13	2.3	2.3	9	47	30
HM5	100L2-4	3	1455	92.1	0.82	6.04	5.73	5.53	2.3	2.3	9.5	51	34
HM5	112M-4	4	1460	92.8	0.82	7.99	7.59	7.31	2.2	2.3	9.5	67	42
HM5	132S-4	5.5	1470	93.4	0.83	10.80	10.20	9.87	2.0	2.3	9.5	94	59
HM5	132M-4	7.5	1470	94.0	0.84	14.4	13.7	13.2	2.0	2.3	9.5	108	62
HM5	160M-4	11	1475	94.6	0.85	20.8	19.7	19.0	2.2	2.3	9.5	167
HM5	160L-4	15	1475	95.1	0.86	27.9	26.5	25.5	2.2	2.3	9.5	203
HM5	180M-4	18.5	1480	95.3	0.86	34.3	32.6	31.4	2.0	2.3	9.5	253
HM5	180L-4	22	1480	95.5	0.86	40.7	38.7	37.3	2.0	2.3	9.5	273
HM5	200L-4	30	1480	95.9	0.86	55.3	52.5	50.6	2.0	2.3	9	354
HM5	225S-4	37	1485	96.1	0.86	68.0	64.6	62.3	2.0	2.3	9	440
HM5	225M-4	45	1485	96.3	0.86	82.6	78.4	75.6	2.0	2.3	9	491
HM5	250M-4	55	1485	96.5	0.86	101	95.7	92.2	2.2	2.3	9	608
HM5	280S-4	75	1490	96.7	0.88	134	127	123	2.0	2.3	8.5	819
HM5	280M-4	90	1490	96.9	0.88	160	152	147	2.0	2.3	8.5	920
HM5	315S-4	110	1490	97	0.89	194	184	177	2.0	2.2	8.5	1404
HM5	315M-4	132	1490	97.1	0.89	232	220	212	2.0	2.2	8.5	1560
HM5	315L1-4	160	1490	97.2	0.89	281	267	257	2.0	2.2	8.5	1669
HM5	315L2-4	200	1490	97.4	0.90	347	329	317	2.0	2.2	8.5	1778
HM5	90S-6	0.75	935	85.7	0.71	1.87	1.78	1.71	2.0	2.1	7.5	31	17
HM5	90L-6	1.1	945	87.2	0.73	2.63	2.49	2.40	2.0	2.1	7.5	37	19
HM5	100L-6	1.5	949	88.4	0.73	3.53	3.36	3.23	2.0	2.1	7.5	45	33
HM5	112M-6	2.2	955	89.7	0.74	5.04	4.78	4.61	2.0	2.1	7.5	58	40
HM5	132S-6	3	968	90.6	0.74	6.80	6.46	6.23	2.0	2.1	7.5	83	57
HM5	132M1-6	4	968	91.4	0.74	8.99	8.54	8.23	2.0	2.1	8	100	61
HM5	132M2-6	5.5	968	92.2	0.75	12.1	11.5	11.1	2.0	2.1	8	112	67
HM5	160M-6	7.5	970	92.9	0.79	15.5	14.8	14.2	2.0	2.1	8	151
HM5	160L-6	11	970	93.7	0.80	22.3	21.2	20.4	2.0	2.1	8.5	197
HM5	180L-6	15	978	94.3	0.81	29.8	28.3	27.3	2.0	2.1	8.5	259
HM5	200L1-6	18.5	980	94.6	0.81	36.7	34.8	33.6	2.0	2.1	8.5	320
HM5	200L2-6	22	980	94.9	0.81	43.5	41.3	39.8	2.0	2.1	8.5	343
HM5	225M-6	30	980	95.3	0.83	57.6	54.7	52.8	2.0	2.1	8.3	452
HM5	250M-6	37	985	95.6	0.84	70.0	66.5	64.1	2.0	2.1	8.3	577
HM5	280S-6	45	985	95.8	0.85	84.0	79.8	76.9	2.0	2.0	8.5	764
HM5	280M-6	55	985	96	0.86	101	96.2	92.7	2.0	2.0	8.5	842
HM5	315S-6	75	988	96.3	0.84	141	134	129	2.0	2.0	8	1326
HM5	315M-6	90	988	96.5	0.85	167	158	153	2.0	2.0	8	1498
HM5	315L1-6	110	988	96.6	0.85	204	193	186	2.0	2.0	8	1654

HMA5 OUTLINE DIMENSIONS -B3,B5 AND B35

TYPE	FS	MOUNTING DIMENSIONS										B5					OVERALL DIMENSIONS
TYPE	FS	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	AB	AC	AD	HD	L
HMA5	80	125	100	50	19	40	6	15.5	80	10	M6×16	200	165	130	12	3.5	165	153	122	202	300
HMA5	90S	140	100	56	24	50	8	20	90	10	M8×19	200	165	130	12	3.5	180	172	135	225	326
HMA5	90L	140	125	56	24	50	8	20	90	10	M8×19	200	165	130	12	3.5	180	172	135	225	381
HMA5	100L	160	140	63	28	60	8	24	100	12	M10×22	250	215	180	15	4	200	193	145	245	428
HMA5	112M	190	140	70	28	60	8	24	112	12	M10×22	250	215	180	15	4	230	223	165	277	440
HMA5	132S	216	140	89	38	80	10	33	132	12	M12×28	300	265	230	15	4	270	255	187	319	510
HMA5	132M	216	178	89	38	80	10	33	132	12	M12×28	300	265	230	15	4	270	255	187	319	550

HMA5 OUTLINE DIMENSIONS -B14 AND B34

TYPE	FS	MOUNTING DIMENSIONS										B14-A					OVERALL DIMENSIONS
TYPE	FS	A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	AB	AC	AD	HD	L
HMA5	80	125	100	50	19	40	6	15.5	80	10	M6×16	120	100	80	4-M6	3	165	153	122	202	300
HMA5	90S	140	100	56	24	50	8	20	90	10	M8×19	140	115	95	4-M8	3	180	172	135	225	326
HMA5	90L	140	125	56	24	50	8	20	90	10	M8×19	140	115	95	4-M8	3	180	172	135	225	381
HMA5	100L	160	140	63	28	60	8	24	100	12	M10×22	160	130	110	4-M8	3.5	200	193	145	245	428
HMA5	112M	190	140	70	28	60	8	24	112	12	M10×22	160	130	110	4-M8	3.5	230	223	165	277	440
HMA5	132S	216	140	89	38	80	10	33	132	12	M12×28	200	165	130	4-M10	3.5	270	255	187	319	510
HMA5	132M	216	178	89	38	80	10	33	132	12	M12×28	200	165	130	4-M10	3.5	270	255	187	319	550

HMI5 OUTLINE DIMENSIONS -B3,B5 AND B35

Eff%	FRAME SIZE	MOUNTING DIMENSIONS															OVERALL DIMENSIONS
												B5					OVERALL DIMENSIONS
		A	B	C	D	E	F	G	H	K	Z	P	M	N	S	T	AB	AC	AD	HD	L
HMI5	80M	125	100	50	19	40	6	15.5	80	10	M6×16	200	165	130	4-Φ12	3.5	165	153	122	202	300
HMI5	90S	140	100	56	24	50	8	20	90	10	M8×19	200	165	130	4-Φ12	3.5	180	172	135	225	326
HMI5	90L	140	125	56	24	50	8	20	90	10	M8×19	200	165	130	4-Φ12	3.5	180	172	135	225	381
HMI5	100L	160	140	63	28	60	8	24	100	12	M10×22	250	215	180	4-Φ15	4	200	193	145	245	428
HMI5	112M	190	140	70	28	60	8	24	112	12	M10×22	250	215	180	4-Φ15	4	230	223	165	277	440
HMI5	132S	216	140	89	38	80	10	33	132	12	M12×28	300	265	230	4-Φ15	4	270	255	187	319	510
HMI5	132M	216	178	89	38	80	10	33	132	12	M12×28	300	265	230	4-Φ15	4	270	255	187	319	550
HMI5	160M	254	210	108	42	110	12	37	160	15	M16×36	350	300	250	4-Φ19	5	320	330	255	415	730
HMI5	160L	254	254	108	42	110	12	37	160	15	M16×36	350	300	250	4-Φ19	5	320	330	255	415	760
HMI5	180M	279	241	121	48	110	14	42.5	180	15	M16×36	350	300	250	4-Φ19	5	355	352	265	445	770
HMI5	180L	279	279	121	48	110	14	42.5	180	15	M16×36	350	300	250	4-Φ19	5	355	352	265	445	800
HMI5	200L	318	305	133	55	110	16	49	200	19	M20×42	400	350	300	4-Φ19	5	395	394	315	515	860
HMI5	225S(4-8P)	356	286	149	60	140	18	53	225	19	M20×42	450	400	350	8-Φ19	5	435	442	335	560	830
HMI5	225M(2P)	356	311	149	55	110	16	49	225	19	M20×42	450	400	350	8-Φ19	5	435	442	335	560	830
HMI5	225M(4-8P)	356	311	149	60	140	18	53	225	19	M20×42	450	400	350	8-Φ19	5	435	442	335	560	860
HMI5	250M(2P)	406	349	168	60	140	18	53	250	24	M20×42	550	500	450	8-Φ19	5	490	481	375	625	990
HMI5	250M(4-8P)	406	349	168	65	140	18	58	250	24	M20×42	550	500	450	8-Φ19	5	490	481	375	625	990
HMI5	280S(2P)	457	368	190	65	140	18	58	280	24	M20×42	550	500	450	8-Φ19	5	550	550	400	680	990
HMI5	280M(2P)	457	419	190	65	140	18	58	280	24	M20×42	550	500	450	8-Φ19	5	550	550	400	680	1040
HMI5	280S(4-8P)	457	368	190	75	140	20	67.5	280	24	M20×42	550	500	450	8-Φ19	5	550	550	400	680	990
HMI5	280M(4-8P)	457	419	190	75	140	20	67.5	280	24	M20×42	550	500	450	8-Φ19	5	550	550	400	680	1040
HMI5	315S(2P)	508	406	216	65	140	18	58	315	28	M20×42	660	600	550	8-Φ24	6	635	600	540	855	1180
HMI5	315M(2P)	508	457	216	65	140	18	58	315	28	M20×42	660	600	550	8-Φ24	6	635	600	540	855	1290
HMI5	315L(2P)	508	508	216	65	140	18	58	315	28	M20×42	660	600	550	8-Φ24	6	635	600	540	855	1290
HMI5	315S(4-10P)	508	406	216	80	170	22	71	315	28	M20×42	660	600	550	8-Φ24	6	635	600	540	855	1210
HMI5	315M(4-10P)	508	457	216	80	170	22	71	315	28	M20×42	660	600	550	8-Φ24	6	635	600	540	855	1320
HMI5	315L(4-10P)	508	508	216	80	170	22	71	315	28	M20×42	660	600	550	8-Φ24	6	635	600	540	855	1320
