| Rated Voltage | 220/380V, 230/400V, 380/660V, 400/690V or customized |
| Rated Output Power | 5.5KW/7.5HP |
| Rated Speed | 1500rpm |
| Rated Frequency | 50HZ, 60HZ or 50/60HZ |
| Connection | Star for 3KW and below |
| Delta for 4KW and above | |
| Duty Type | S1 Continuous |
| Cooling Method | IC411 |
| Insulation Class | IP54 or IP55 |
| Ambient Temperature | -15~40℃ |
| Altitude | Up to 1000m Above Sea Level |
| Color | Blue, Black or Grey |

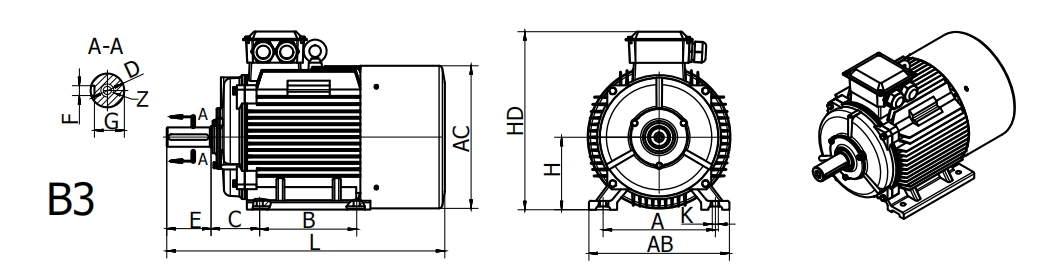

| Type | FRAME SIZE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS | |||||||||||||||||||
| B5 | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | Z | P | M | N | S | T | AB | AC | AD | HD | L | |||
| HMI3 | HMI4 | 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | M12x28 | 300 | 265 | 230 | 4-Φ15 | 4 | 270 | 255 | 187 | 319 | 510 |
| Type | Ouput | Speed | Efficiency | Power factor |
Rated current | Ts/Tn | Tmax/Tn | Is/ln | ALU | C/I | |||
| (kW) | (rpm) | (%) | Cosφ | 380V | 400V | 415V | (Kg) | (Kg) | |||||
| HM4 | 132S1-2 | 5.5 | 2945 | 91.5 | 0.88 | 10.4 | 9.9 | 9.5 | 2 | 2.3 | 7.8 | 51 | 75 |
