5hp 4kw Single Phase Electric Motors 3hp Single Phase Asynchronous Electric Motor Price 220V YL YC YCL

Introducing, the powerful and reliable HONGMA’s 5hp 4kw Single Phase Electric Motor. This motor is designed to provide efficient performance for a wide range of applications. Whether you need to power agricultural equipment, woodworking machinery, or other types of industrial machinery, this motor is up to the task.

With a 220V voltage rating, this motor is compatible with most standard electrical systems. The single-phase design makes it easy to install and operate, while the 5hp 4kw power rating ensures that it can handle even the toughest tasks with ease. Plus, the motor is designed to be energy-efficient, helping you save money on electricity costs over time.

In addition to the 5hp motor, we also offer a 3hp Single Phase Asynchronous Electric Motor from HONGMA. This motor is perfect for smaller applications where less power is needed. With a sturdy construction and high-quality components, this motor is built to last and provide years of reliable service.

Both motors feature a YL YC YCL design, which is known for its durability and performance. The YL design is ideal for applications where a high starting torque is required, while the YC design is perfect for continuous operation at a steady speed. The YCL design combines the best of both worlds, offering high starting torque and continuous operation capabilities.

When it comes to price, these motors offer unbeatable value. Despite their high-quality construction and performance capabilities, both the 5hp and 3hp motors are priced competitively, making them an excellent choice for budget-conscious buyers.

The HONGMA’s 5hp and 3hp Single Phase Electric Motors offer a winning combination of power, performance, and value. Whether you need to replace an existing motor or upgrade to a more efficient model, these motors are sure to meet your needs. Trust HONGMA for all of your electric motor needs

Product Description

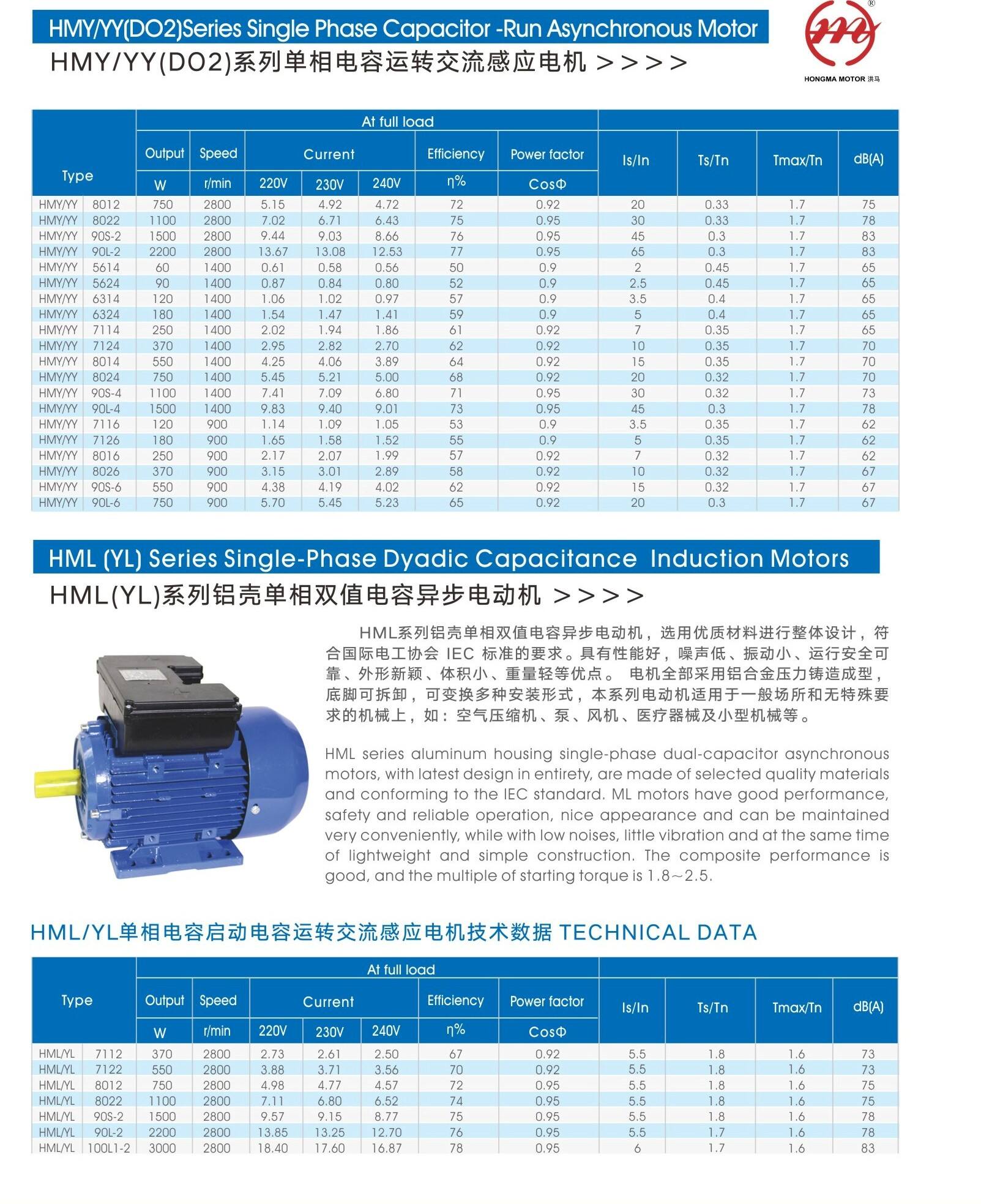

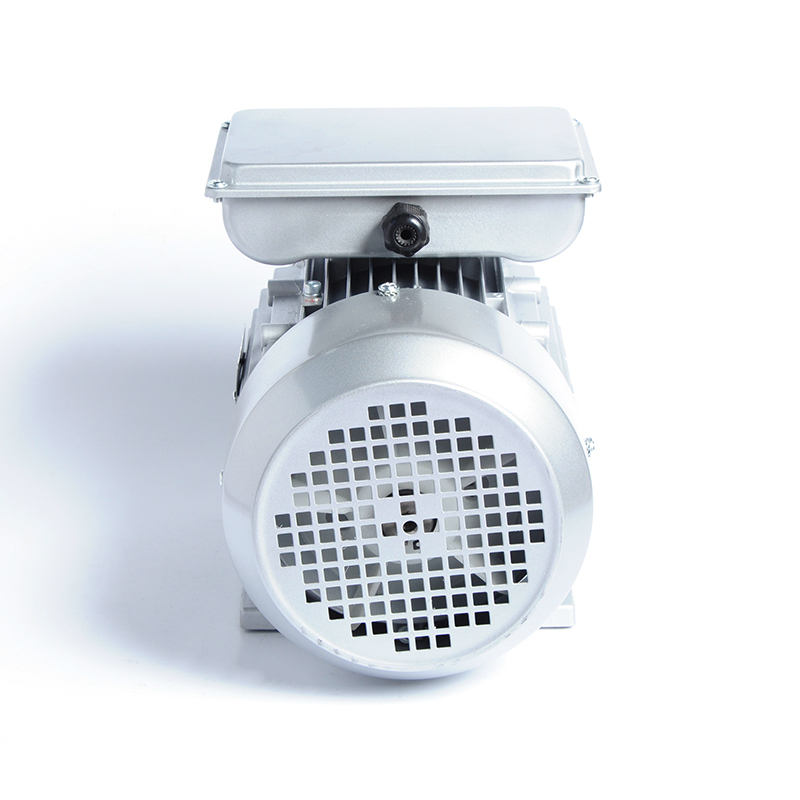

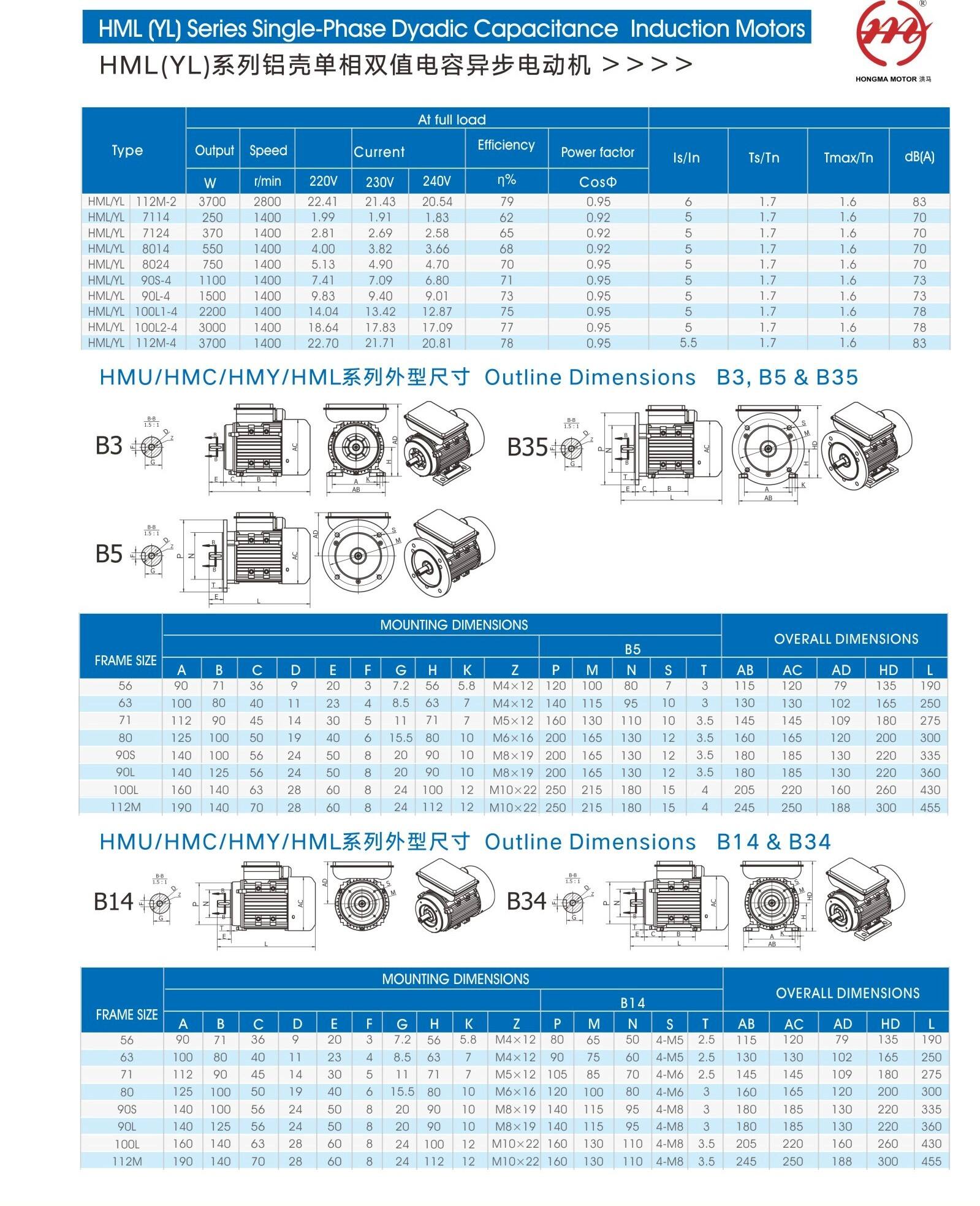

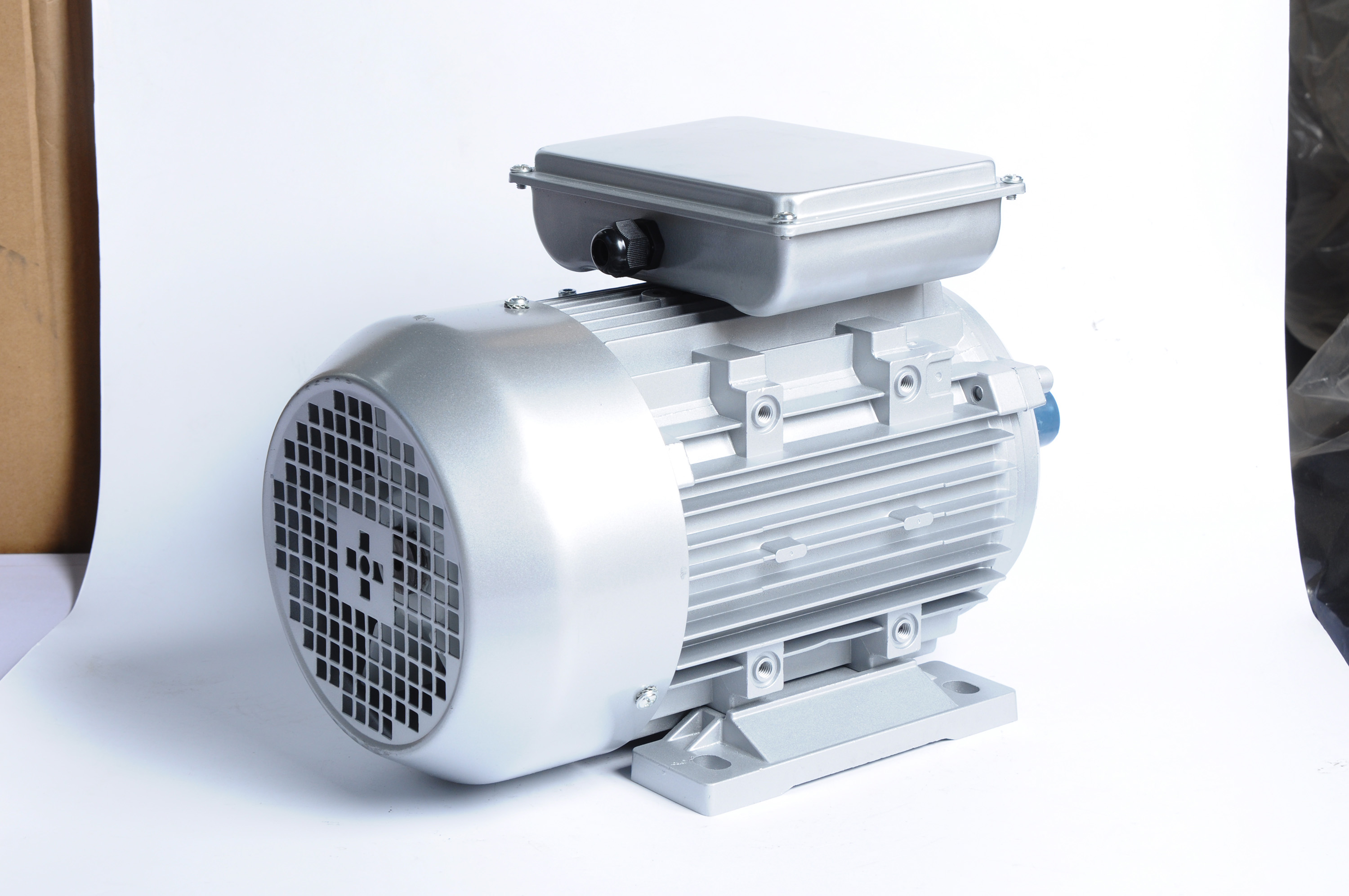

HML/YL series aluminum housing single-phase dual-capacitor asynchronous motors, with latest design in entirety, are made of selected quality materials and conforming to the IEC standard. ML motors have good performance, safety and reliable operation, nice appearance and can be maintained very conveniently, while with low noises, little vibration and at the same time of lightweight and simple construction. The composite performance is good, and the multiple of starting torque is 1.8~2.5

Product Name	SINGLE PHASE MOTOR
Housing Material	Aluminum housing
Output power	0.06kw-3.7kw
Frame SIze	71-112
Speed	2800rpm/1400rpm
Frequency	50HZ
Ambient Temperature	-20~+40 °C
Altitude	≤1000M

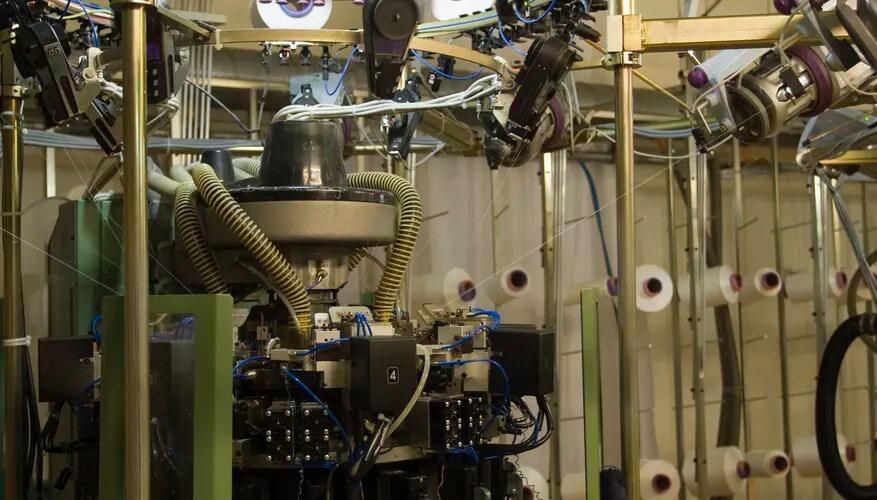

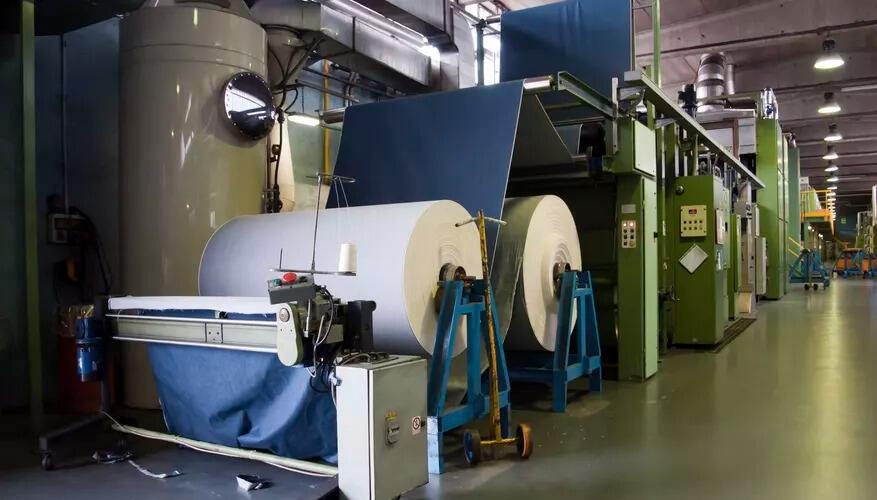

The loom motors are normally totally enclosed three-phase induction motors with high starting torque.

---------------------------------------------------------------------------------------------------------Fan cooling of the motors is also employed. The fan cooling helps to avoid the collection of cotton fluff on the motor surface.

---------------------------------------------------------------------------------------------------------The motor must be designed, taking into consideration the possible torque and current pulsations due to reciprocating motion.

--------------------------------------------------------------------------------------------------------The surface of the motor must be such that it does not collect any cotton fluff. ---------------------------------------------------------------------------------------------------------The kW rating of the motor selected must be decided taking into account the frequent starting and stopping in the duty cycle. ---------------------------------------------------------------------------------------------------------The size of the loom motor depends upon the fabric. For light fabric, motors of rating up to 1.5 kW and for heavy fabrics motors of rating. 2.2 to 3.7 kW are employed. ---------------------------------------------------------------------------------------------------------Speeds of motors are in the range of 100 to 750 rpm---------------------------------------------------------------------------------------------------------Brake motors may be used here so that motor stops automatically in case the thread breaks

Company products

Explanation of motor model expression

HM

A

EJ

2

132M

4

7.5KW

B3

Our brand Ningbo Fenghua Hongma Motor Co., Ltd

Frame Structure A:Aluminum with top Terminal Box I:Cast-Iron with top Terminal Box Y:Cast-Iron with RHS or LHS Terminal Box

Subseries Motor EJ:Brake Induction Motor VP:Frequency-Variable Speed-Regulation Motor D. DT:Multispeed Induction Motor

Efficiency class 1 :IE1, 2 :IE2, 3 :IE3

Frame Size - FS

Pole

Rated Power KW or HP

Mounting Type

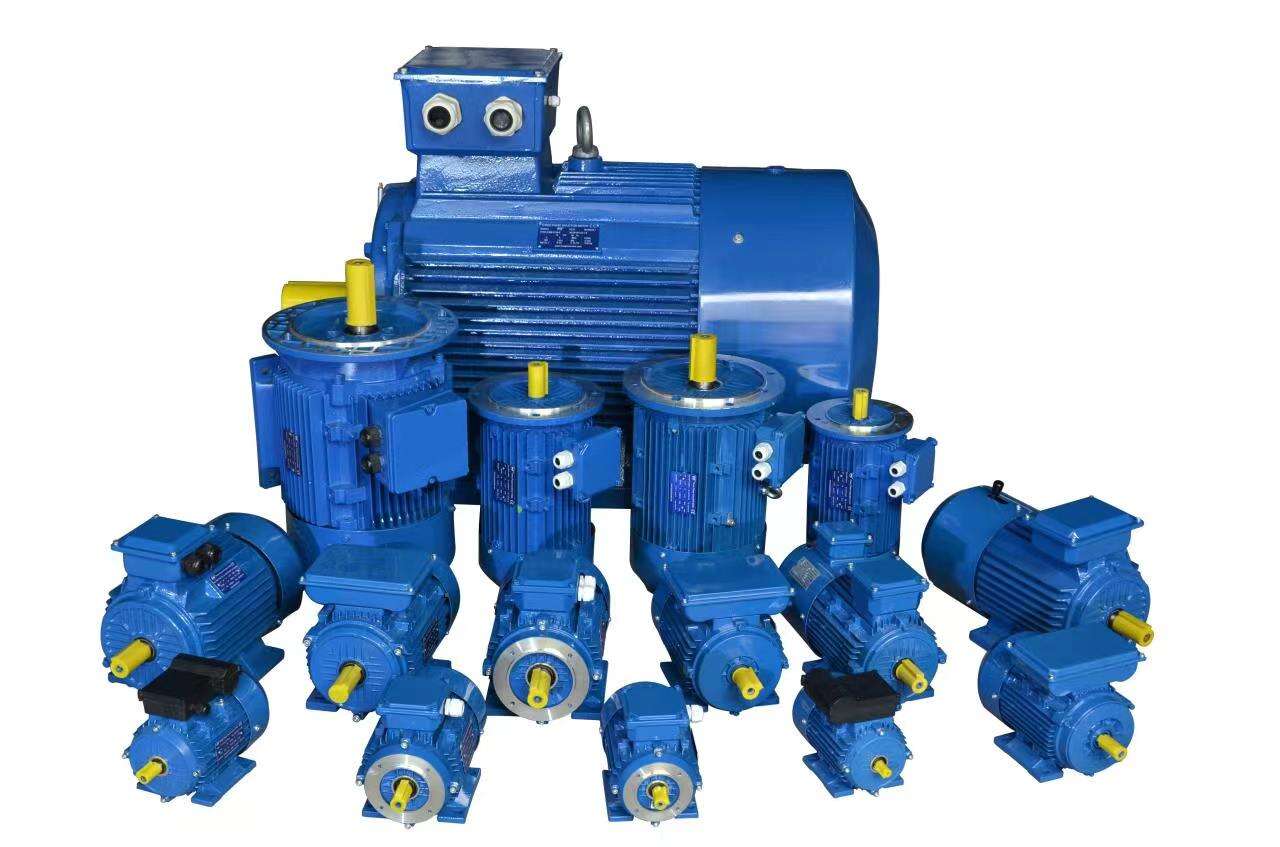

Our product line
Product series	Product Name:	Product application scenario	Advantage	Product introduction
HM1(IE1) Series	Standard Efficiency Asynchronous Electric Motor	Pumps, fans,  machine tools reducer, packaging machinery, mining machinery, construction machinery other types of transmission machinery industry	Low noise； vibration small；reliable operation and other characteristics	HMA aluminum housing motor： frame size :56mm-160mm, feet removable installation HMI iron housing motor： frame size :80mm-355mm, feet fixed. Terminal box can be chosen at top of the motor (top outlet), or Right or left - side terminal HM1 (IE1/Y/Y2/Y3) Series Motor frame size : 56mm-400mm power range: 0.06-560kw Pole:2, 4, 6, 8, 10 poles HM2 (IE2, YE2), HM3 (IE3, YE3), HM4 (IE4, YE4)  frame size:80mm-355mm, power range:0.75-315kw, Polar number:2, 4, 6 poles. HM Series MotorInsulation Protection: IP54, IP55 - IP56, IP65, IP66 optional Motor cooling method: IC411; insulation class:  F (B-level temperature rise Assessment, H-class optional); working system: S1 motor mounting dimensions： fully conform to IEC and DIN42673 standards Motor rated operating voltage： less than 1000V frequency： 50Hz；60Hz；50/60Hz; or can be customized according to requirements
HM2(IE2) Series	High Efficiency Asynchronous Electric Motor
HM3(IE3) Series	Premium Efficiency Asynchronous Electric Motor
HM4(IE4) Series	Super Premium Efficiency Asynchronous Electric Motor

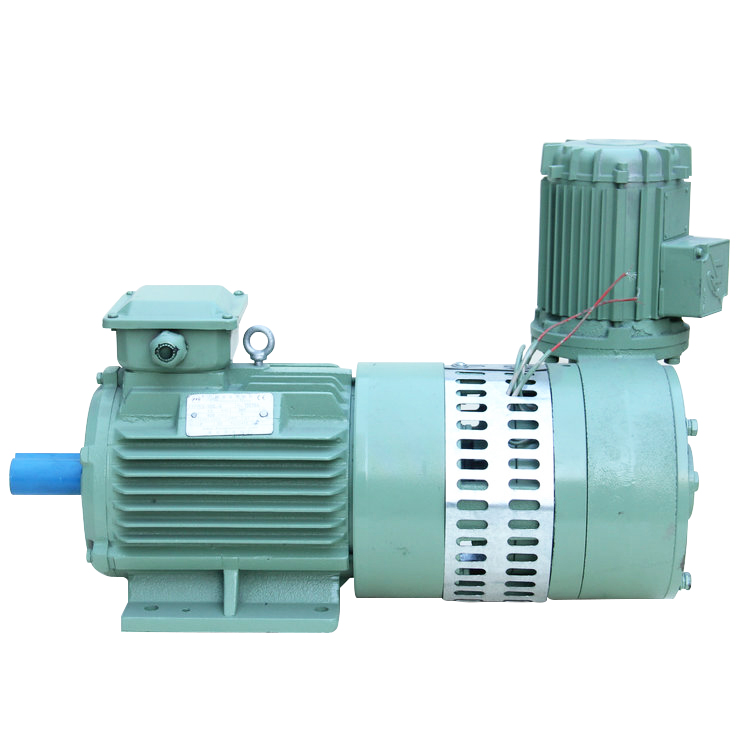

HMEJ(DC) Series	Electromagnetic Braking Three Phase Asynchronous Motor	Packaging machinery, lifting machinery, transportation equipment, food machinery, printing machinery, textile equipment and transmission equipment machinery, etc	Quick braking, simple structure, high reliability and strong versatility
HMEJ(AC) Series	AC Self-Braking Three Phase Asynchronous Motor
HMVP Series	Integrated Frequency Inverter Electric Motor	Locomotive, metallurgy, textile, printing and dyeing, transportation, chemical industry, mining and other industries, as well as energy-saving and speed regulating occasions such as fans and pumps	It has the advantages of energy saving, wide step less speed regulation range, low noise and small vibration
HMU/YU(BO2) Series	Single Phase Start Resistance Asynchronous Motor	Safety requirements standard GB12350-2000 design	Long service life, reasonable structure, convenient maintenance, high efficiency, low temperature rise, low noise, low vibration and reliable operation
HMC/YC(CO2) Series	Single Phase Capacitor -Start Asynchronous Motor	Capacitor starting ; running are adopted; the design with large starting torque ; stable running ; rotating is concentrated	It has good starting and running performance, small volume, low weight, low temperature rise, low noise and strong overload capacity
HMY/YY(DO2) Series	Single Phase Capacitor -Run Asynchronous Motor	Household appliances, fans, pumps, medical devices, etc
HML (YL) Series	Single-Phase Dyadic Capacitance Induction Motors	Air compressors, pumps, fans, medical devices and small machinery, etc	Good performance, low noise, small vibration, safe and reliable operation, novel appearance, small volume and light weight
HMD/HMDT series	Variable Speed Electric Motors	It is used for all kinds of mechanical equipment requiring step speed regulation	It has the characteristics of small volume, light weight, low noise, good starting performance, reliable operation and convenient maintenance
HMG series	Gost standard three phase asynchronous motor

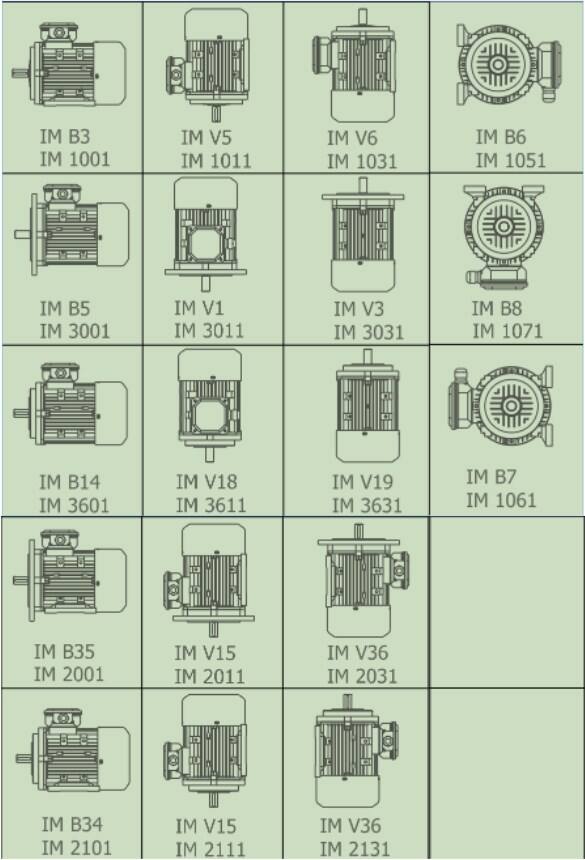

TYPE OF INSTALLATION

Postitioning of the motor at the place of work, in relation to the line of axis (horizontal or vertical) and the fixing devices

The table shows the most widespread methods of installation in relation to the construction shape in conformity with IEC34-7, codes I and II are given, relative to the two systems of classification used

Motor bearing
Our motors are equipped as standard with bearings from C&U, NSK, SKF etc
All bearings are protected from the external environment with oil seals in the drive and non drive end
Grease nipple for frame size 180 and up
FRAME NO.	DRIVE END			NON-DRIVE END			OIL SEAL
		2P	4.6.8P	2P	4.6.8P	2P	4.6.8P
56	6201			6201			12×25×7
63	6201			6201			12×25×7
71	6202			6202			15×26×7
80	6204			6204			20×35×7
90	6205			6205			25×40×7
100	6206			6206			30×45×7
112	6306			6306			30×45×7
132	6308			6308			40×62×7
160	6309			6309			45×62×8
180	6311			6311			55×70×8
200	6312			6312			60×75×9
225	6313			6313			65×80×10
250	6314			6314			70×85×10
280	6314	6317	6314	6317	70×85×10	85×100×10
315	6317	6319	6317	6319	85×100×10	95×110×10
355	6319	6322	6319	6322	95×110×10	110×130×13
400	6219	6326	6219	6326	95×110×10	130×160×13

Motor vibration
FRAME NO.	≤132			132~225			＞225~400
r/min Synchronous Speed	600~1800	1800~3600	600~1800	1800~3600	600~1800	1800~3600
Vibration	mm/s Effective Value of Vibration Speed mm/s
N	1.8			2.8			3.5
R	0.71	1.12	1.12	1.8	1.8	2.8
S	0.45	0.71	0.71	1.12	1.12	1.8

Motor ordering instructions
Motor Series				Frame Size
Output Power				Speed - rpm
Voltage/Frequency				Connection
Shaft	□ Standard			□ Special(Drawing):
Install Mounting				Flange Type
Color	□RAL	□ Epoxy Primer	□ Unpainted
TerminalBox	□Top	□ Left side	□ Right side
ServiceDuty S				Insulation class
Protection □PTC	□ PTO □	other	IP

Detailed Images



Machine Parts

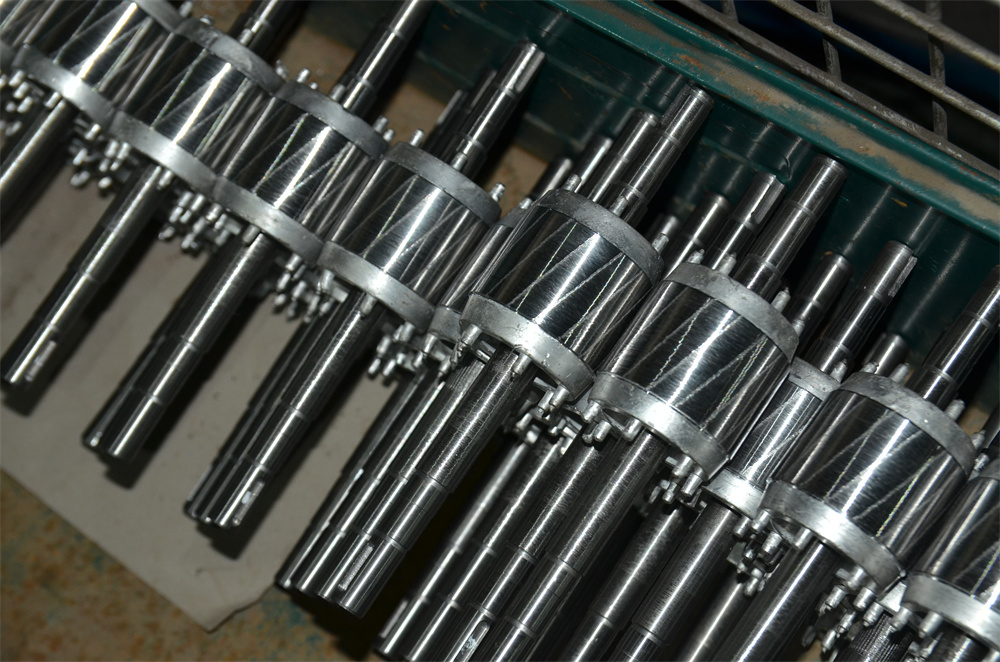

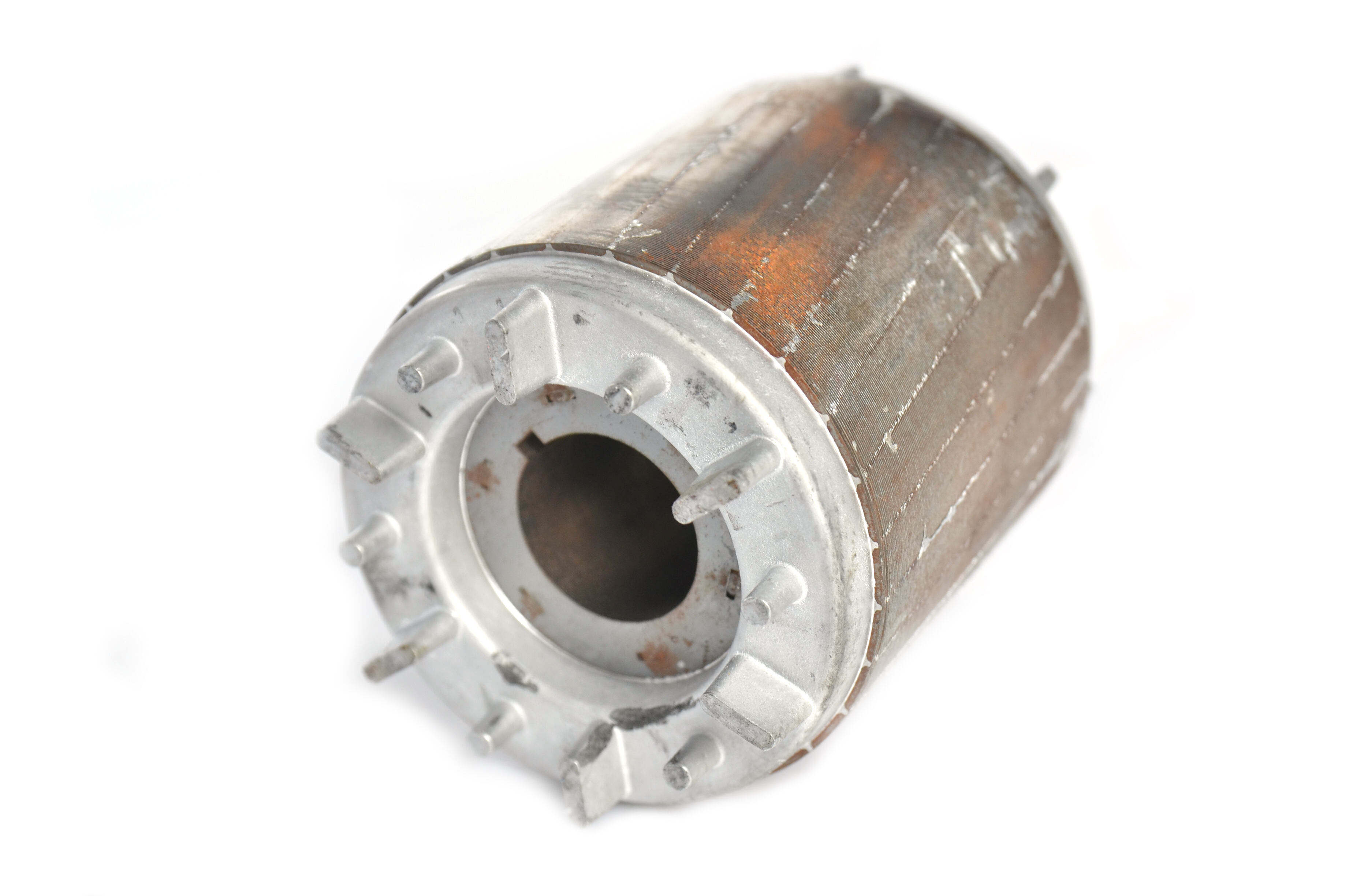

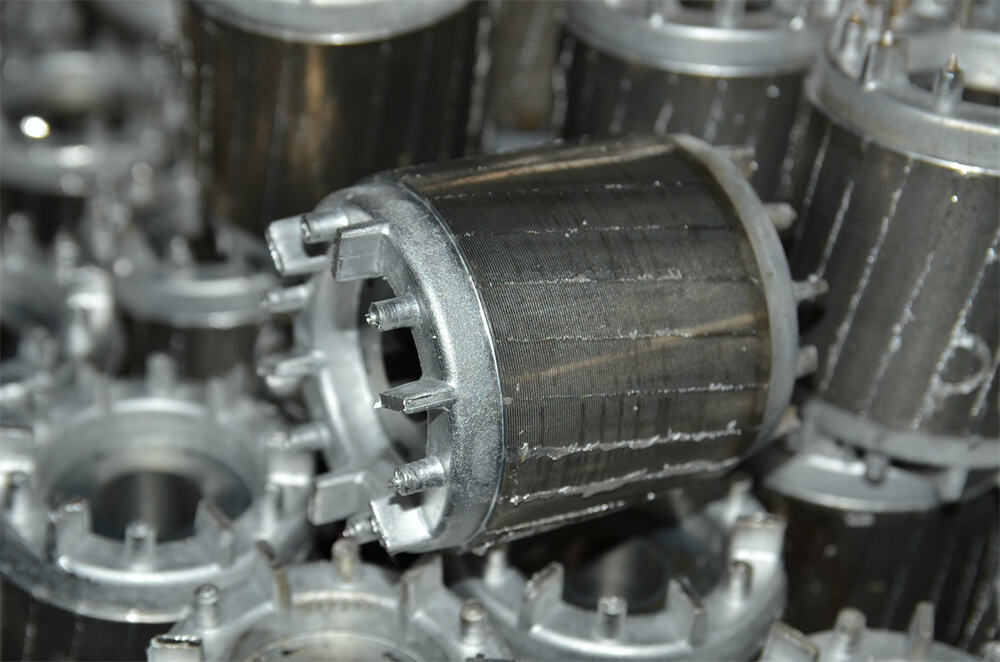

Name: Casted Rotor

Brand: Hongma

Original: China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift







Main Features

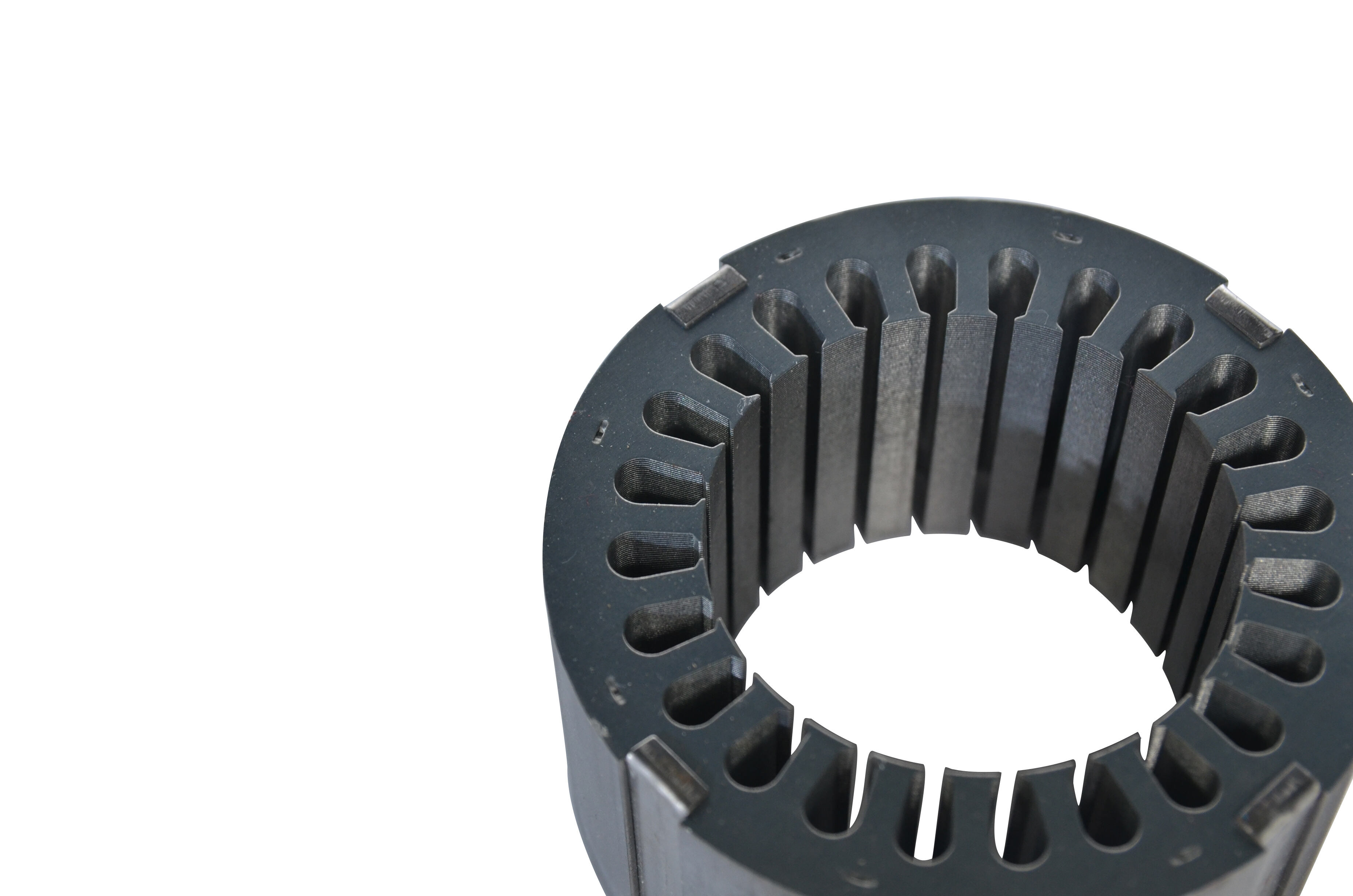

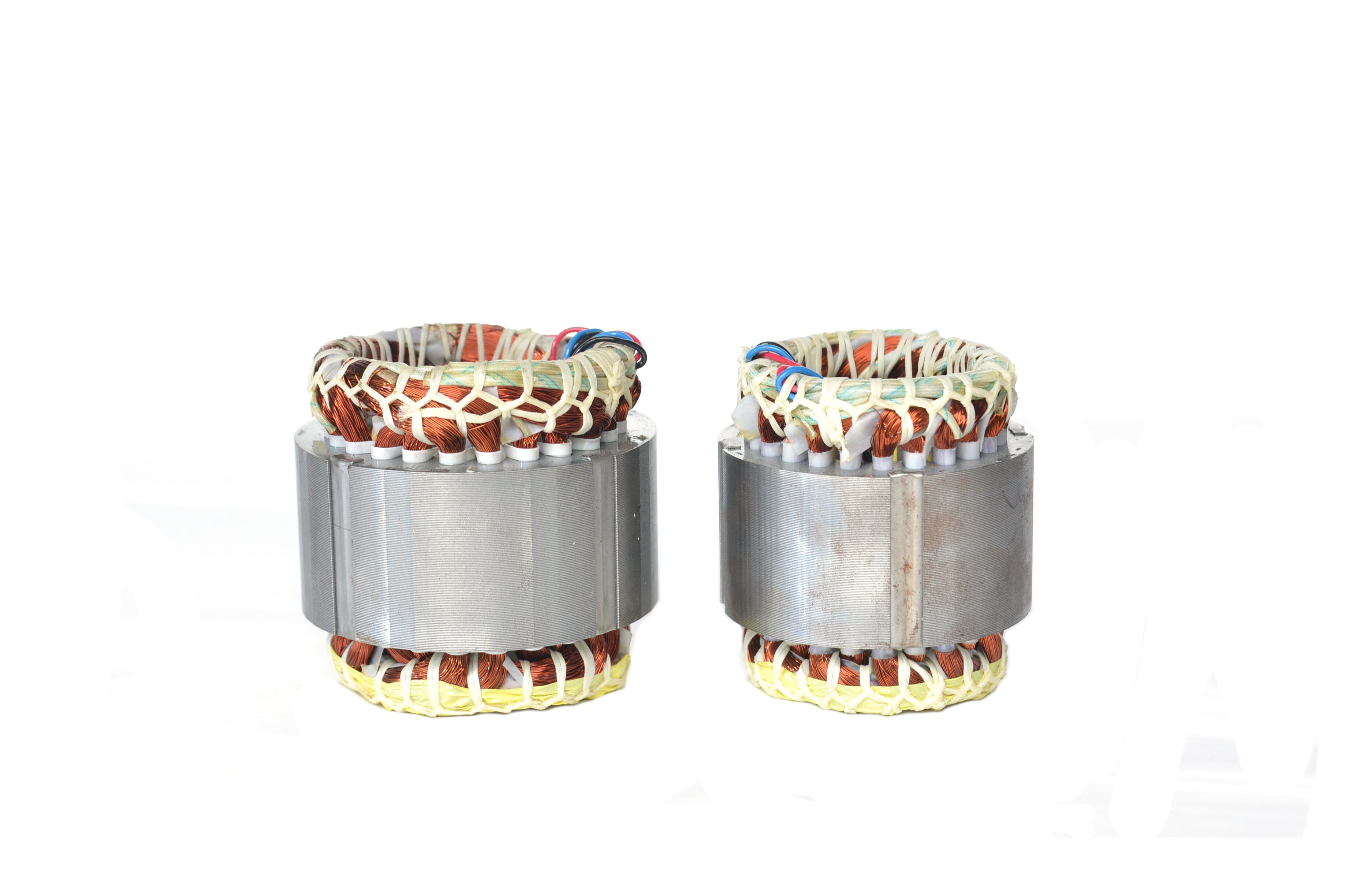

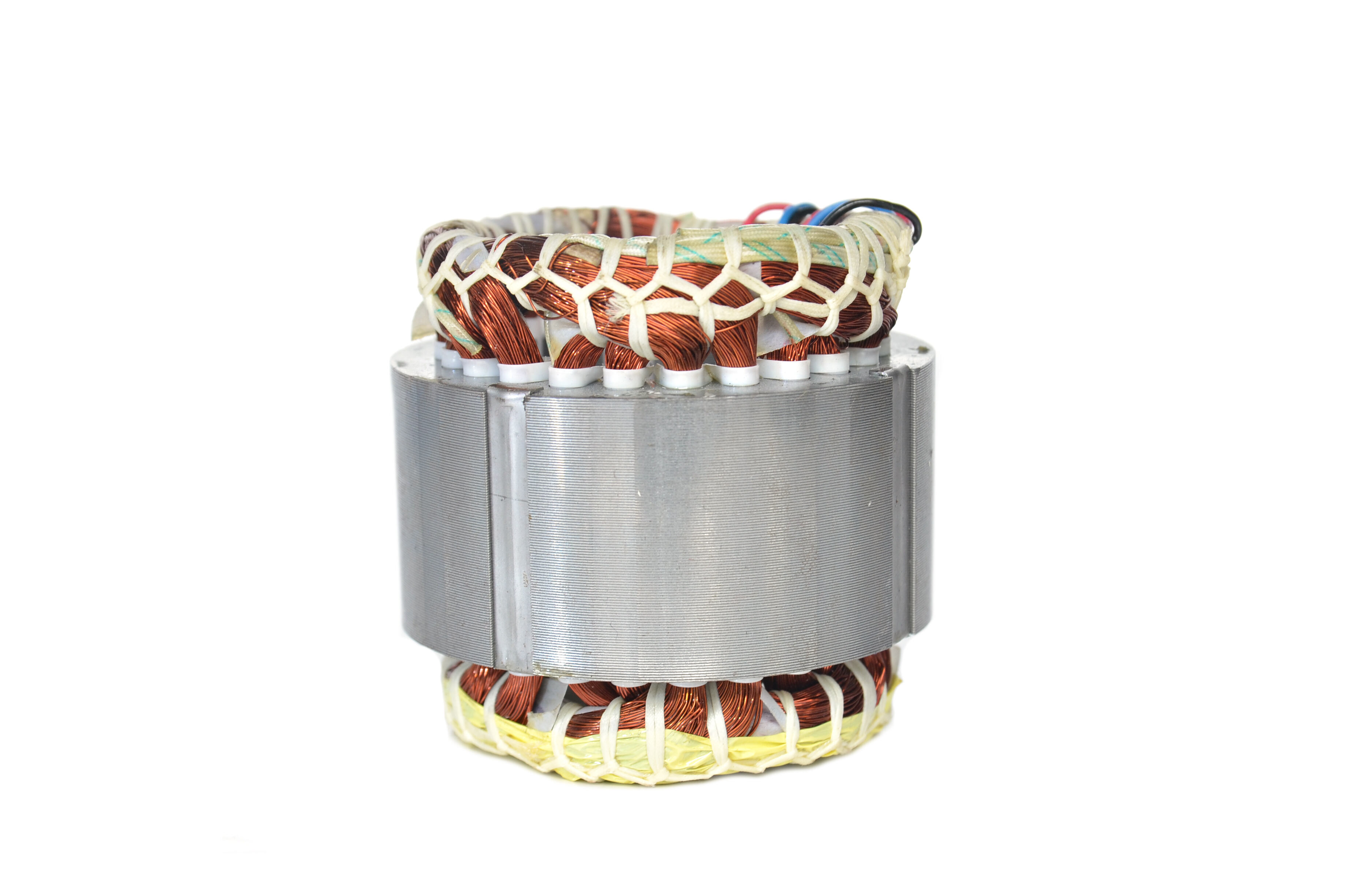

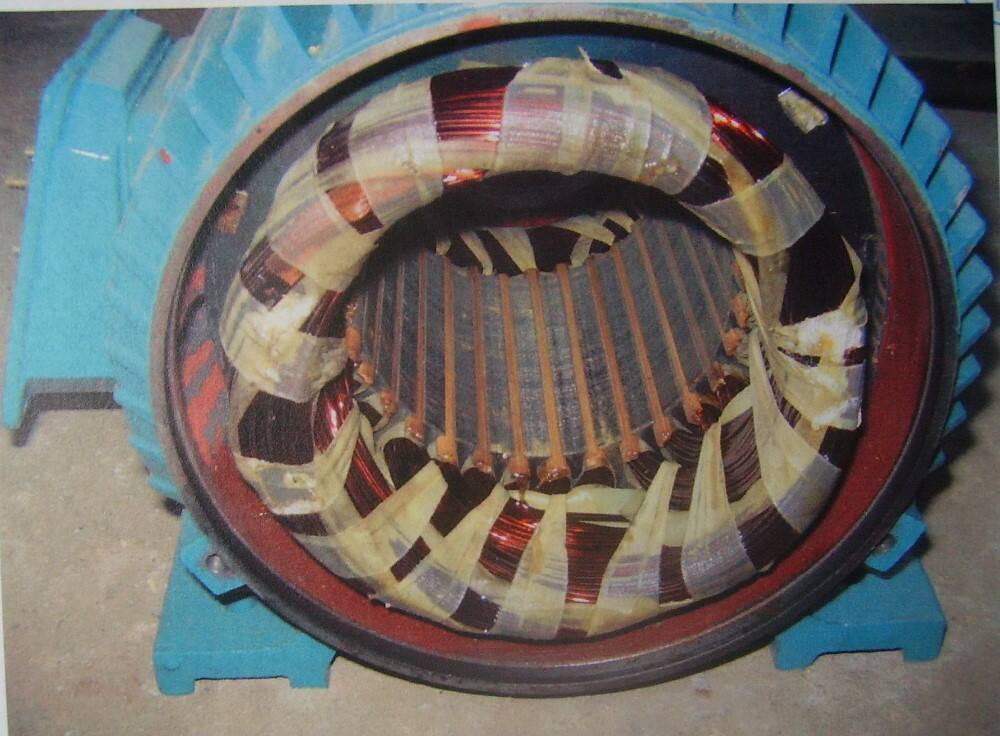

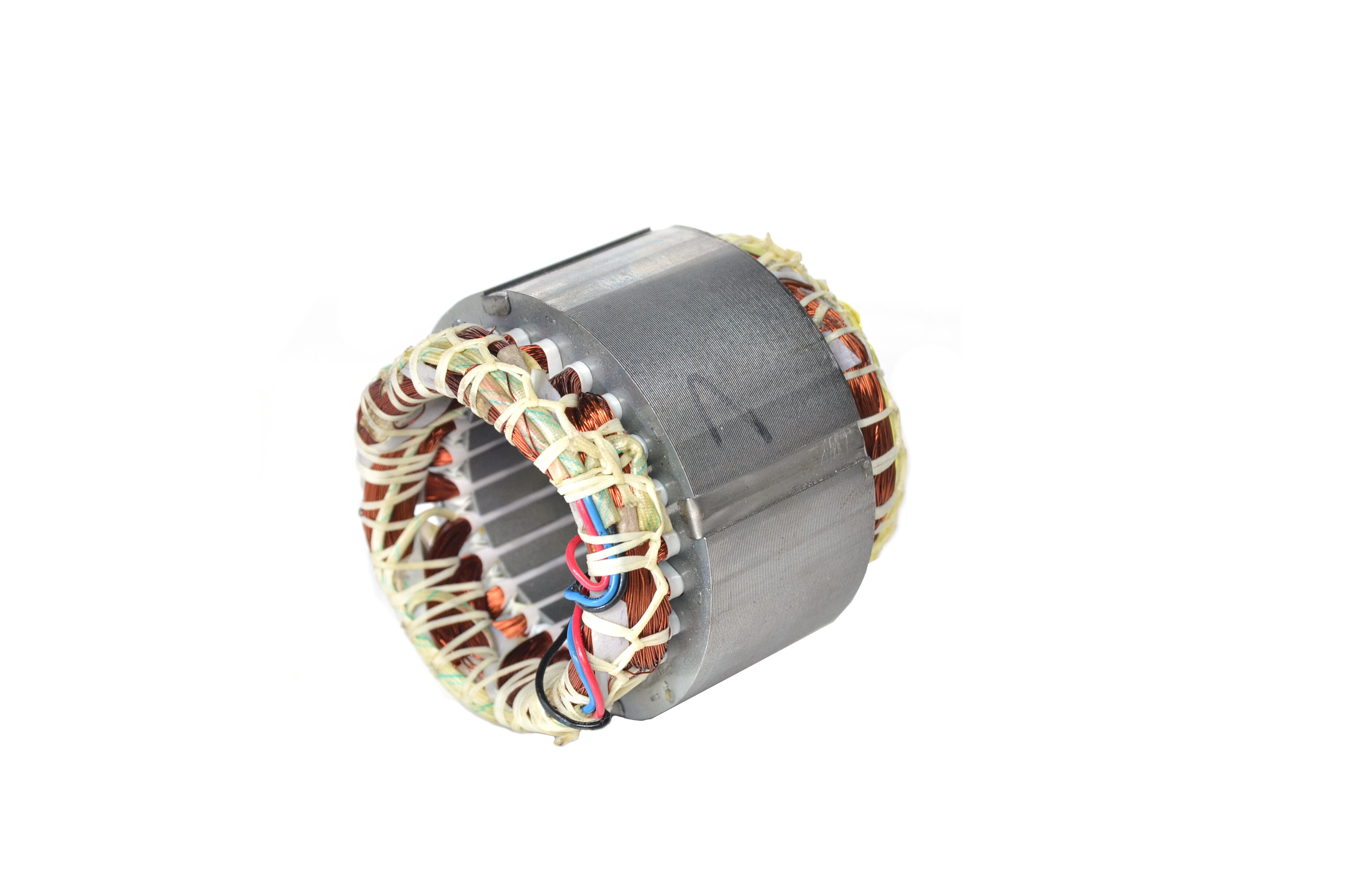

Name: Wound stator

Original: China
Wound stator from size 80 to size 160 to Aluminum housing IE3 electric motors









Test Equipment



 Full load test equipment

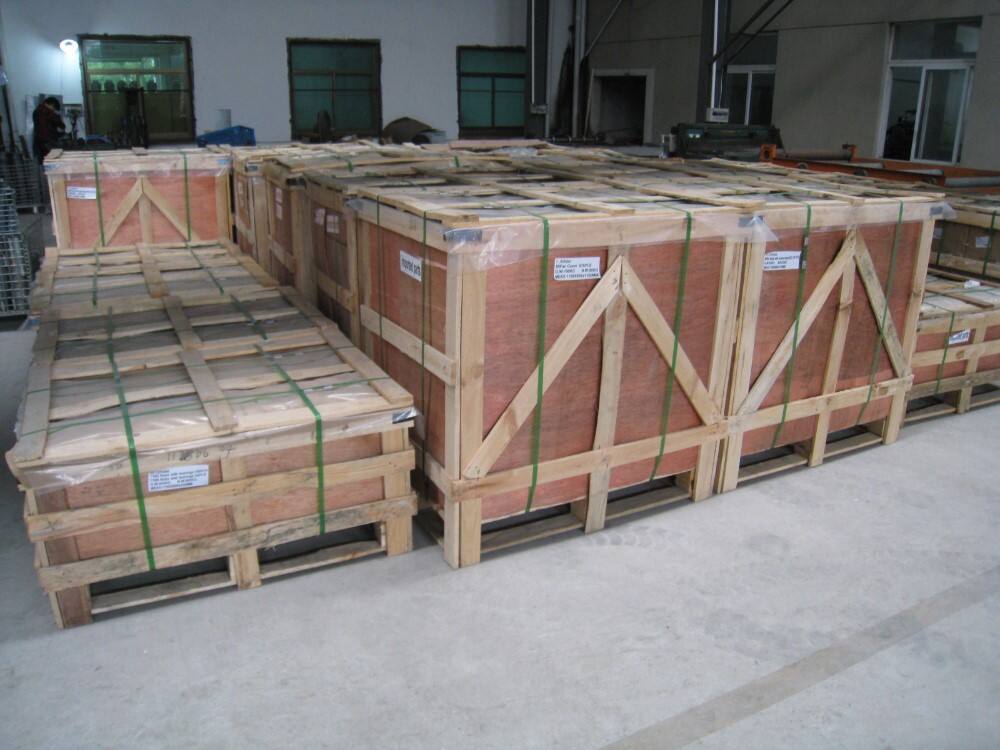

Packaging
Size	123 (L)  ×  456  (W)  × 789 (D)
Weight	500kgs
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack it according to customers special request

Our service

Pre-sale service	In-sale service	After-sale service
1st Let’s be honest with each other and make clear the situation of each customer first, then we can give best advice, because we’re over 30 years experience in electric motor   2nd I will give the details to each customer for reference, including the dimension, performance, quality and price level	1st We will tracking the production progress and quality, check the exact model and quantity one by one before delivering. 2nd Lowest sea freight cost and best service. We’re cooperating with our forwarders over 8 years, so we can get best price and service for our each customer	1st Tracking the shipment and inform the customer before the Arrival Date 2nd Check the goods together with our customers and tracking the quality during the use condition 3rd We will charge all questions if you buy from me
Aluminum housing electrical asynchronous induction motor

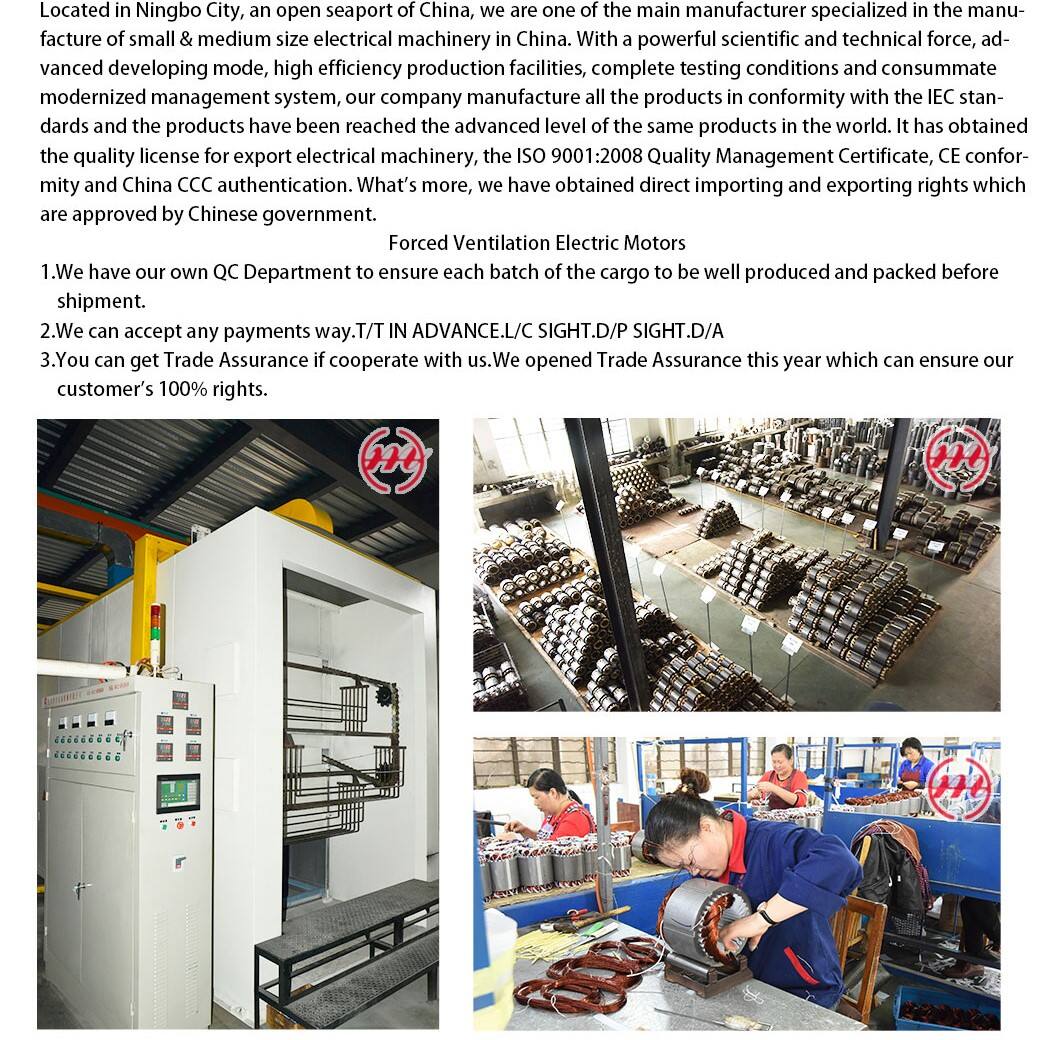

1. We have our own QC Department to ensure each batch of the cargo to be well produced and packed before shipment 2. We can accept any payments way. T/T IN ADVANCE. L/C SIGHT. D/P SIGHT. D/A 3. You can get Trade Assurance if cooperate with us. We opened Trade Assurance this year which can ensure our customer's 100%rights

Exhibition

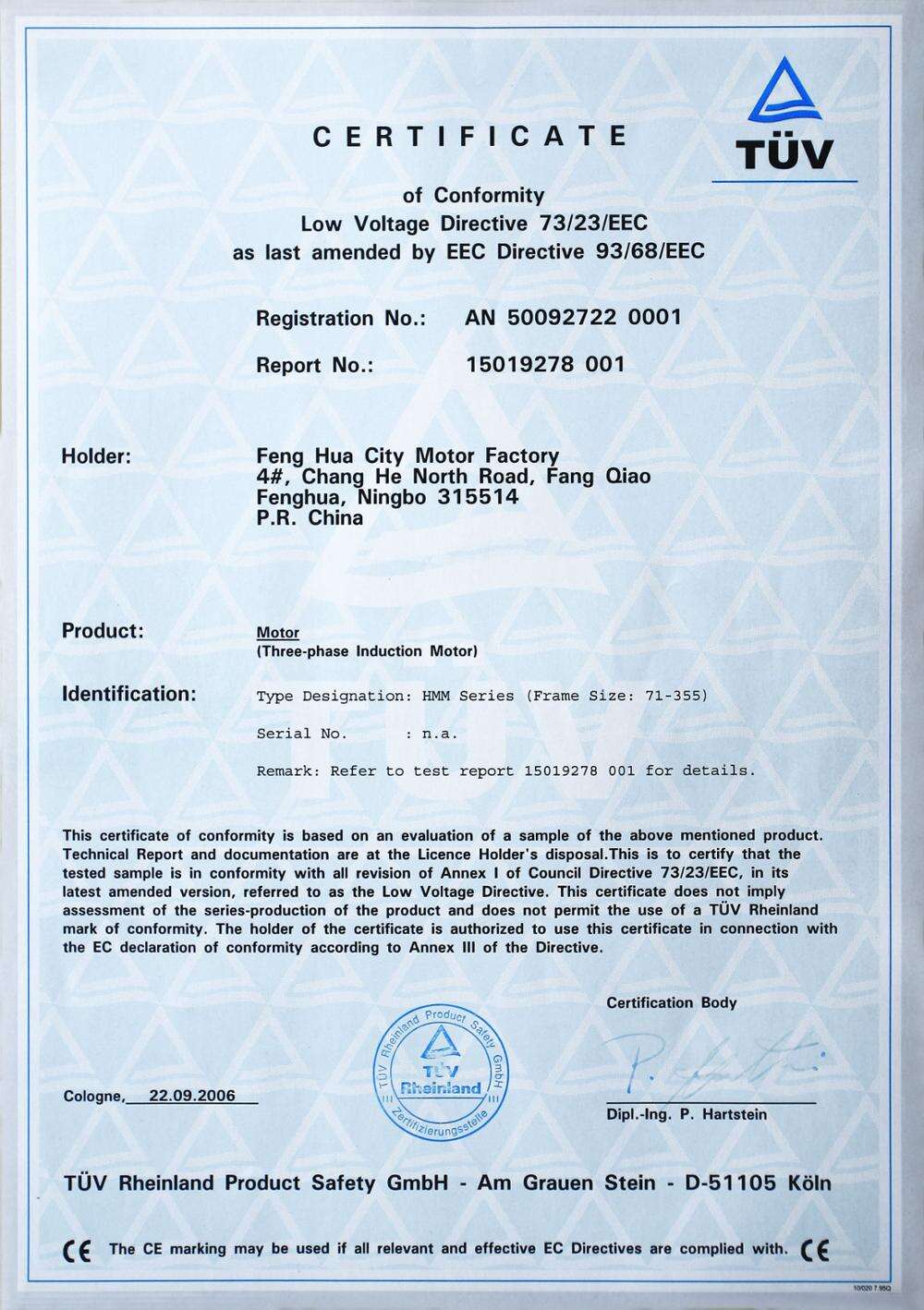

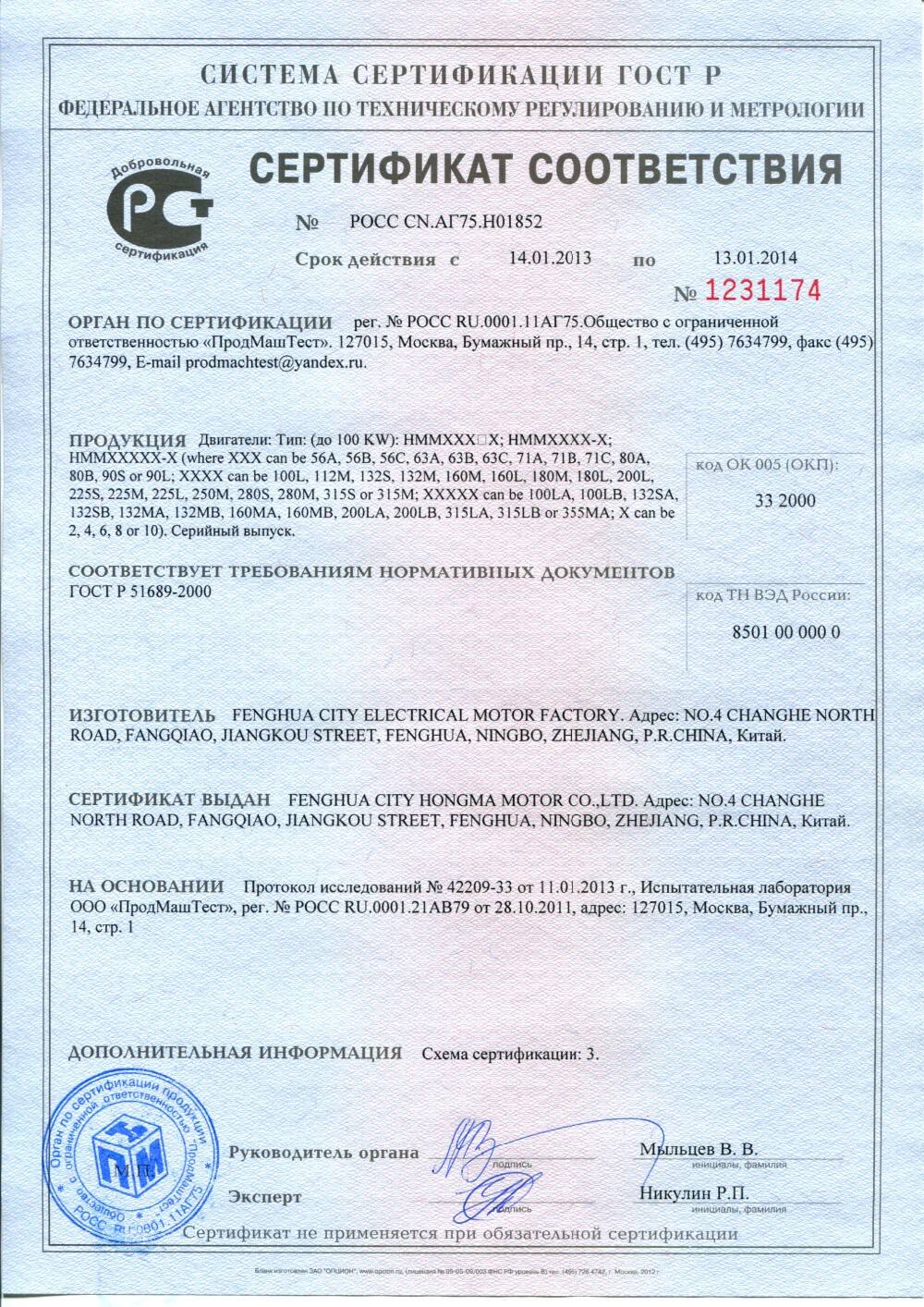

Certifications
